Powertrain Control Module Connector End View (C4)

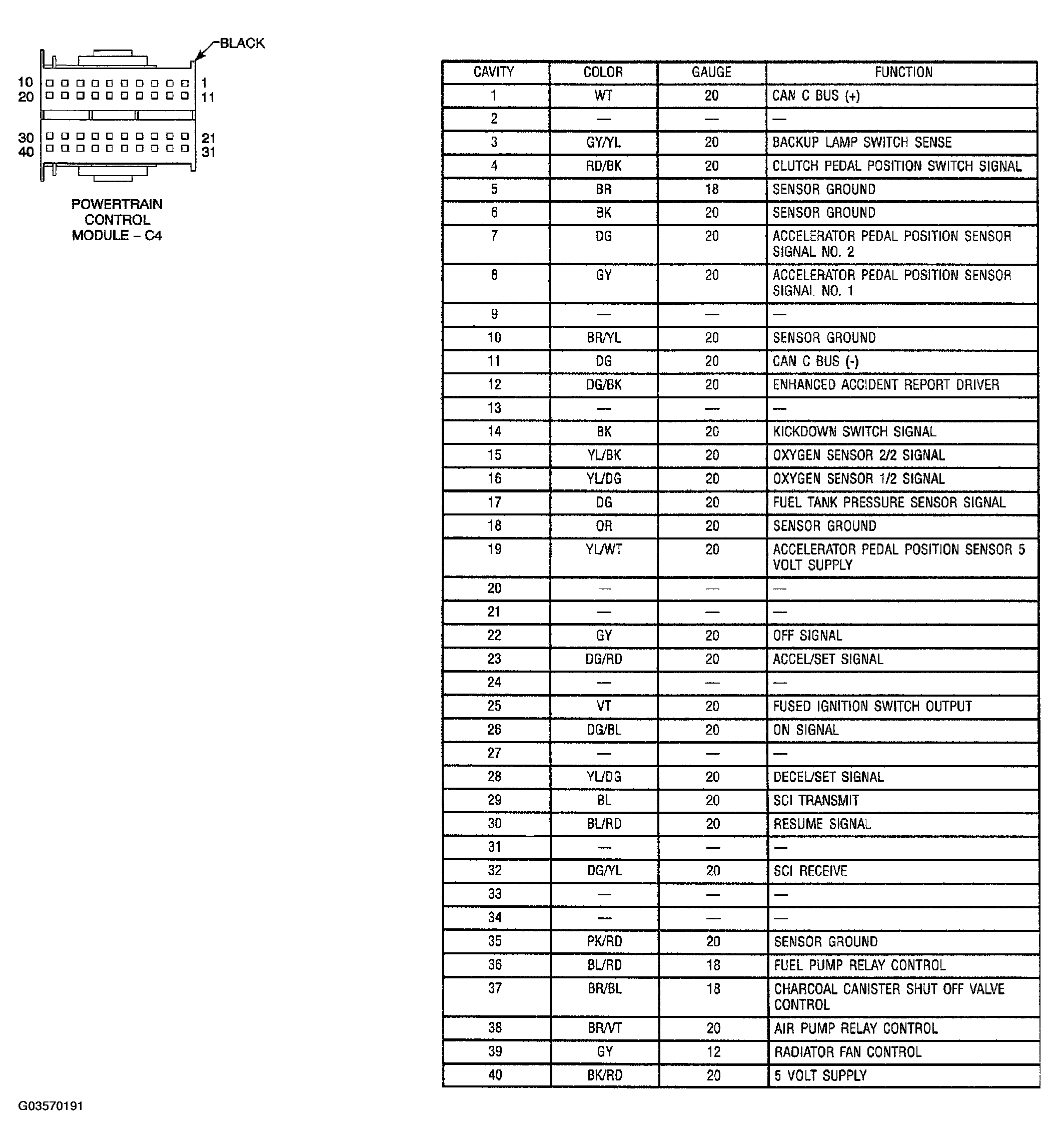

Fig 1: Powertrain Control Module Connector End View (C4)

G03570191

Courtesy of DAIMLERCHRYSLER CORP.
