Suspension System: Notes

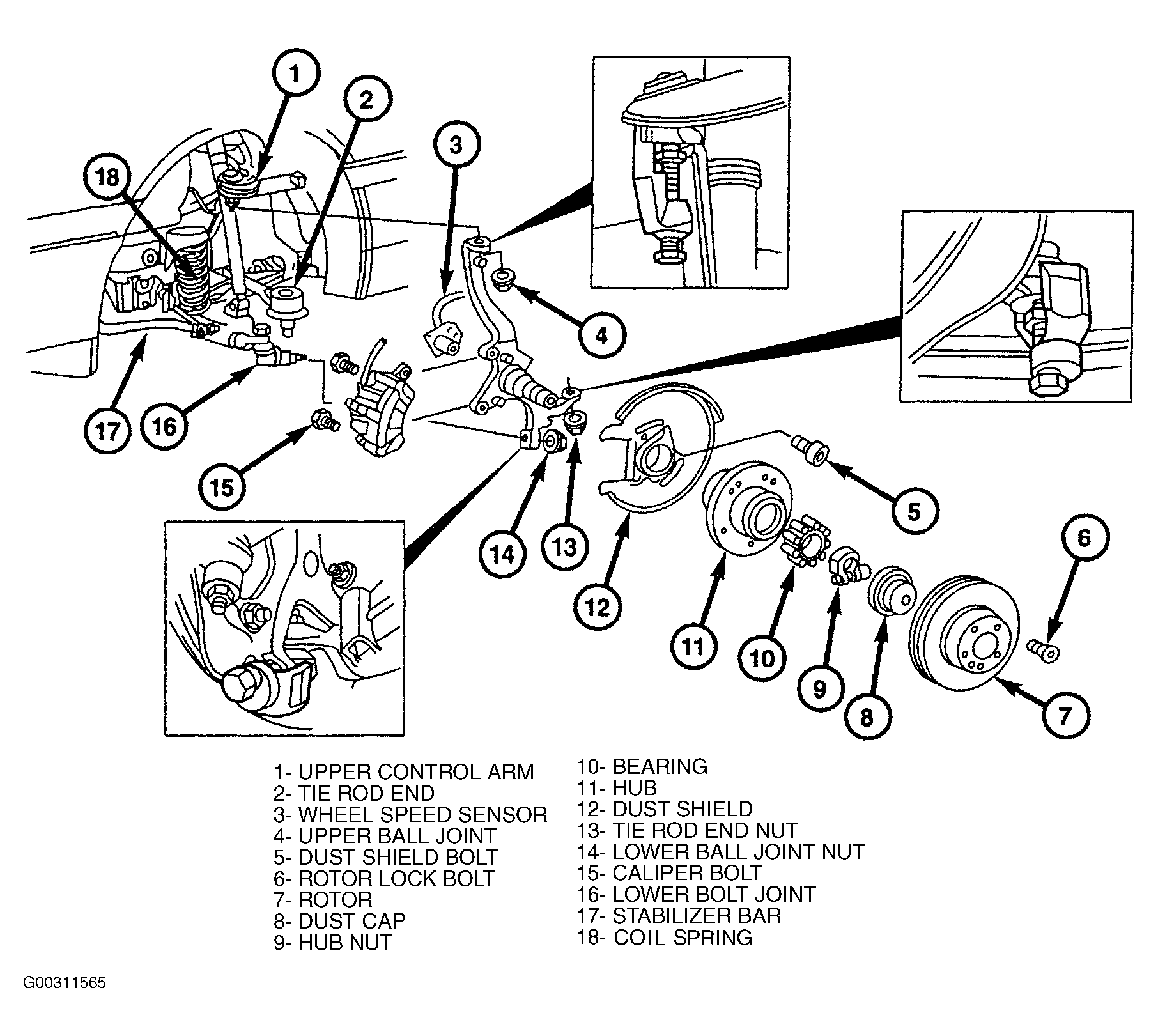

Independent double wishbone front suspension consists of coil springs, gas-charged shock absorbers, hubs and bearings, lower and upper ball joints, steering knuckles, a stabilizer/sway bar, and unequal length lower and upper control arms. See Figure .
