Power Lock Switch: Installation

  1. Align the power lock switch with the center console interior trim panel and press together until the locking tabs engage fully.

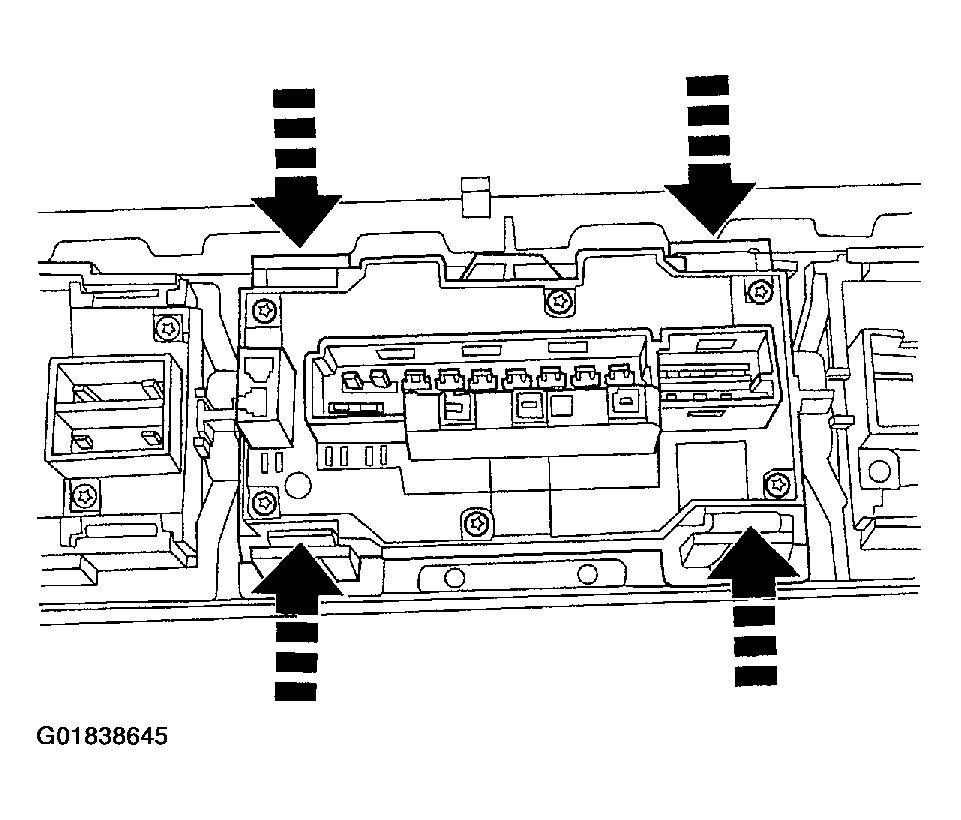

    Fig 1: Aligning Power Lock Switch With Center Console Interior Trim Panel
    G01838645Courtesy of DAIMLERCHRYSLER CORP.
  2. Align the outer gang of switches over the power lock switch and press together until the locking tabs engage fully.

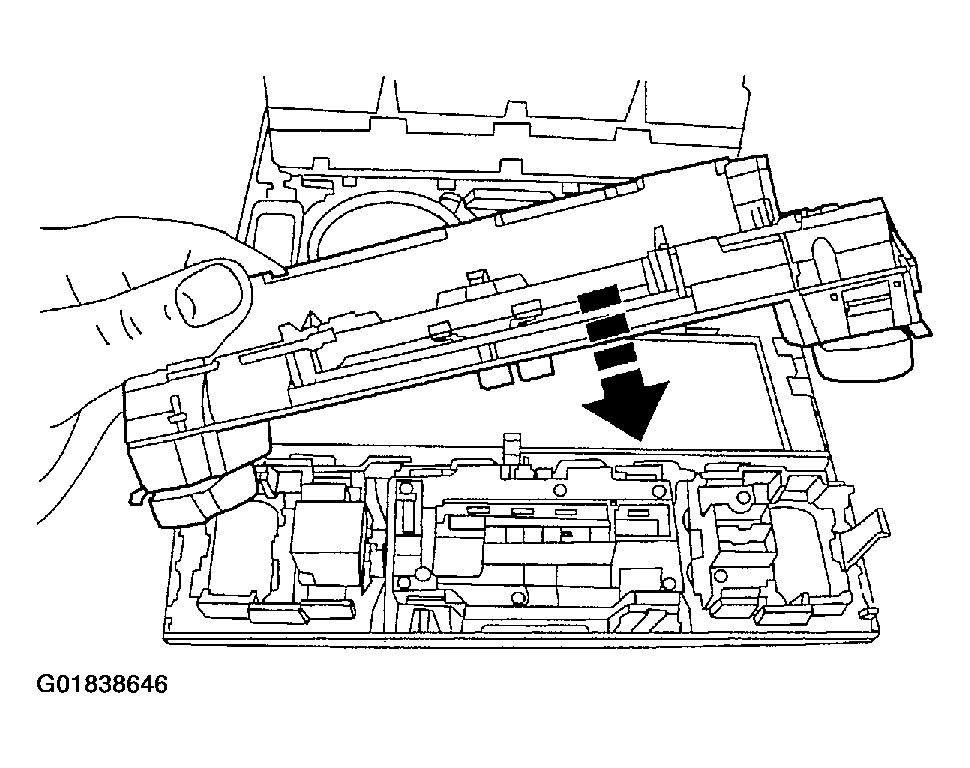

    Fig 2: Installing Power Lock Switch
    G01838646Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the power lock switch harness connectors.
  4. Install the trim panel on the center console. See BODY .
  5. Connect the negative battery cable.
