Sentry Key Remote Entry Module: Installation: SKREEM

  1. Install the SKREEM to the base plate.
  2. Connect the 18-pin harness connector and the 2-pin CAN bus harness connector (1) to the SKREEM.

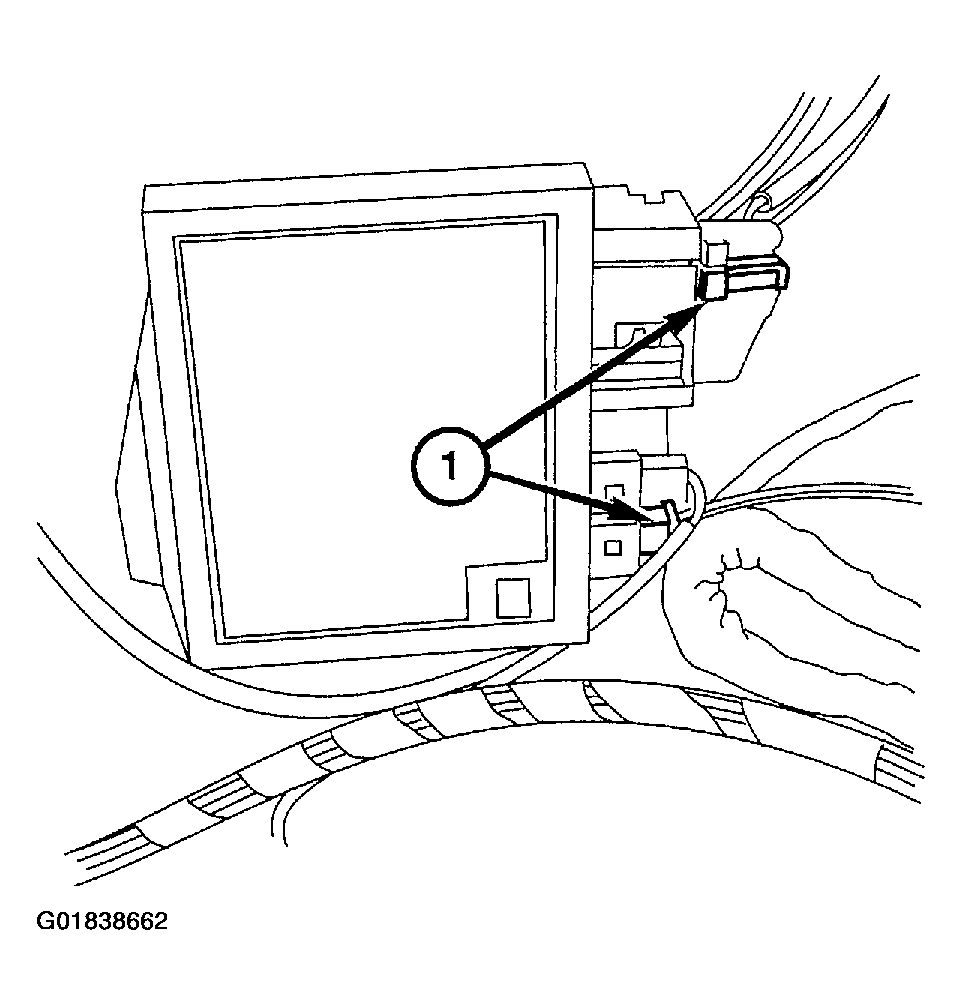

    Fig 1: Connecting 18-Pin Harness Connector & 2-Pin CAN Bus Harness Connector To SKREEM
    G01838662Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the 2-pin harness connector for the sentry key antenna ring.
  4. Install the instrument cluster. See INSTRUMENT CLUSTER article.
  5. Connect the negative battery cable.
