Map Sensor: Description

The Manifold Absolute Pressure (MAP) sensor, is mounted to the front of the engine on the right side next to the air pump.

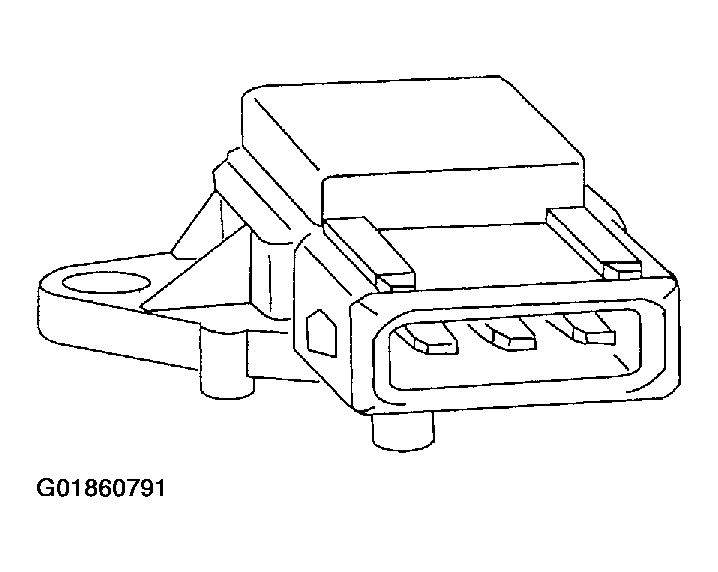

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor

Courtesy of DAIMLERCHRYSLER CORP.
