Powertrain Control Module Connector End View (C3)

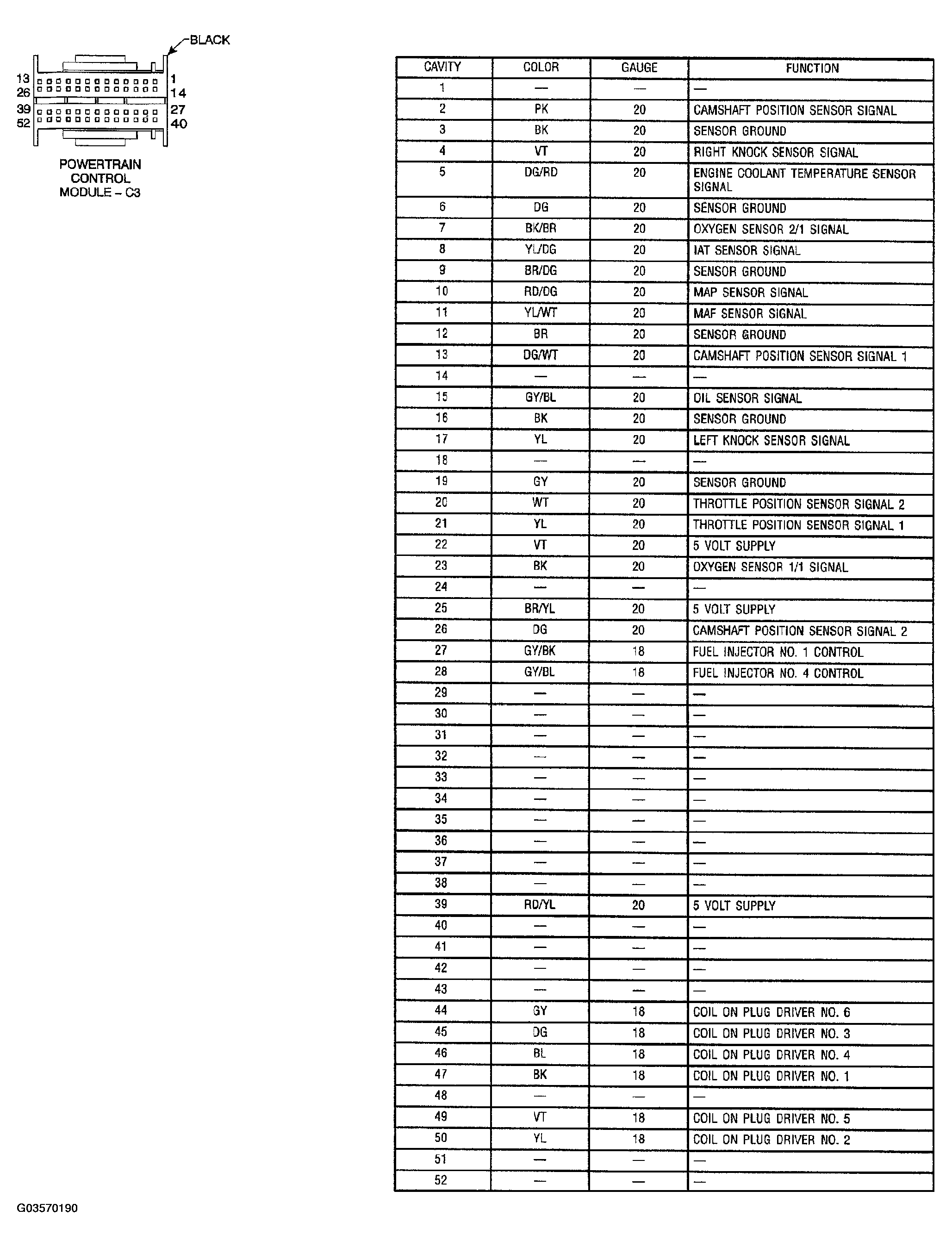

Fig 1: Powertrain Control Module Connector End View (C3)

G03570190

Courtesy of DAIMLERCHRYSLER CORP.
