Clutch Disc: Installation

If the clutch cover is to be reused adjustment is required. Use an old release bearing or a length of pipe to release diaphragm pressure. Set the adjusting ring to the mark as shown in illustration.

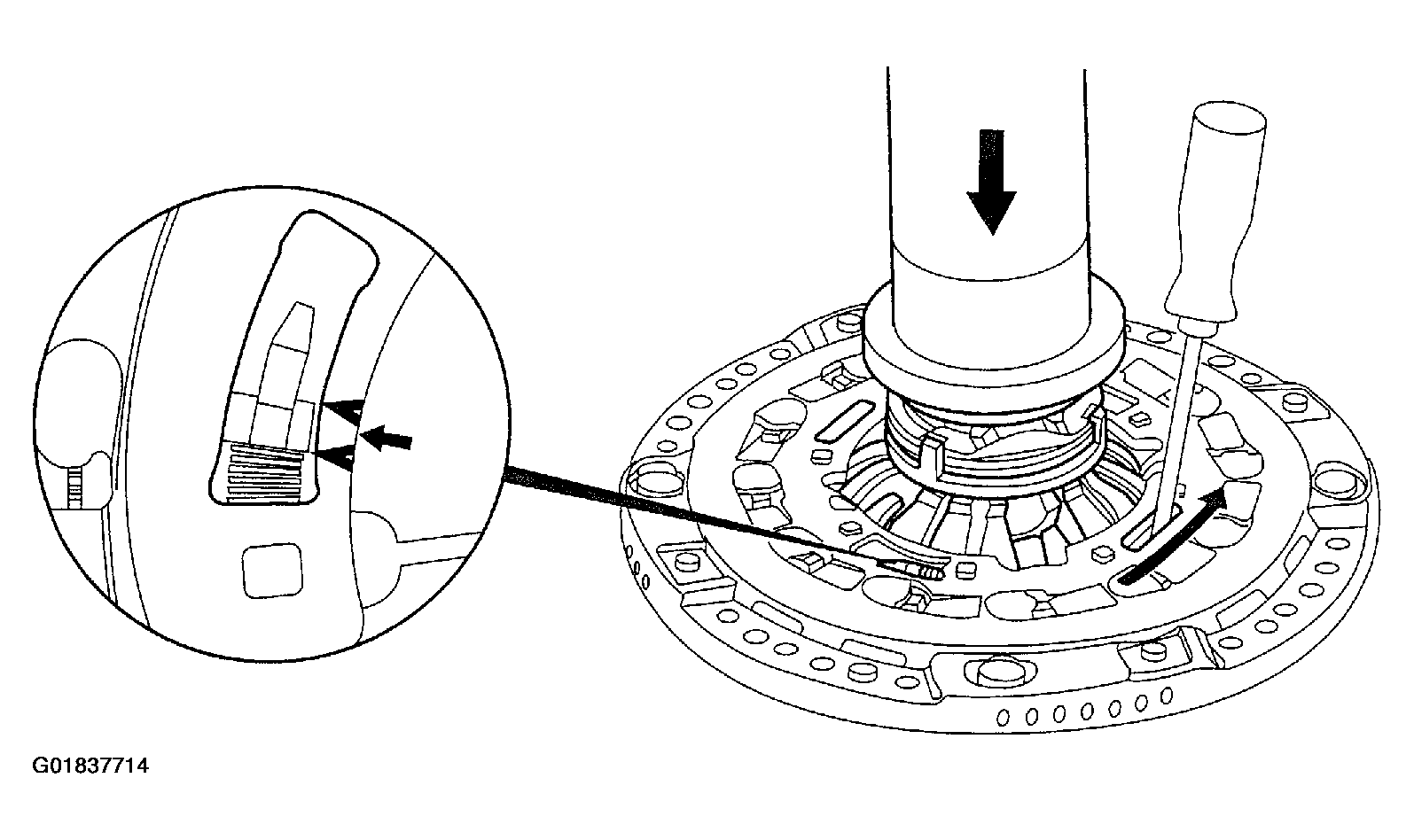

Fig 1: Setting Adjusting Ring
Courtesy of DAIMLERCHRYSLER CORP.
Position the clutch disc and clutch cover on the flywheel.
Loosely install the clutch cover bolts (1).

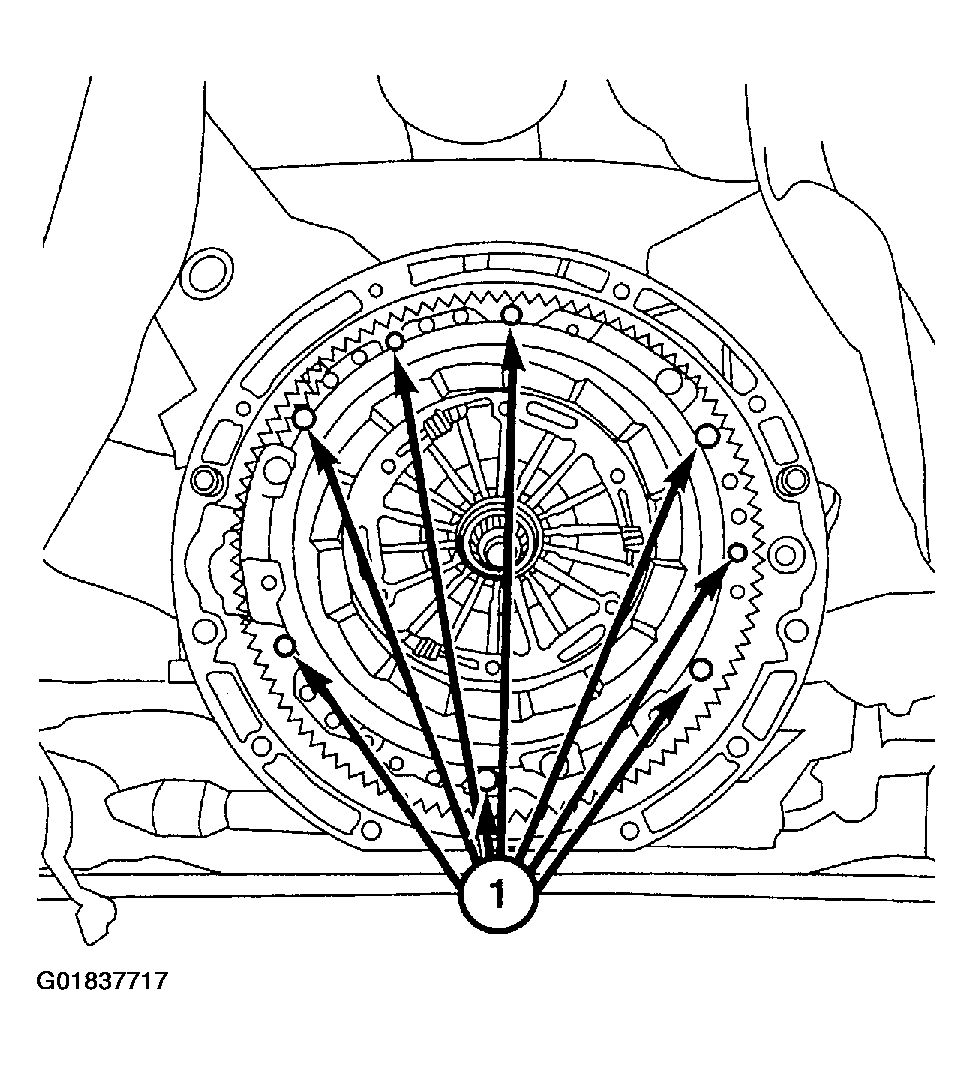

Fig 2: Installing Clutch Cover Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Install a universal clutch alignment tool (1).
Align the clutch disc.

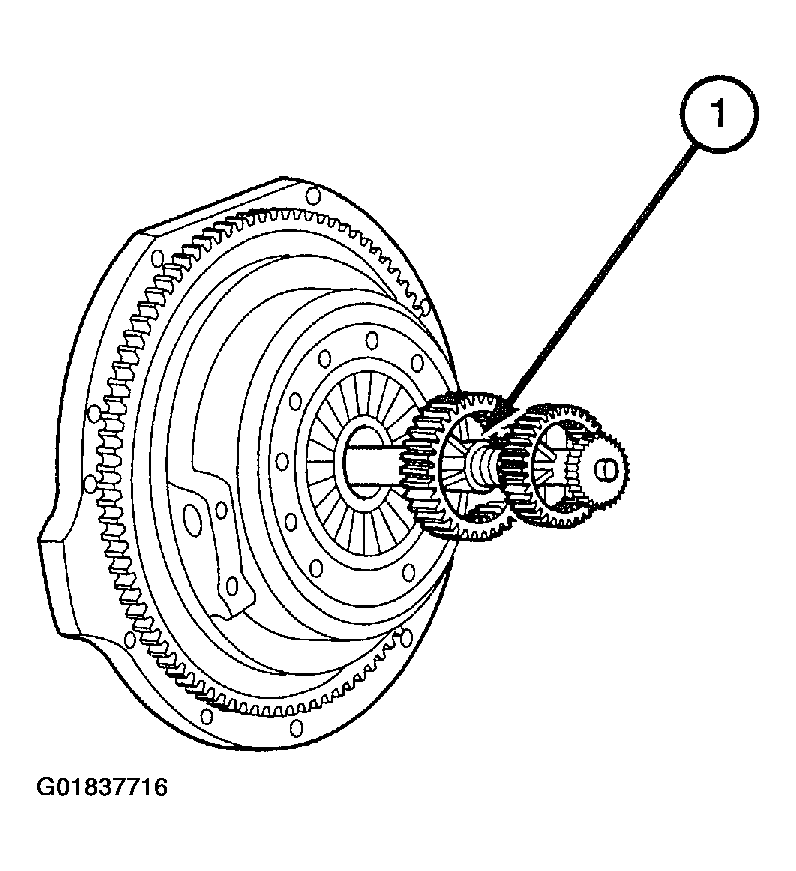

Fig 3: Installing Clutch Alignment Tool
Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Tighten the clutch cover bolts 1 to 1 1/2 turns at a time.

Tighten the clutch cover bolts (1) until all bolts are fully seated. Tighten the bolts to 25 N.m (18 ft. lbs.).

Fig 4: Tightening Clutch Cover Bolts

Courtesy of DAIMLERCHRYSLER CORP.

Remove the clutch alignment tool (1).

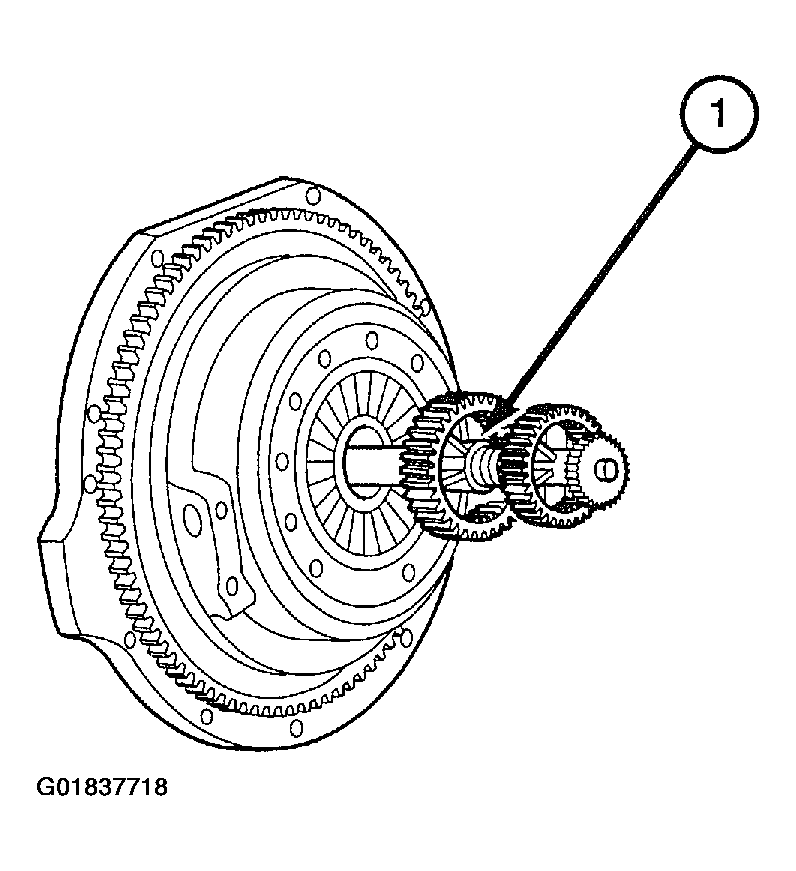

Fig 5: Removing Clutch Alignment Tool
Courtesy of DAIMLERCHRYSLER CORP.
Install the transmission. See MANUAL - REMOVAL & INSTALLATION article.
