Repair and Diagnosis: Transmission: Clutch: Flywheel: Removal

  1. Remove the clutch. See CLUTCH .
  2. Install Special Tool 9102 (1) Flywheel. Locking Tool.

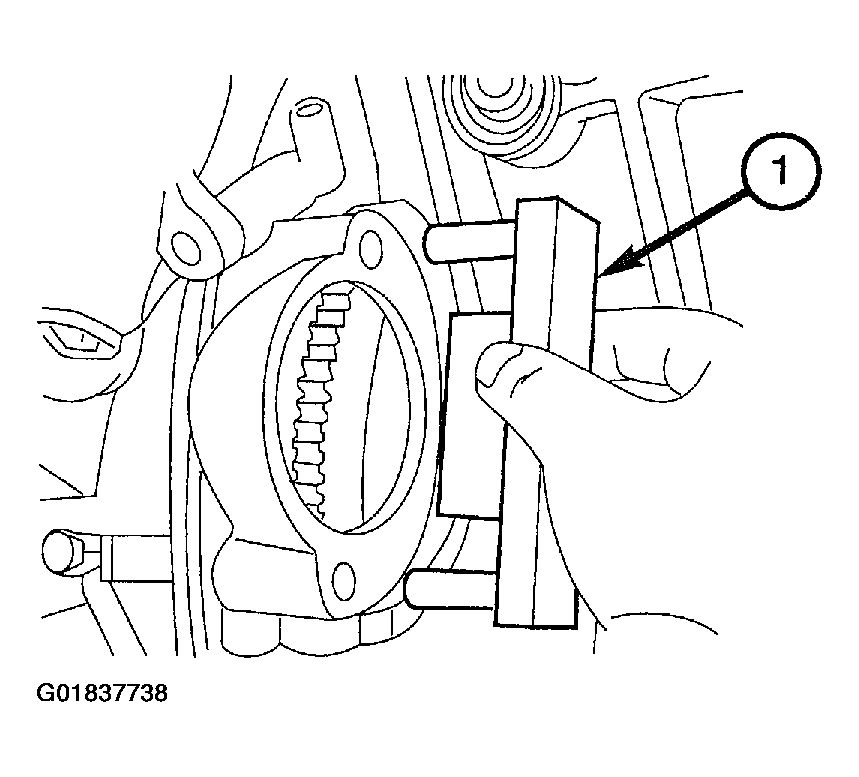

    Fig 1: Installing Special Tool 9102 (Flywheel Locking Tool)
    G01837738Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove and discard the flywheel bolts (1).
    Fig 2: Removing Flywheel Bolts, Spacer & Flywheel
    G01837739Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove the flywheel spacer (2) and the flywheel (3).
  5. Inspect the flywheel for wear or cracking.
  6. Inspect the starter ring gear for wear and missing teeth.
