Home >> Chrysler >> 2004 >> Intrepid SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Multi-Function Switch Connector End View

Multi-Function Switch Connector End View

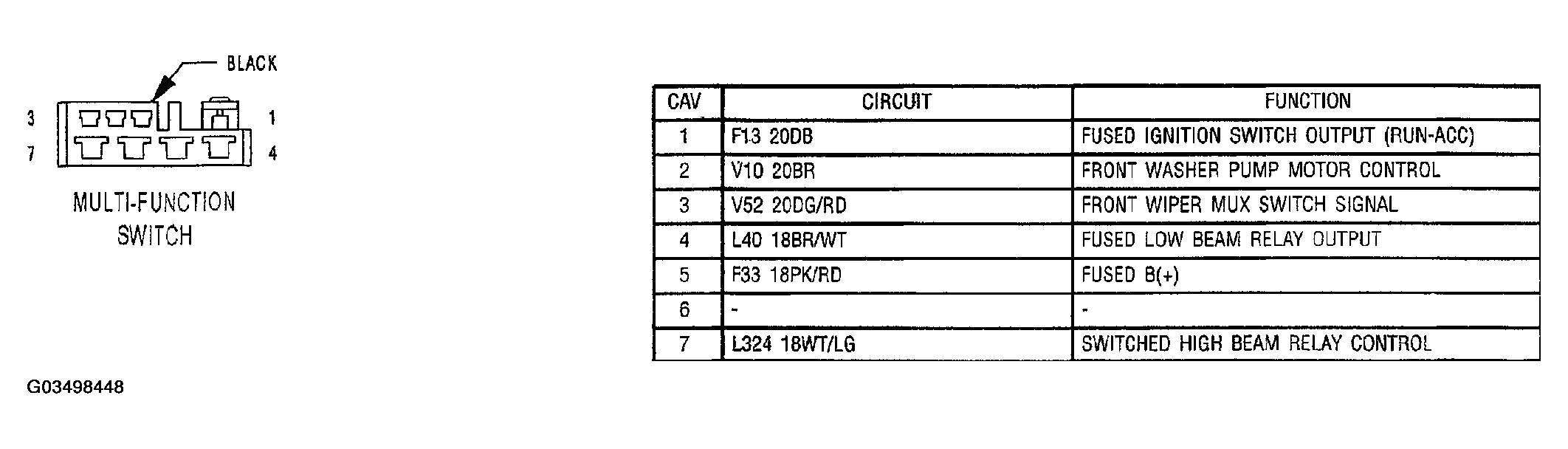

Fig 1: Multifunction Switch Connector End View

G03498448

Courtesy of DAIMLERCHRYSLER CORP.
