Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis >> Body & Frame >> Seats >> Power Seat System >> Memory Set Switch >> Description

Memory Set Switch: Description

The memory set/selector switch is mounted on the drivers seat cushion side shield (Fig 1 ), within easy reach of the driver. This switch is used to set new and recall preset memory positions of seat, seat recliner, and the side view mirrors.

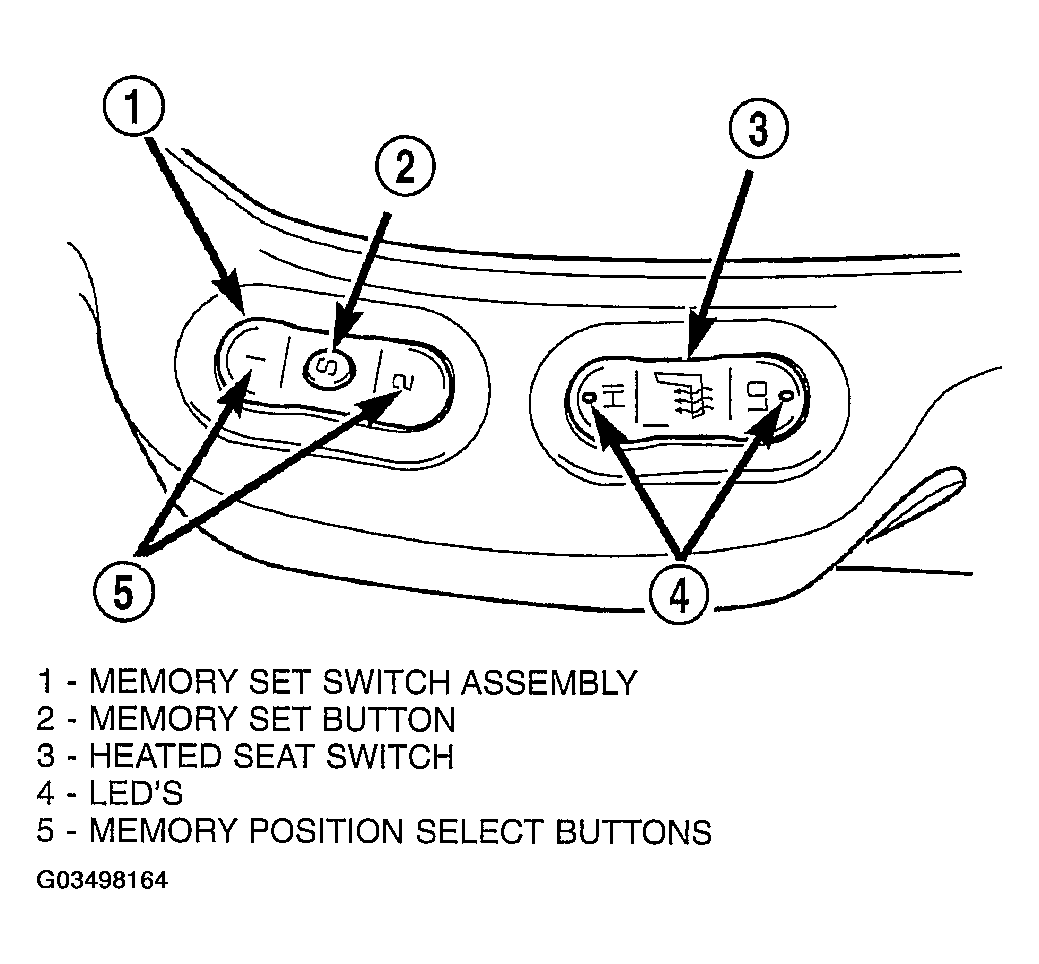

Fig 1: Memory and Heated Seat Switches
G03498164Courtesy of DAIMLERCHRYSLER CORP.

The memory set switch cannot be repaired or adjusted. If one switch is damaged or faulty, the entire memory set switch must be replaced.
