Satellite Receiver Module C1 Connector End View

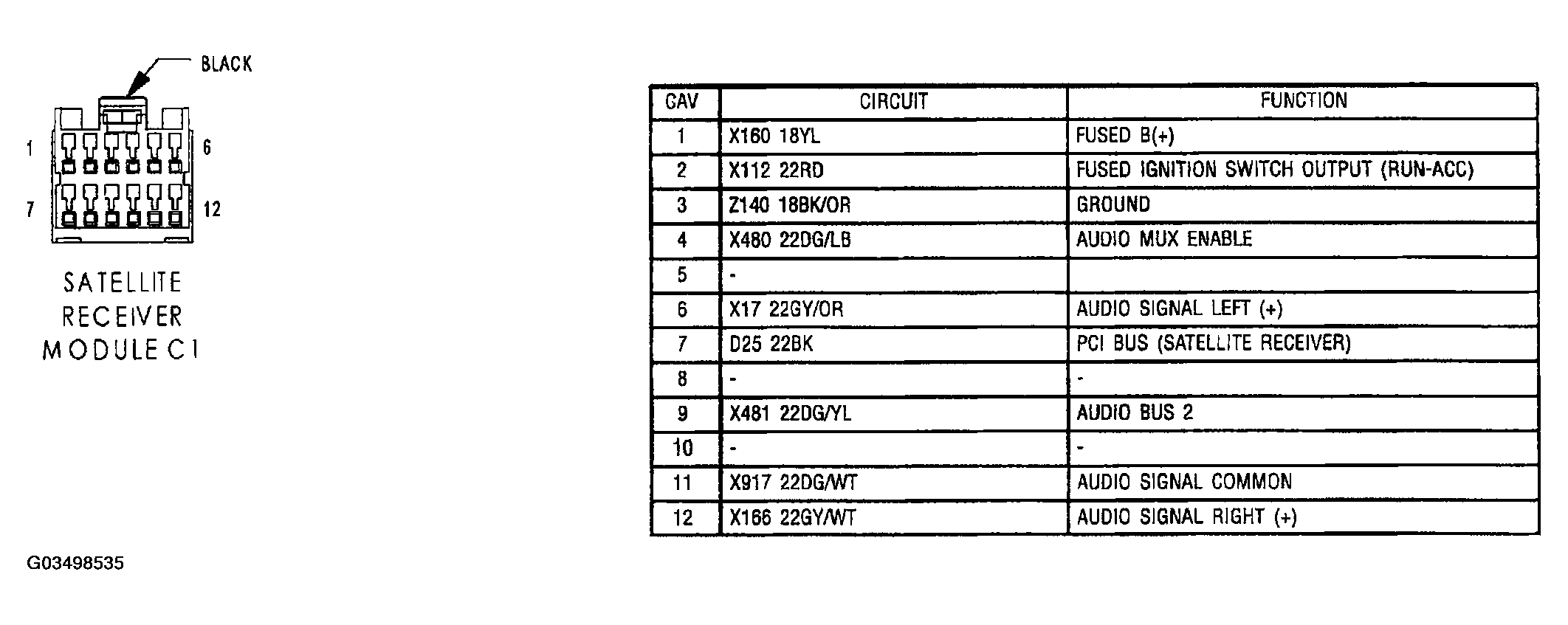

Fig 1: Satellite Receiver Module Connector End View (C1)

G03498535

Courtesy of DAIMLERCHRYSLER CORP.
