Dash Silencer: Installation

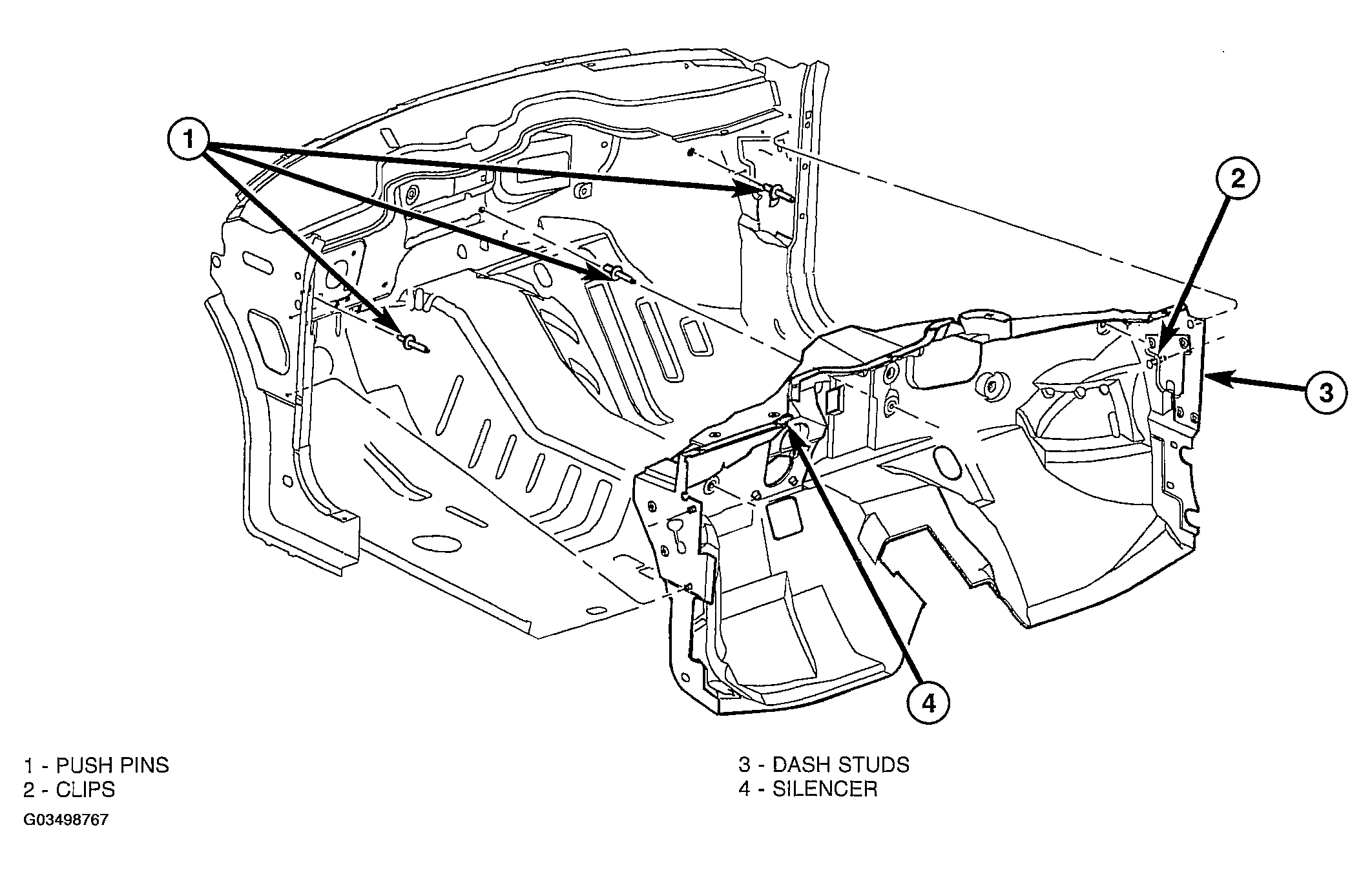

  1. Position silencer to dash panel and cowl panels (Figure ).
  2. Push retainers over previously installed studs on the dash panel.
  3. Attach silencer with push pins to the side cowl and clips to the top cowl/dash weld flange.
  4. Install all other parts removed (Refer to CROSS CAR BEAM ), (Refer to ACCELERATOR PEDAL ), (Refer to BRAKE PEDAL ), (Refer to COLUMN ) (Refer to HVAC HOUSING ), (Refer to INSTRUMENT PANEL ASSEMBLY  ) and etc.
