Instrument Panel Center Bezel: Installation

  1. Connect wiring connectors to HVAC controls, cigar lighter/auxiliary power outlet and traction control switch (if equipped).

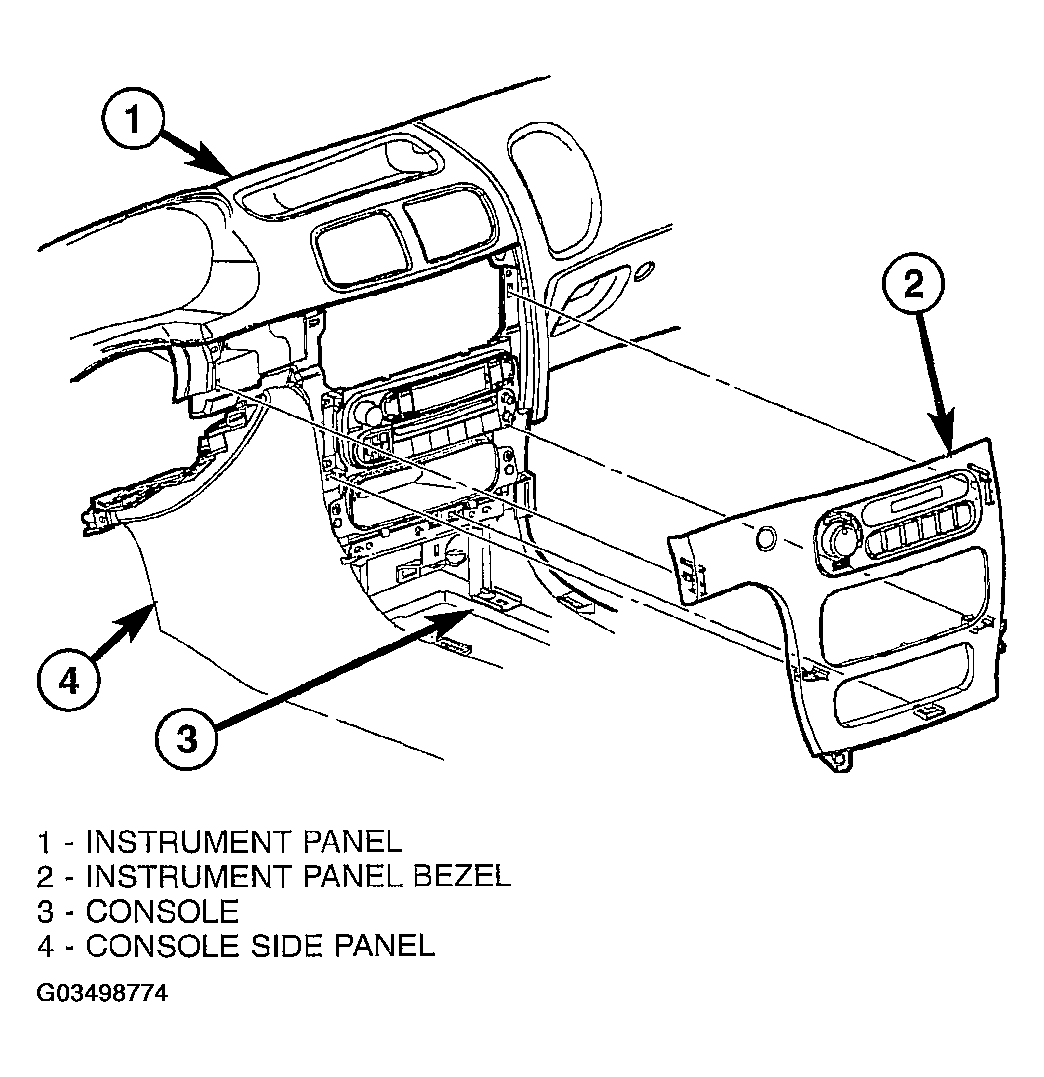

  2. Place the instrument panel center trim bezel into position and firmly snap into place (Figure ).
  3. Install the ash receiver (if equipped).
  4. Connect the negative battery cable remote terminal to the remote battery post (Figure ).
