Idle Air Control Motor: Description

The idle air control motor (IAC) attaches to the throttle body (Fig 1). It is a liner solenoid valve.

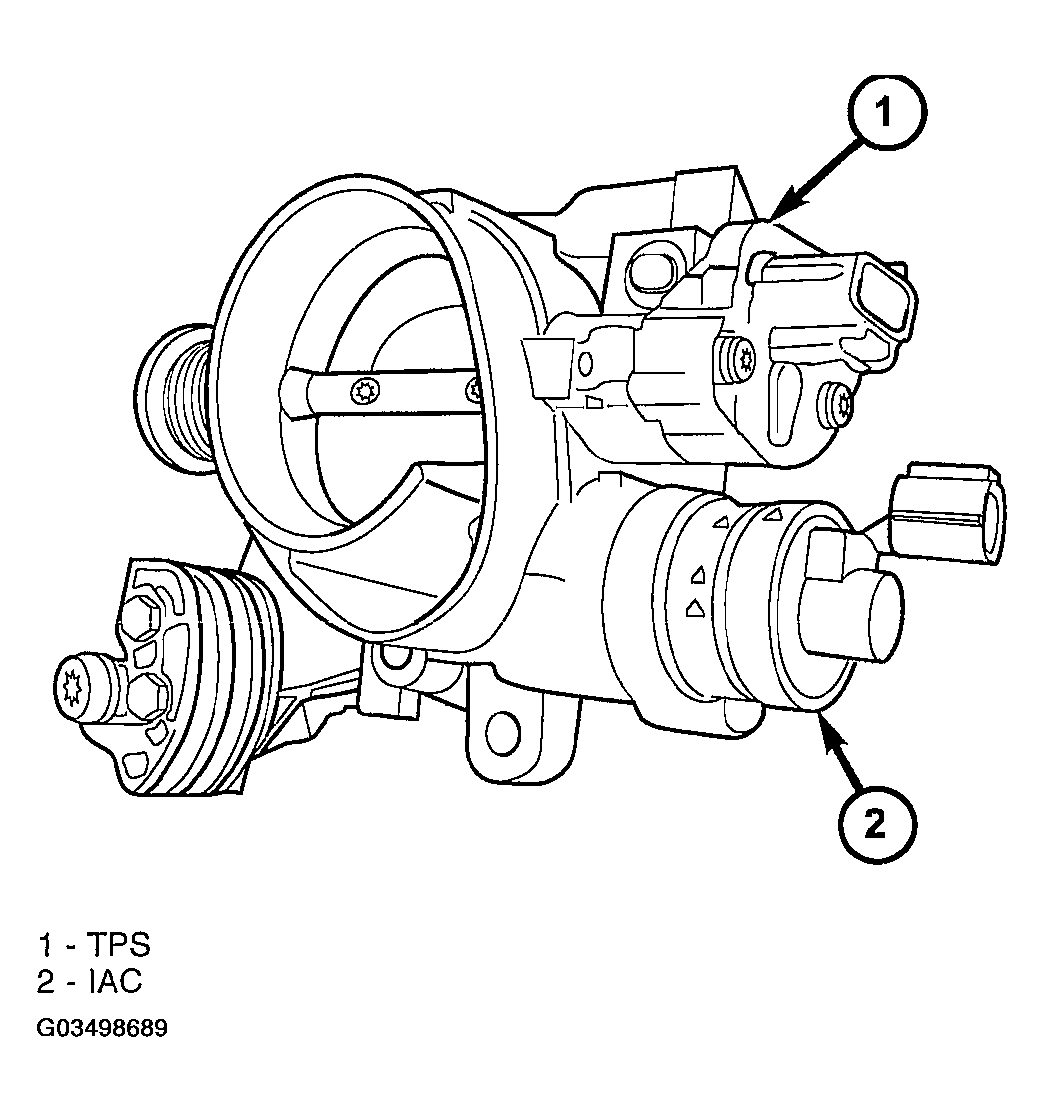

Fig 1: TPS & Idle Air Control Valve
G03498689Courtesy of DAIMLERCHRYSLER CORP.
