Home >> Chrysler >> 2004 >> PT Cruiser Base, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Speed Control Switch Connector End View

Speed Control Switch Connector End View

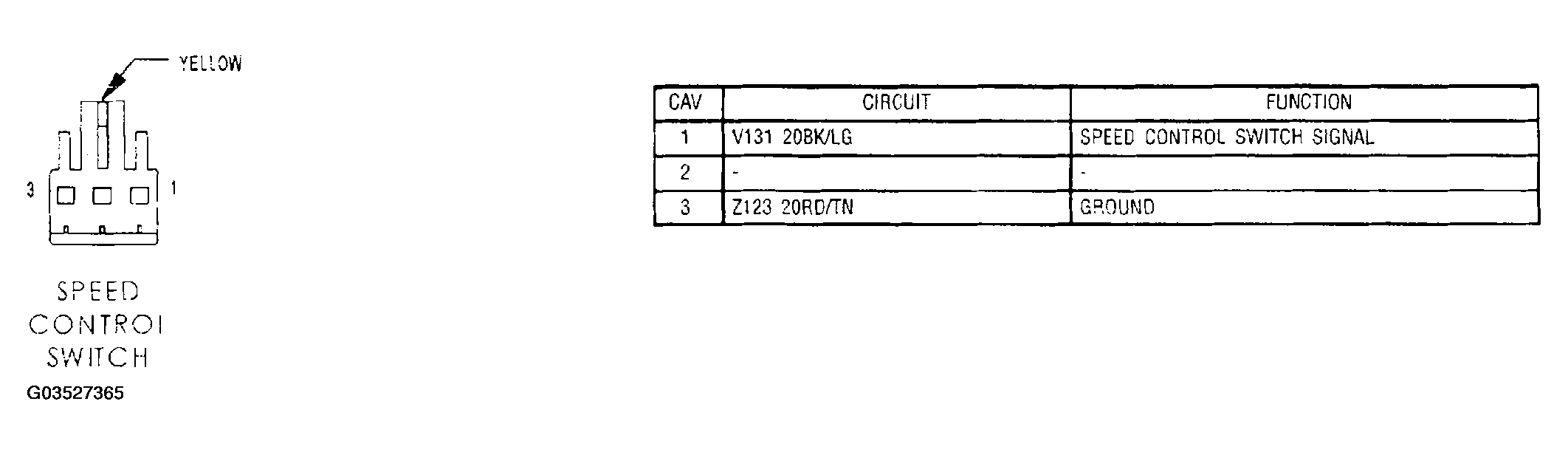

Fig 1: Speed Control Switch Connector End View

G03527365

Courtesy of DAIMLERCHRYSLER CORP.
