Home >> Chrysler >> 2004 >> PT Cruiser Base, Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System & Starting System >> Charging >> Specifications >> Torque

Charging System & Starting System: Charging: Specifications: Torque

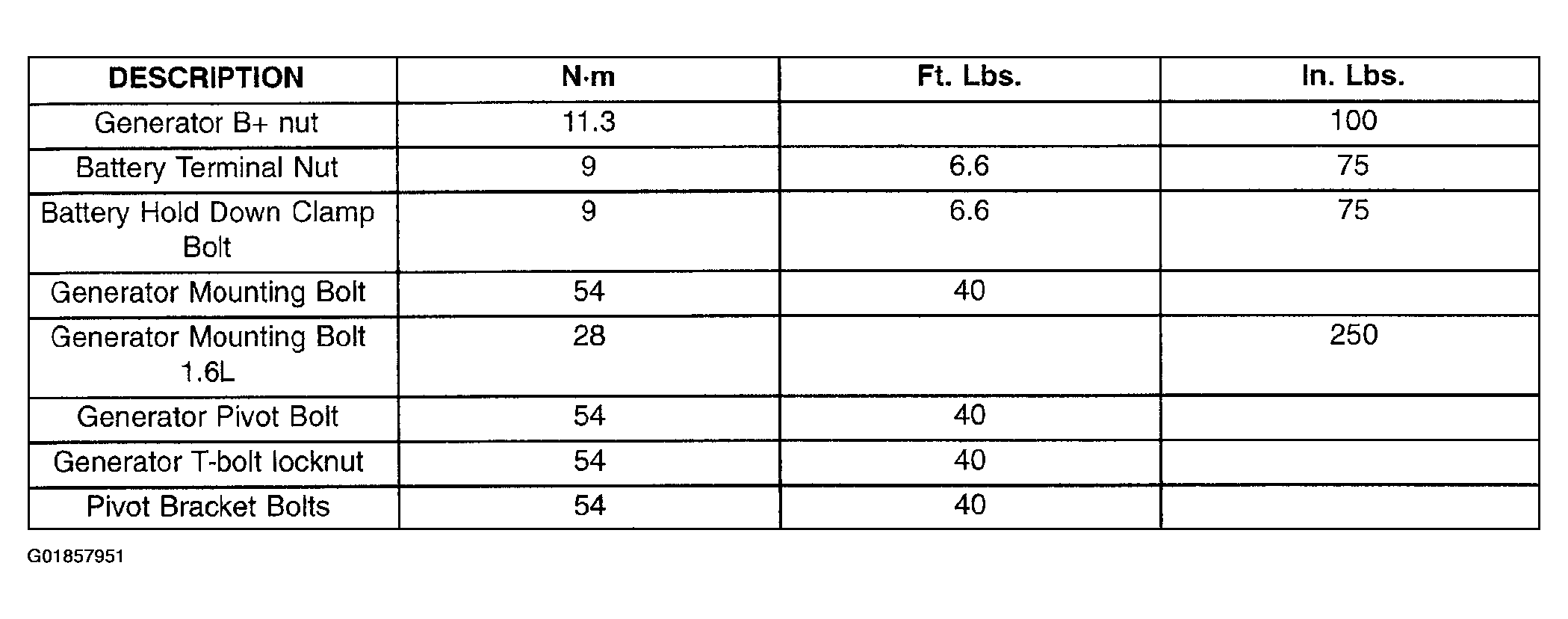

Fig 1: Fastener Tightening Torque Specifications Table

G01857951

Courtesy of DAIMLERCHRYSLER CORP.
