Powertrain And Skim

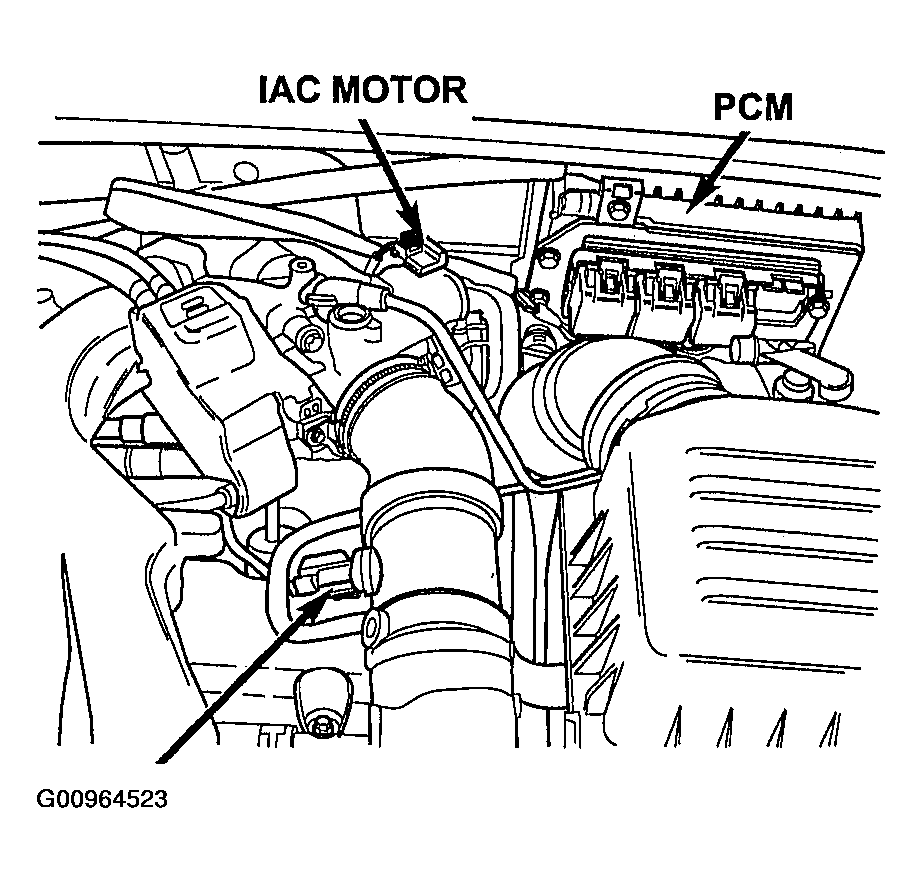

Fig 1: Locating PCM & IAC Motor

G00964523

Courtesy of DAIMLERCHRYSLER CORP.

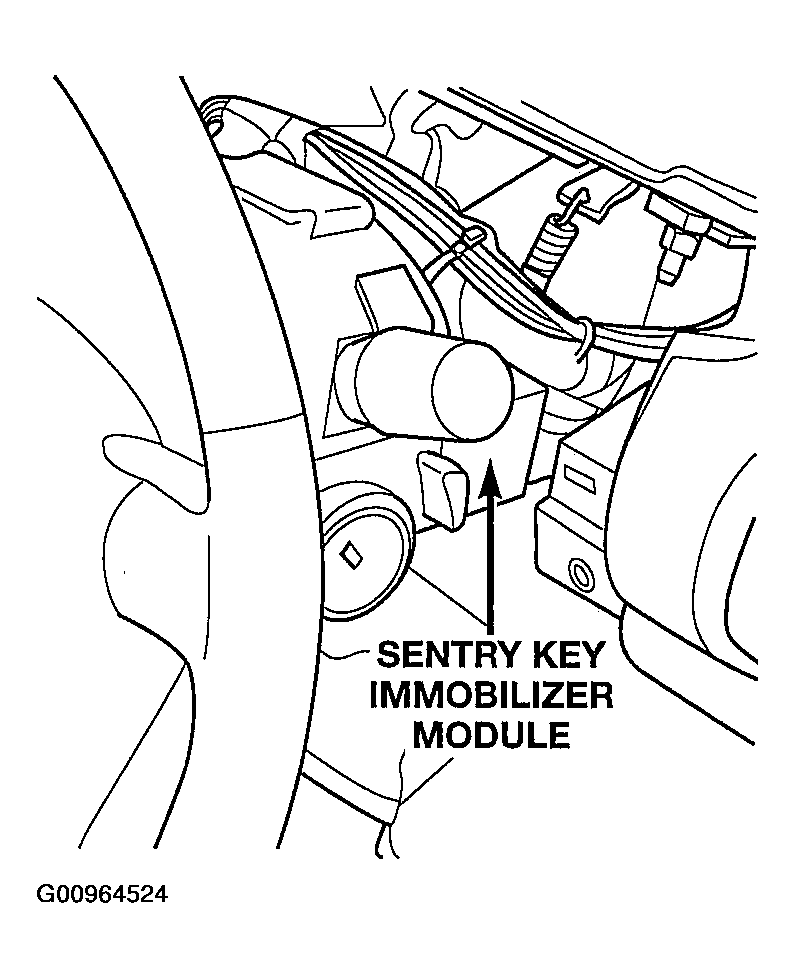

Fig 2: Locating Sentry Key Immobilizer Module

G00964524

Courtesy of DAIMLERCHRYSLER CORP.
