Component Locations: Sensors

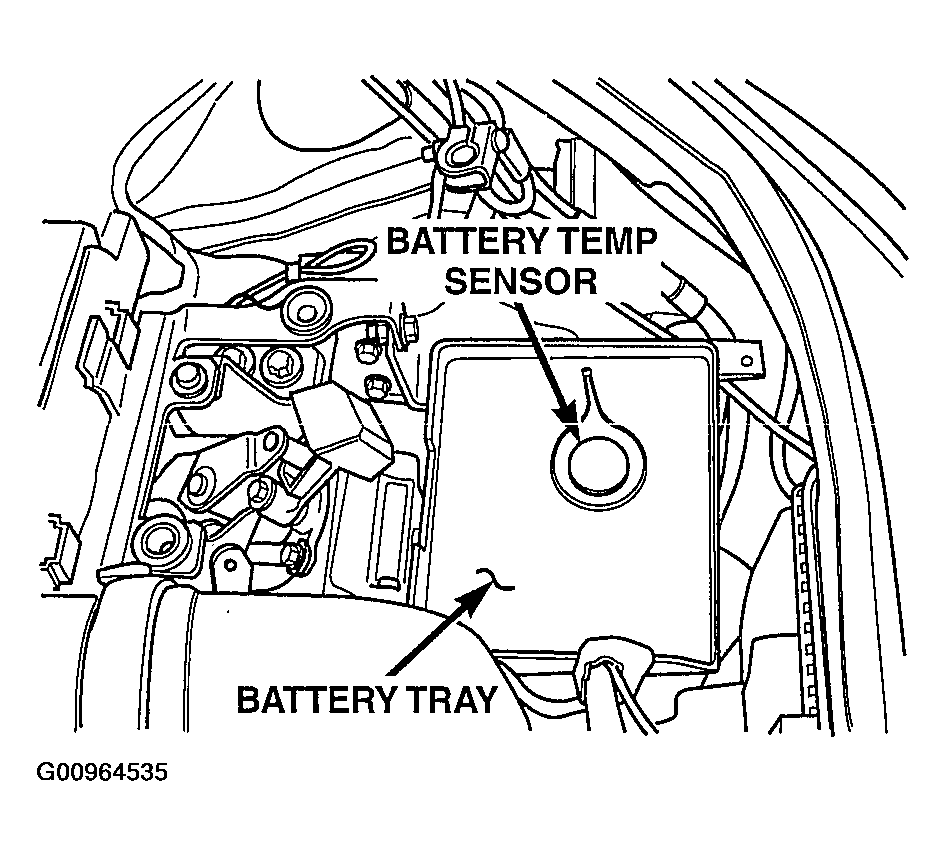

Fig 1: Locating Battery Temp Sensor
G00964535Courtesy of DAIMLERCHRYSLER CORP.

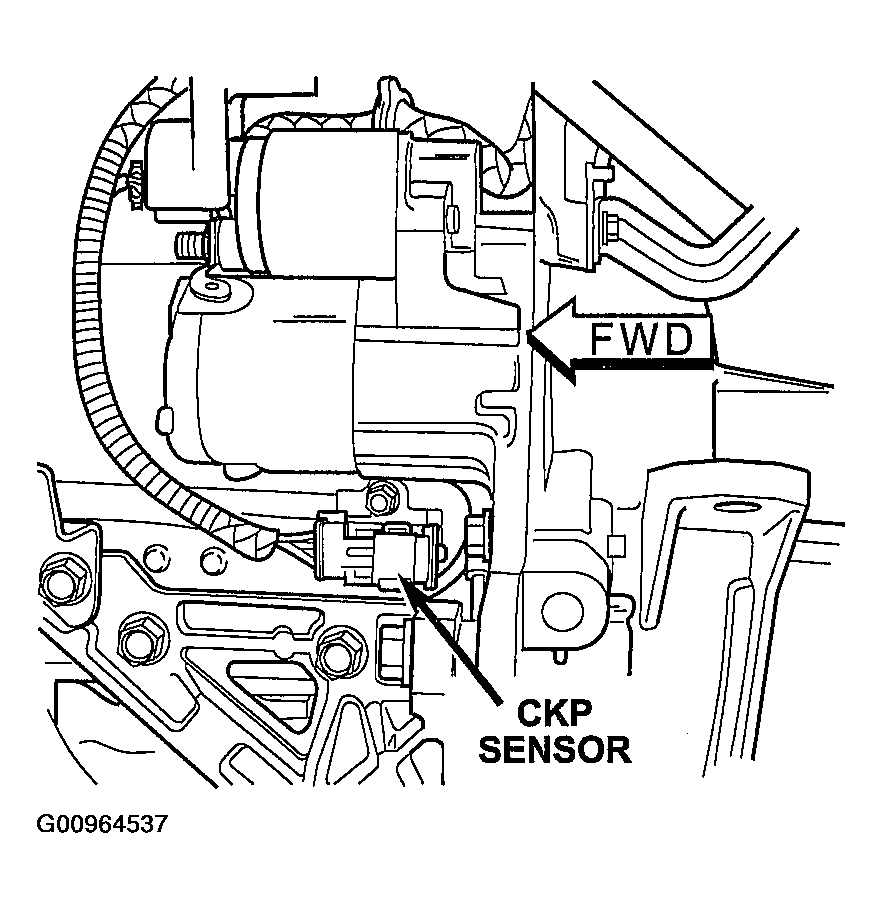

Fig 2: Locating CKP Sensor
G00964537Courtesy of DAIMLERCHRYSLER CORP.

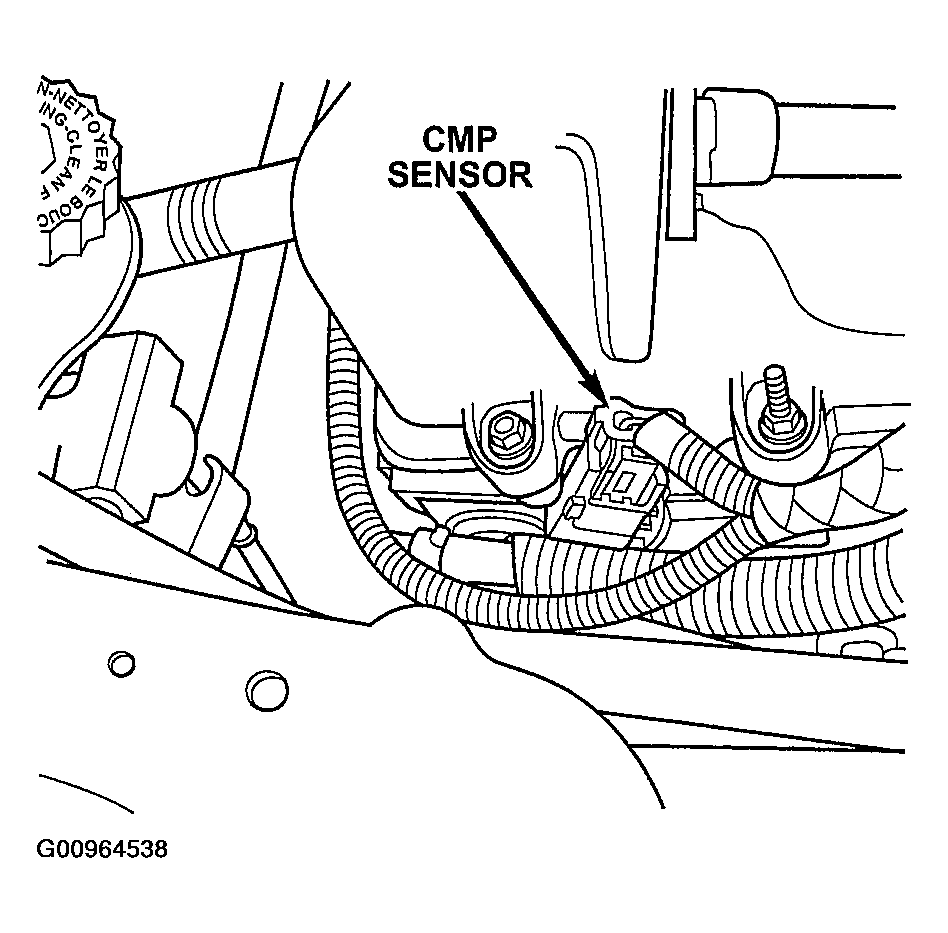

Fig 3: Locating CMP Sensor
G00964538Courtesy of DAIMLERCHRYSLER CORP.

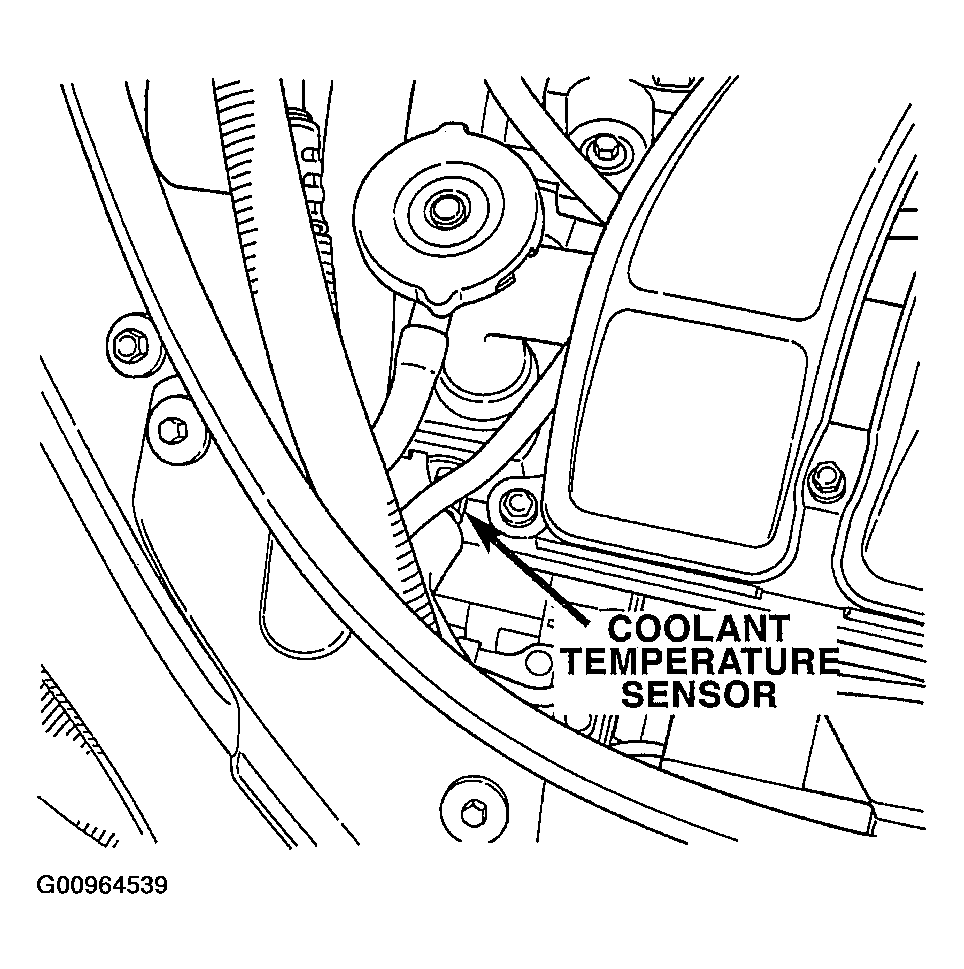

Fig 4: Locating Coolant Temperature Sensor
G00964539Courtesy of DAIMLERCHRYSLER CORP.

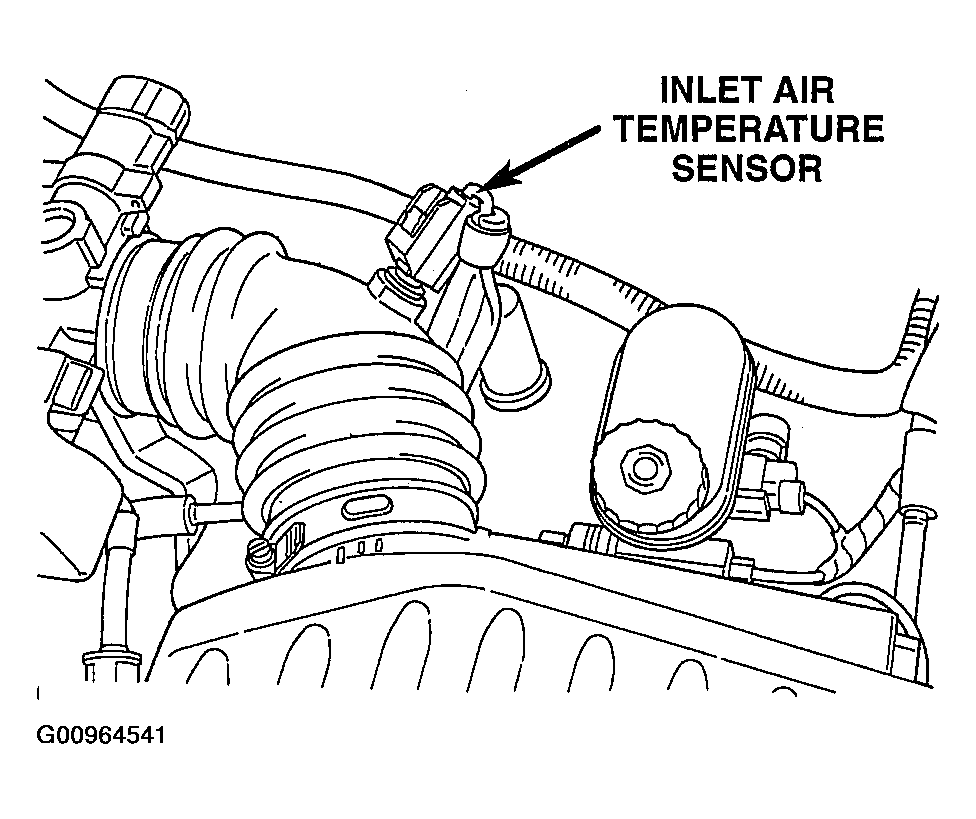

Fig 5: Locating Inlet Air Temperature Sensor
G00964541Courtesy of DAIMLERCHRYSLER CORP.

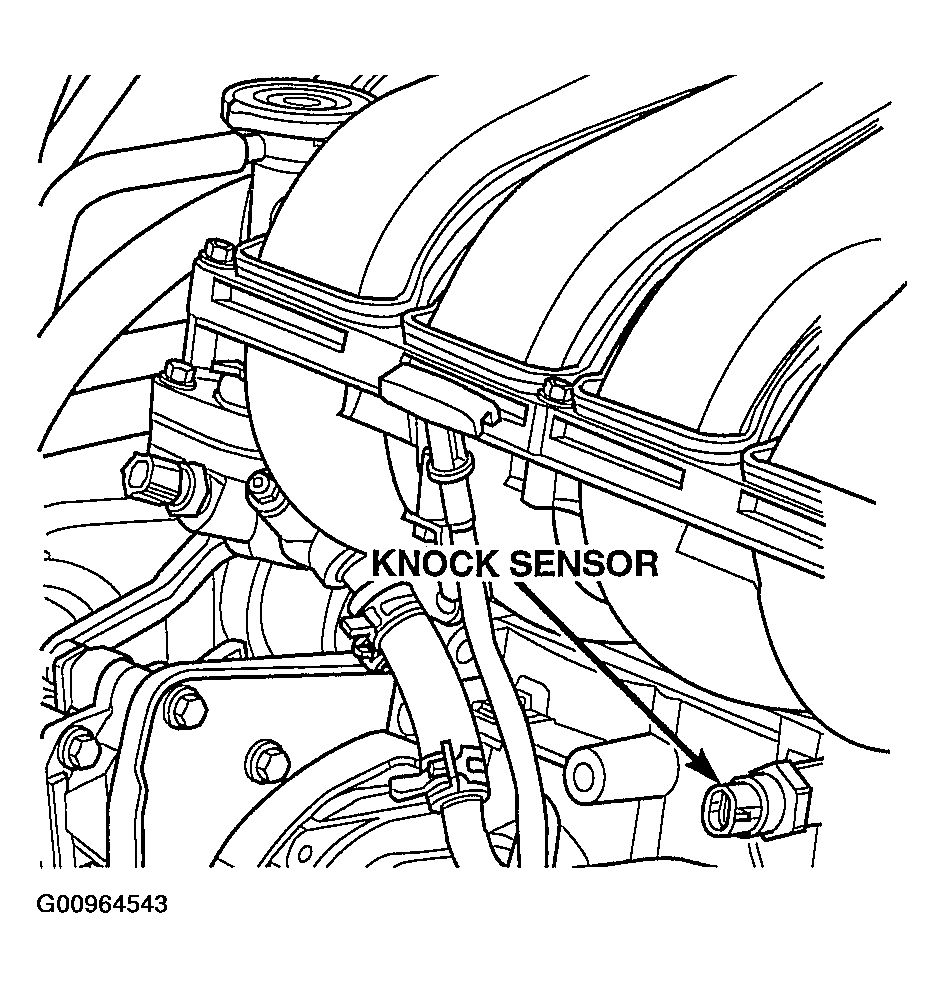

Fig 6: Locating Knock Sensor
G00964543Courtesy of DAIMLERCHRYSLER CORP.

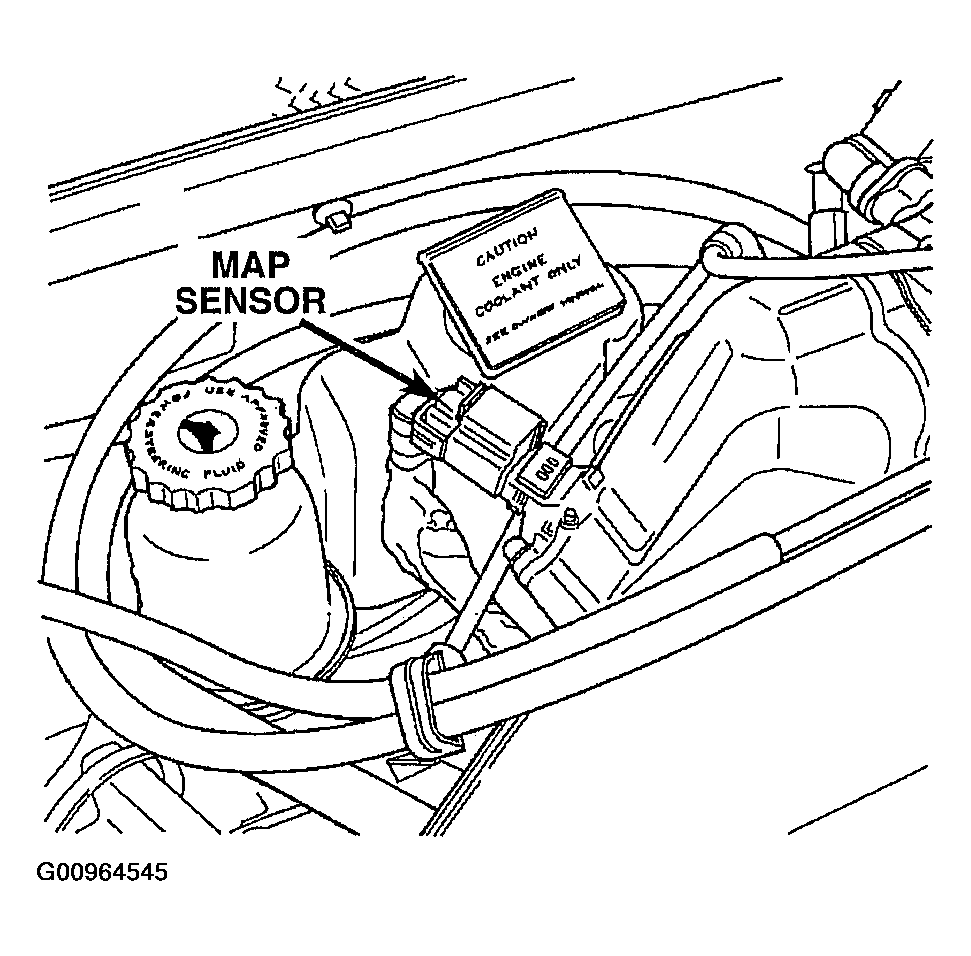

Fig 7: Locating MAP Sensor (Except Turbo)
G00964545Courtesy of DAIMLERCHRYSLER CORP.

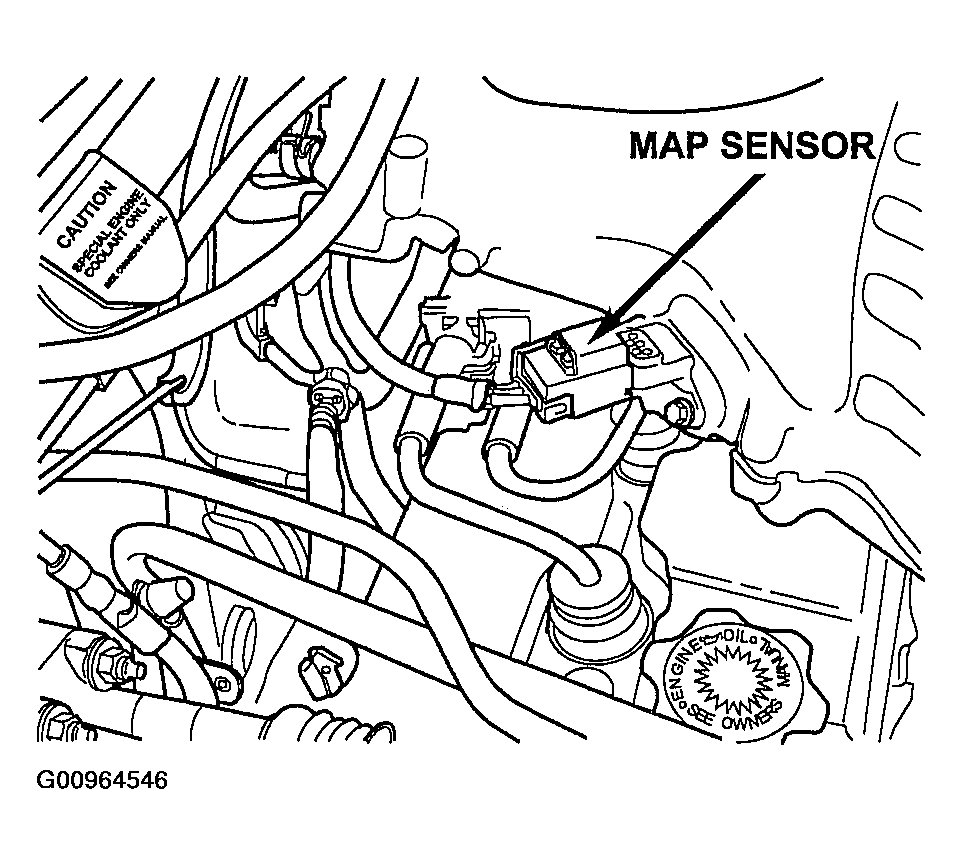

Fig 8: Locating MAP Sensor (Turbo)
G00964546Courtesy of DAIMLERCHRYSLER CORP.

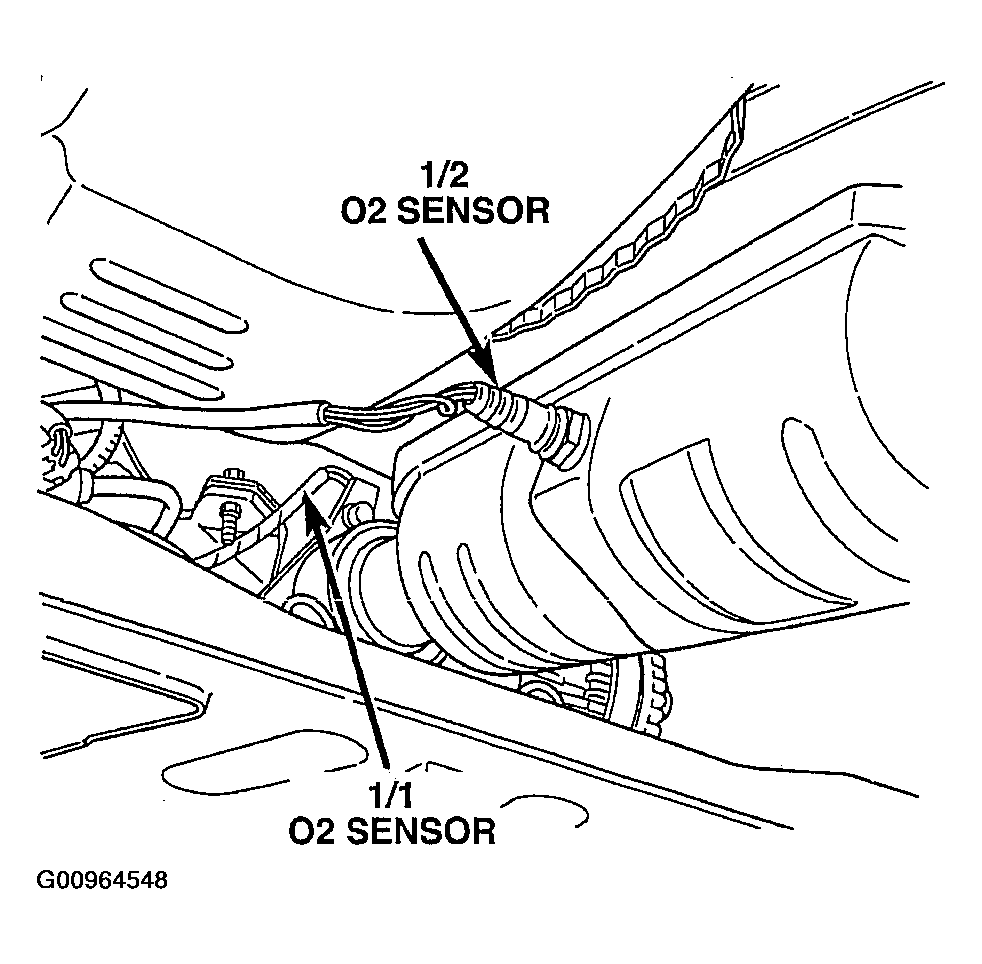

Fig 9: Locating O2 Sensors
G00964548Courtesy of DAIMLERCHRYSLER CORP.

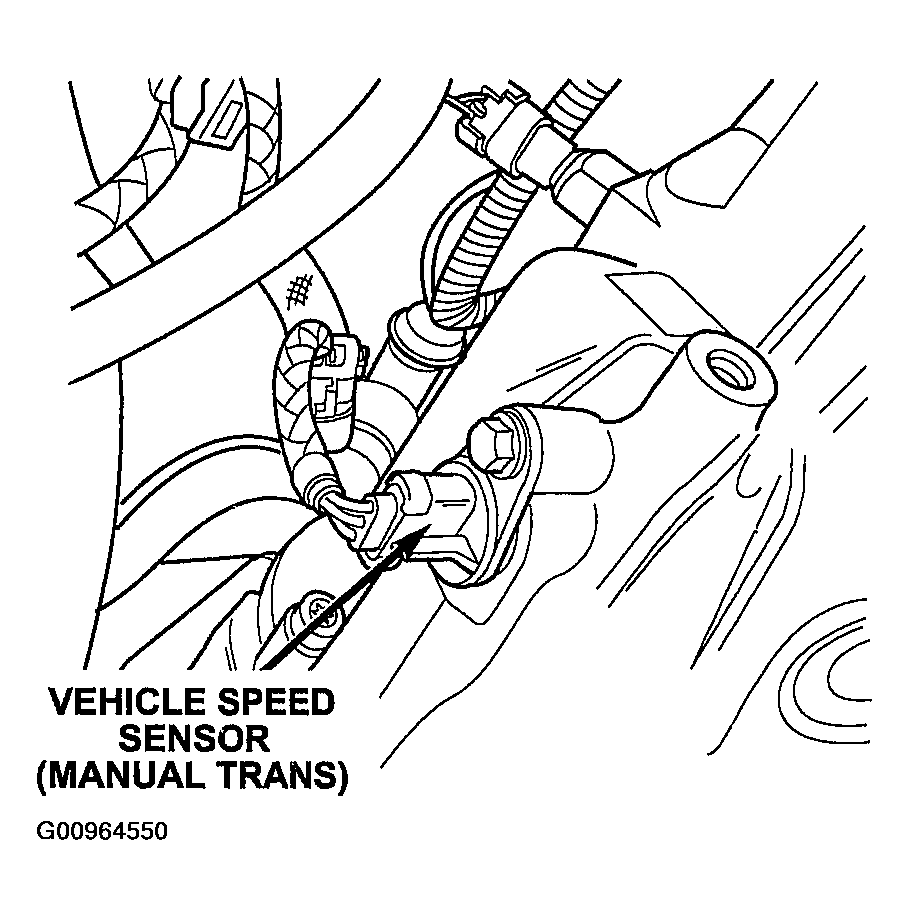

Fig 10: Locating Vehicle Speed Sensor (M/T)
G00964550Courtesy of DAIMLERCHRYSLER CORP.
