Verification Tests

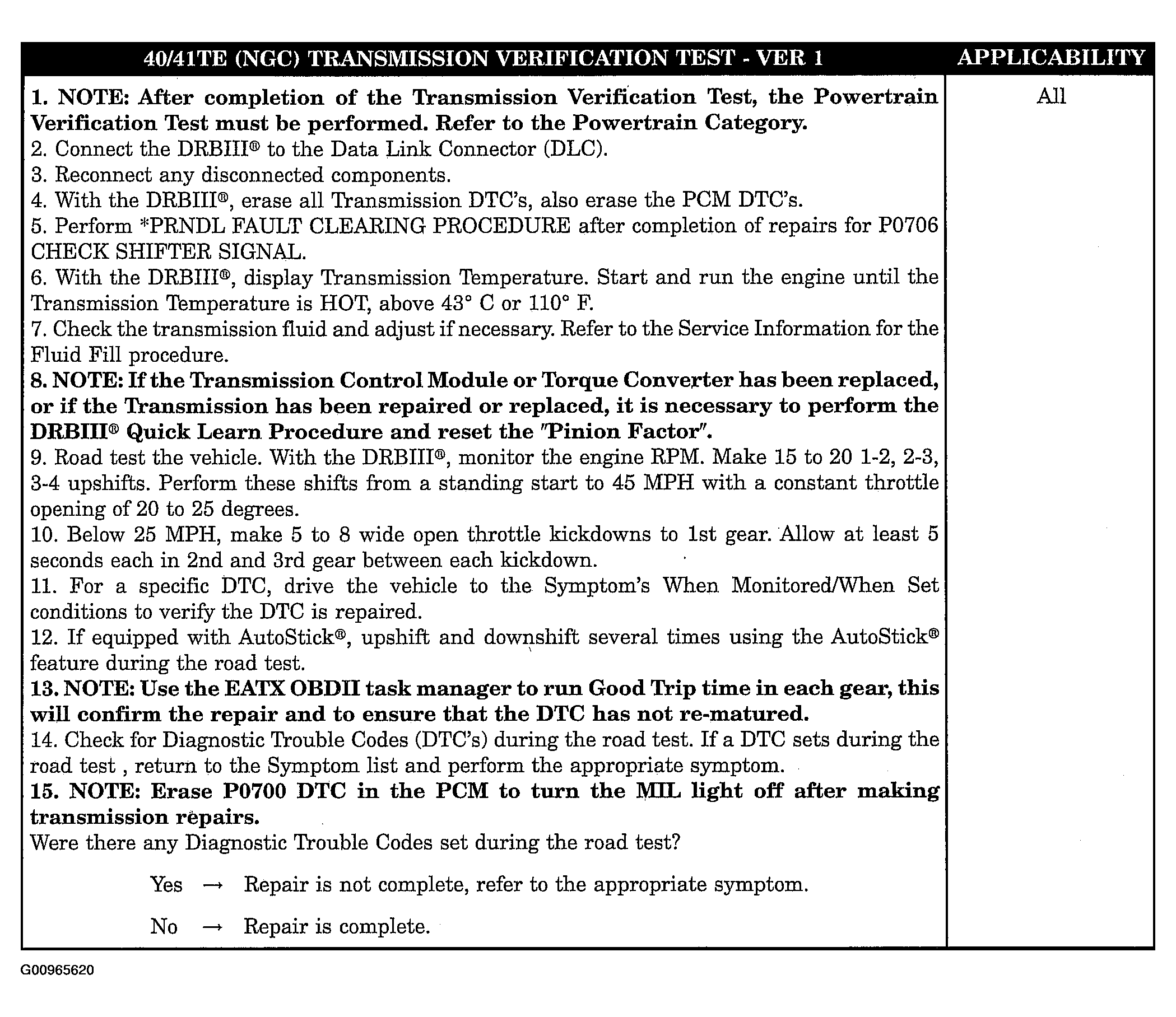

Fig 1: Identifying 40/41TE (NGC) Transmission Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

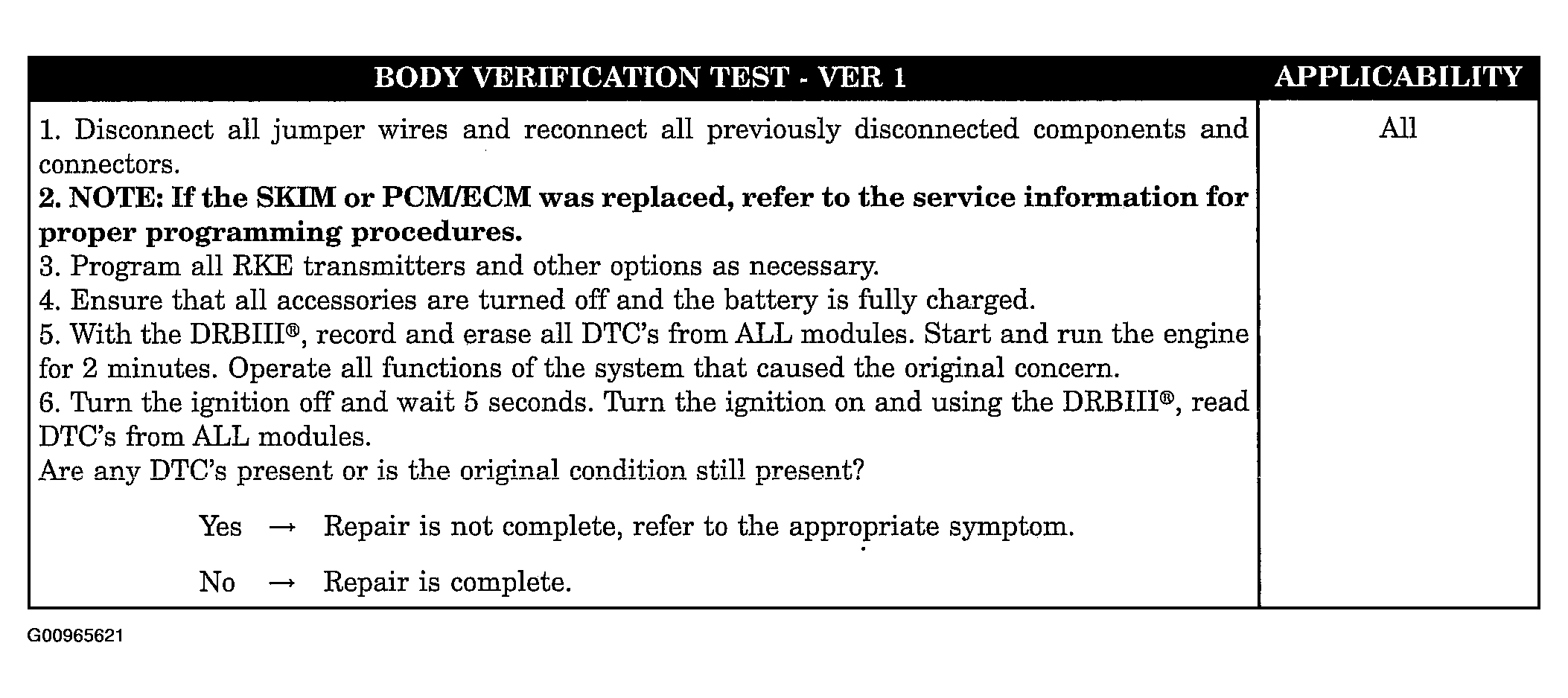

Fig 2: Identifying Body Verification Test - Ver 1

Courtesy of DAIMLERCHRYSLER CORP.

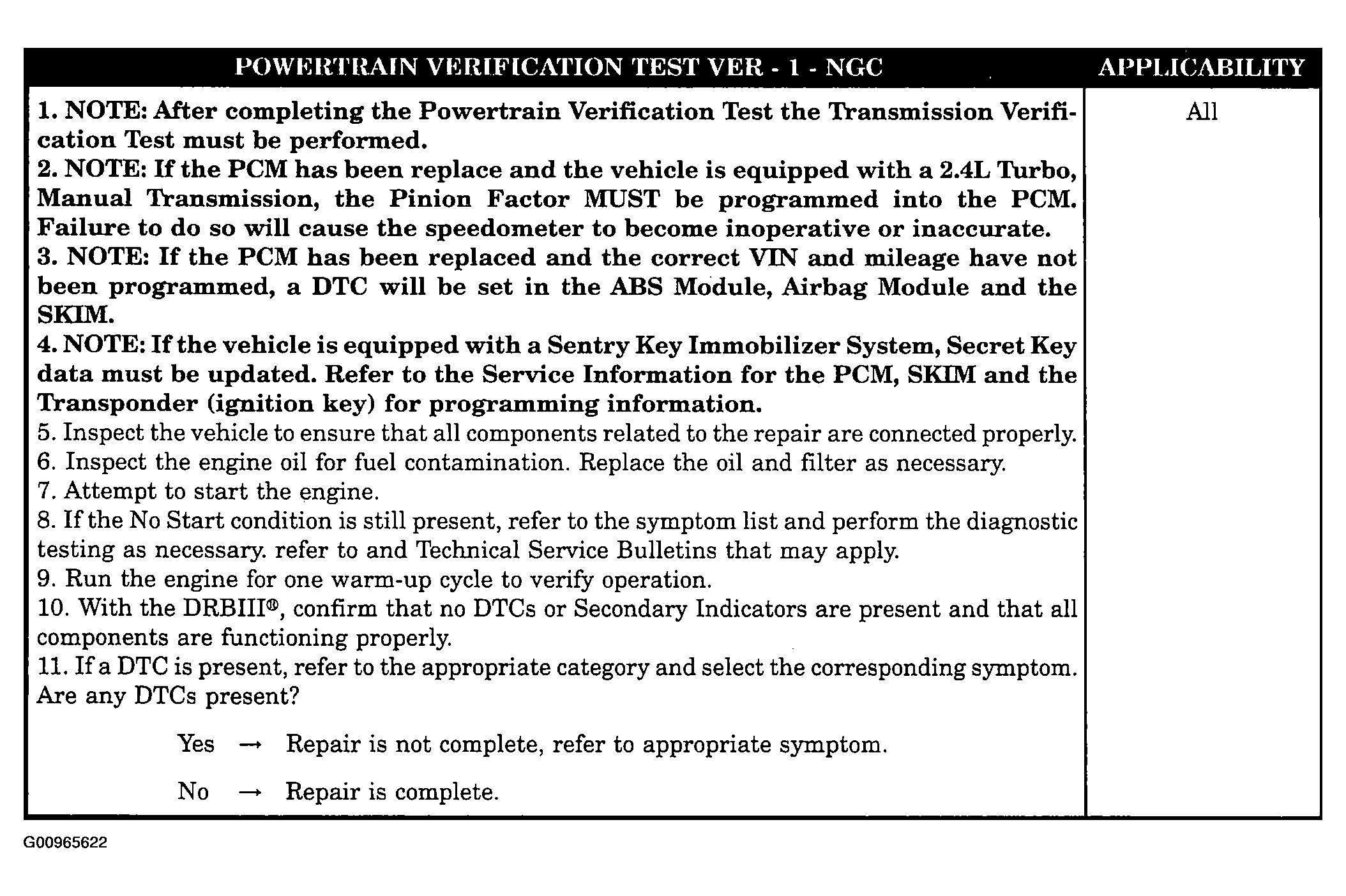

Fig 3: Identifying Powertrain Verification Test - Ver 1 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

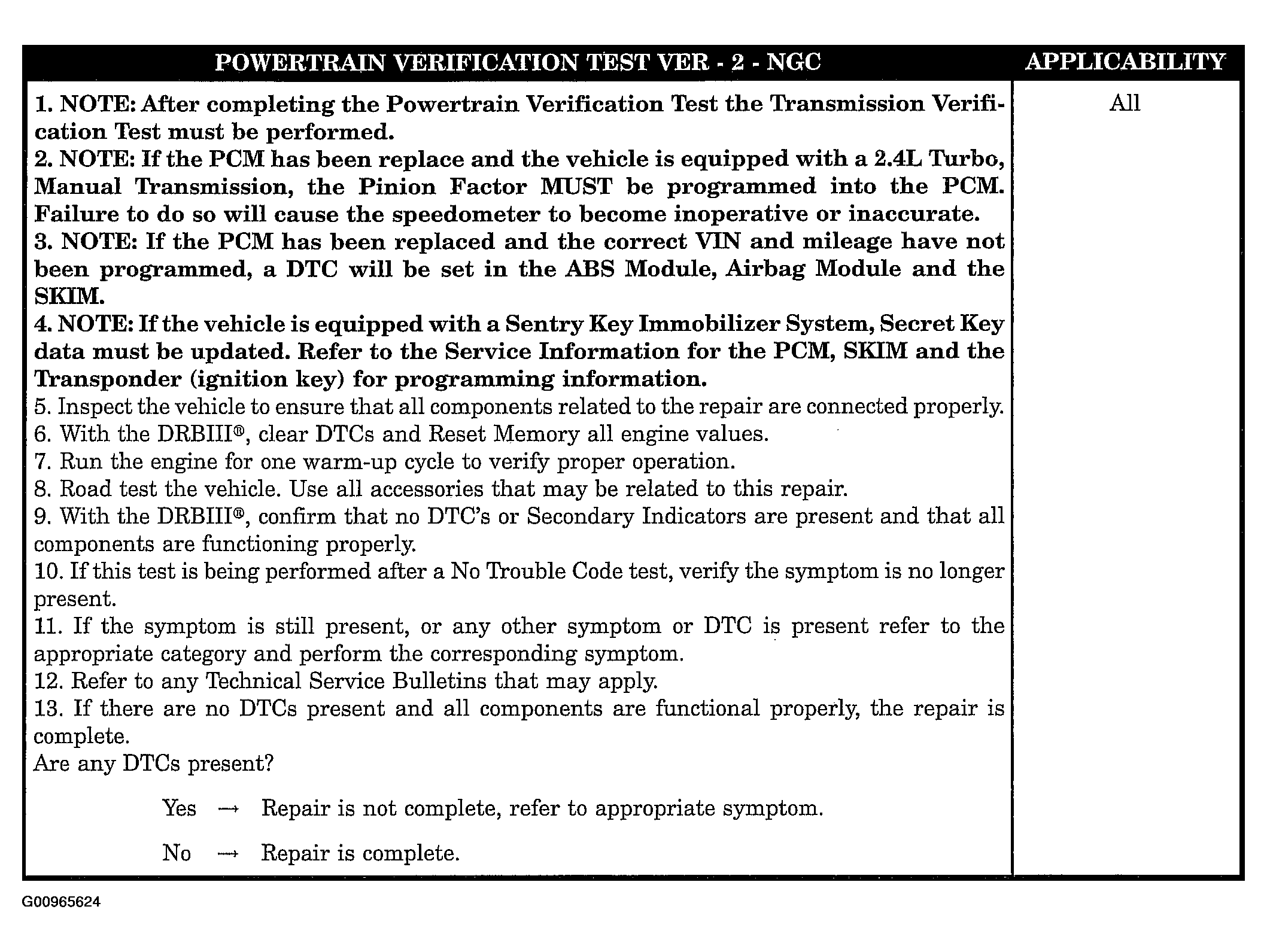

Fig 4: Identifying Powertrain Verification Test - Ver 2 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

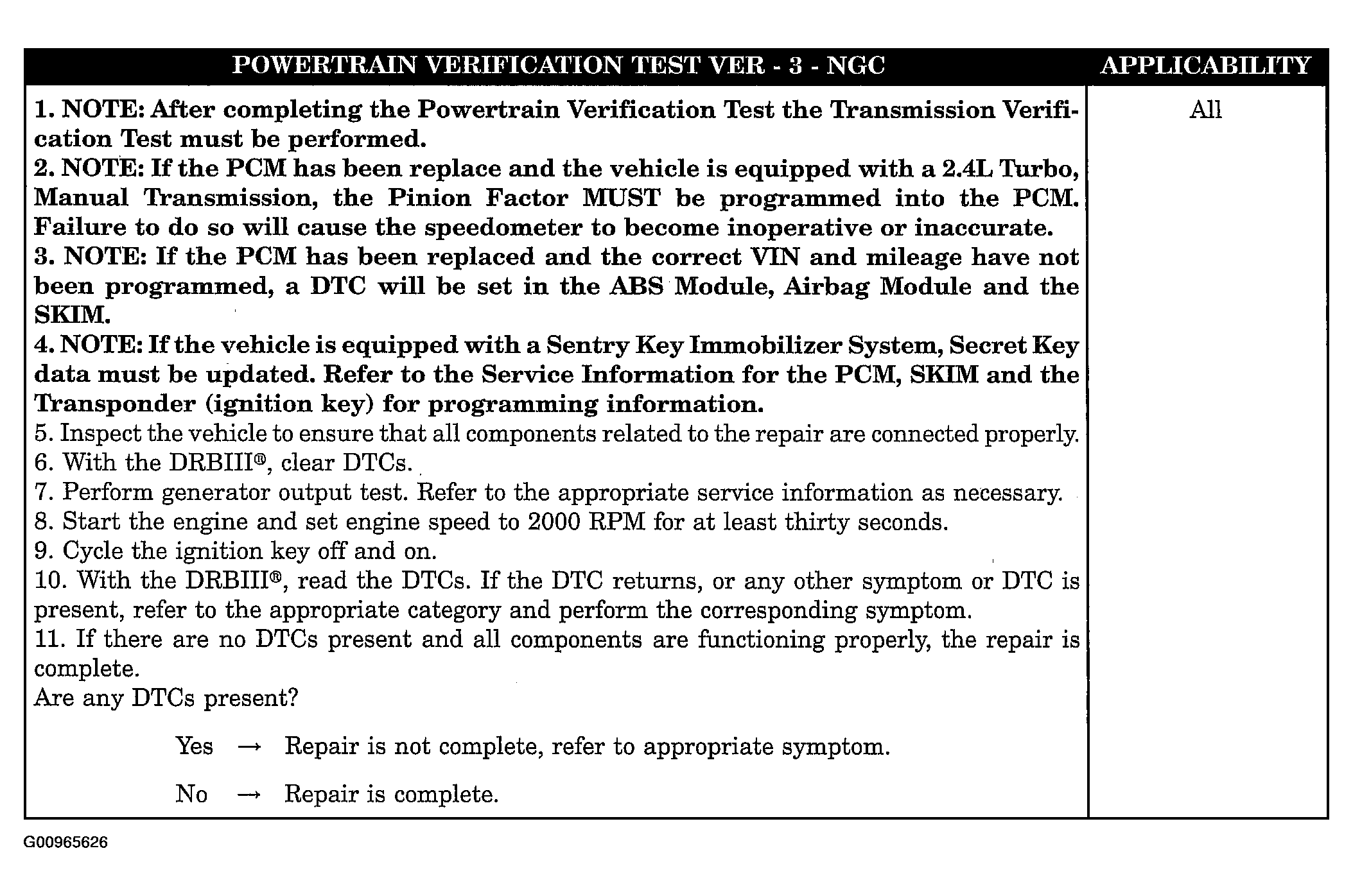

Fig 5: Identifying Powertrain Verification Test - Ver 3 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

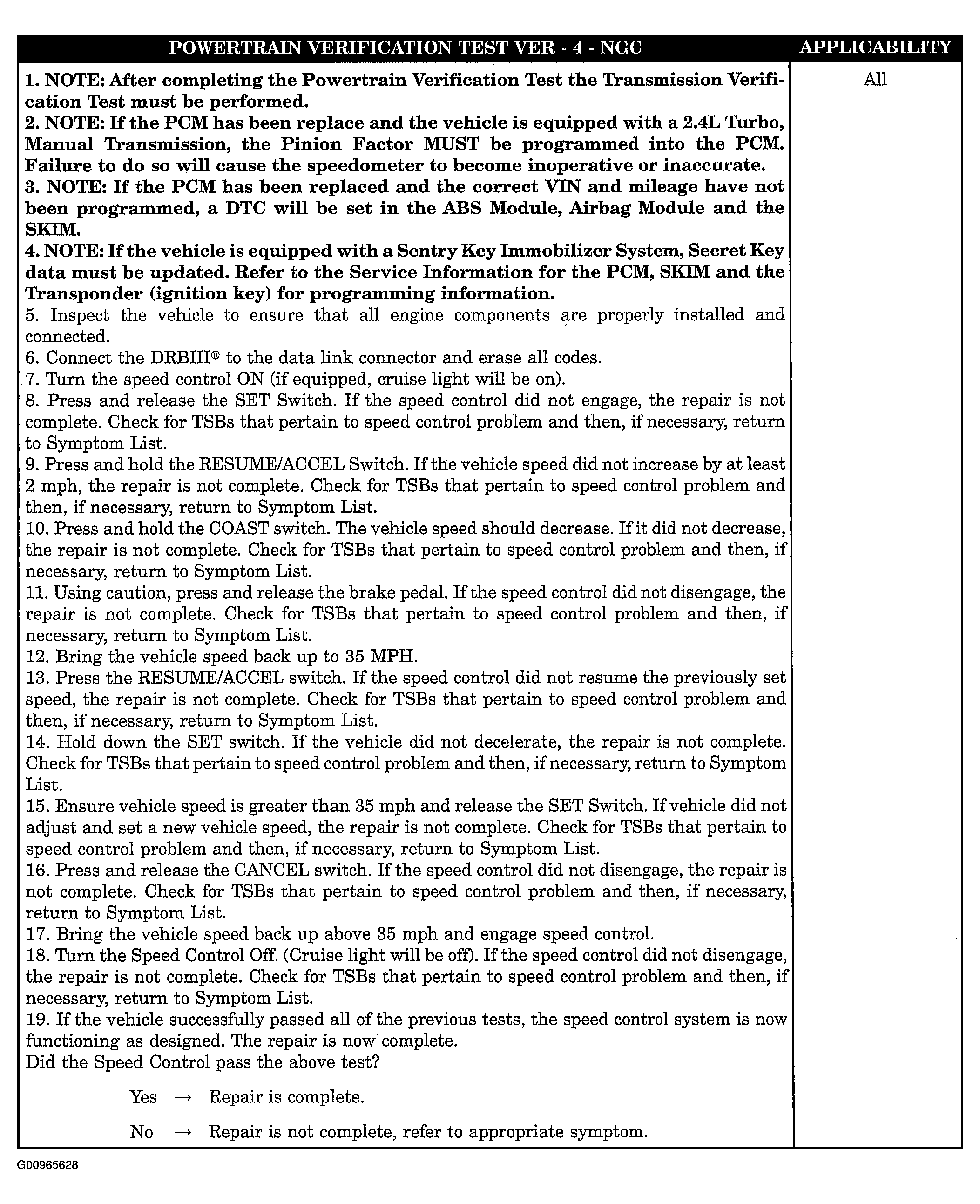

Fig 6: Identifying Powertrain Verification Test - Ver 4 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

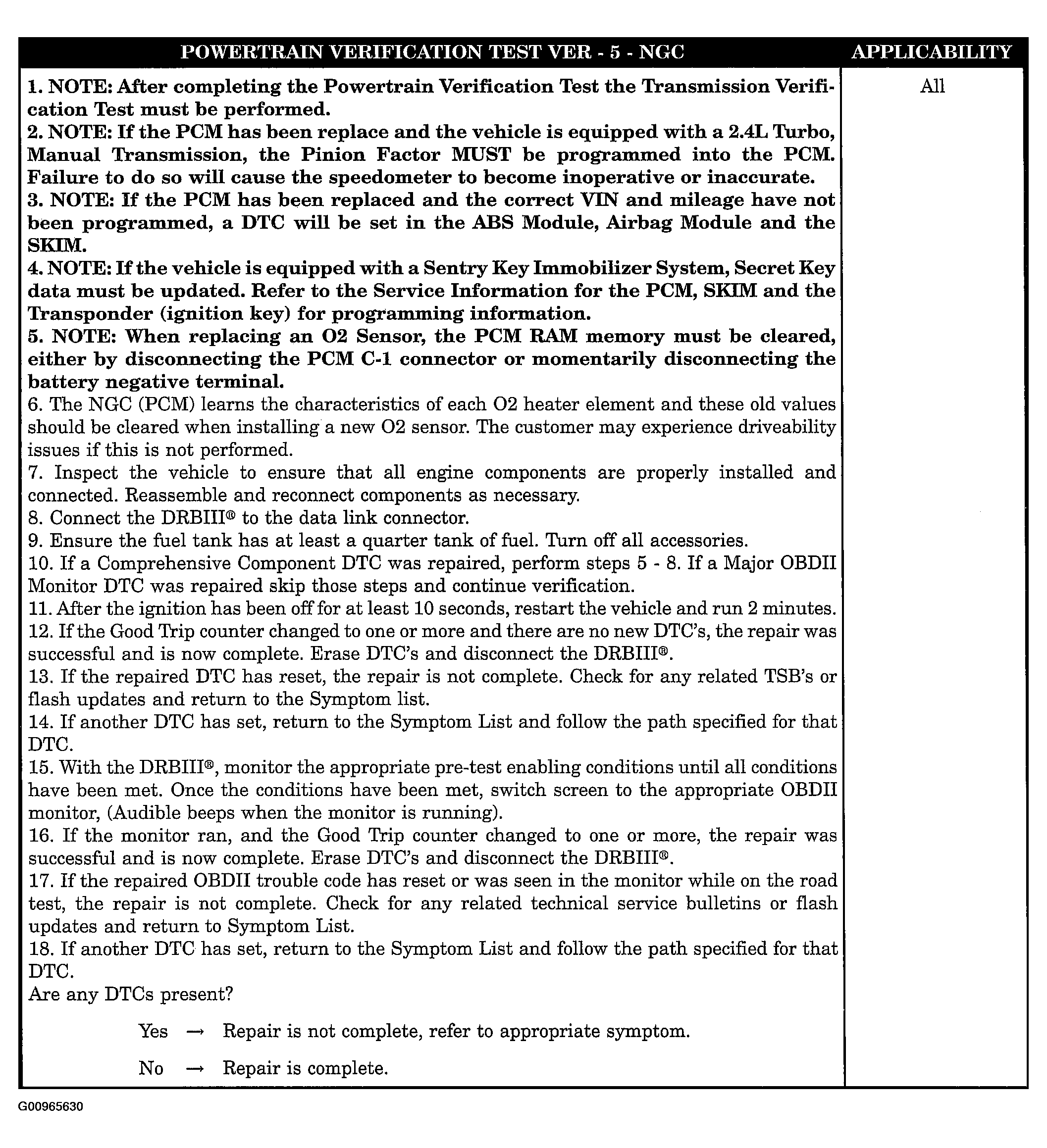

Fig 7: Identifying Powertrain Verification Test - Ver 5 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

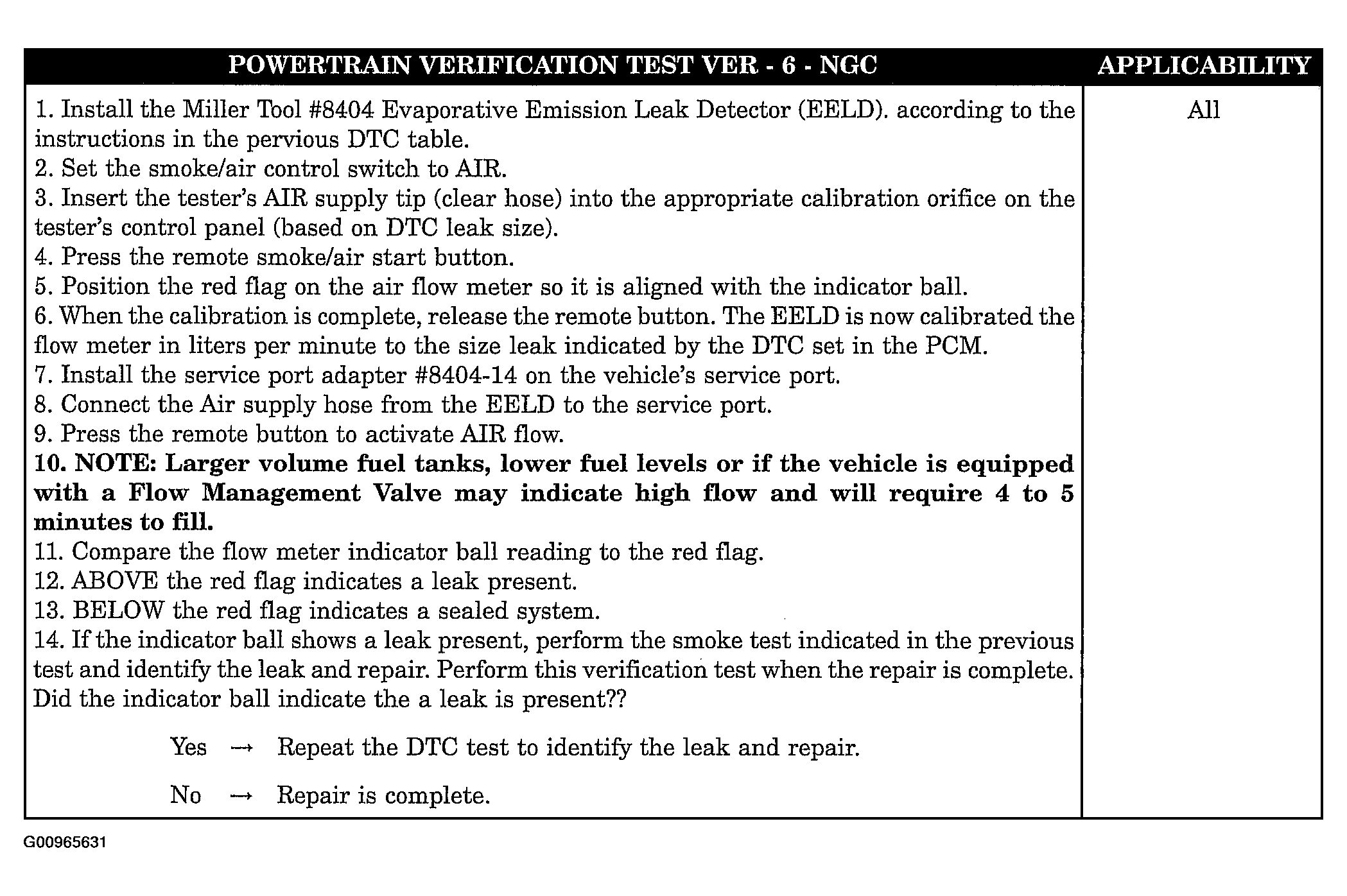

Fig 8: Identifying Powertrain Verification Test - Ver 6 - NGC

Courtesy of DAIMLERCHRYSLER CORP.

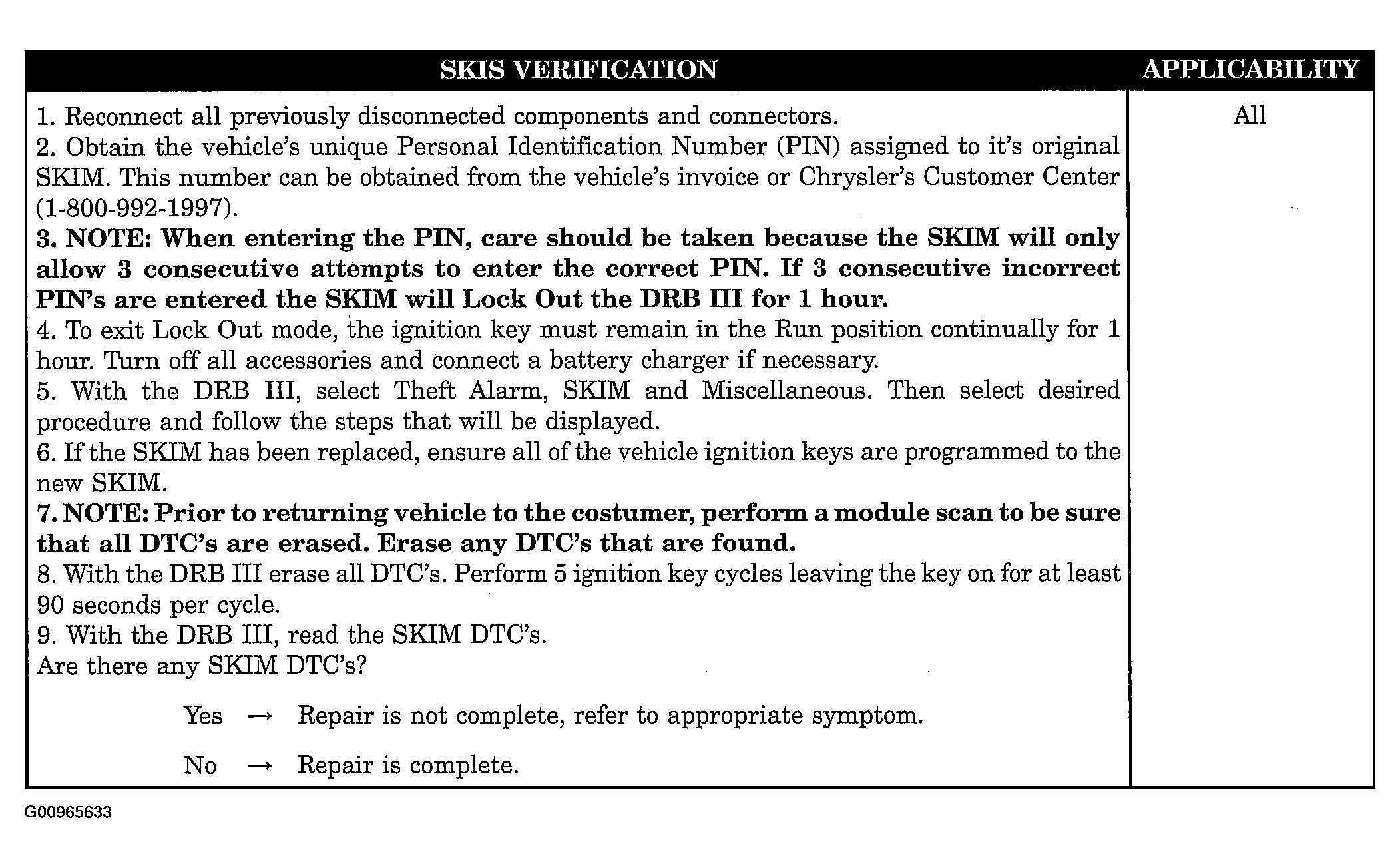

Fig 9: Identifying SKIS Verification Test

Courtesy of DAIMLERCHRYSLER CORP.
