Trim Panel: Installation
- Place trim panel in position.

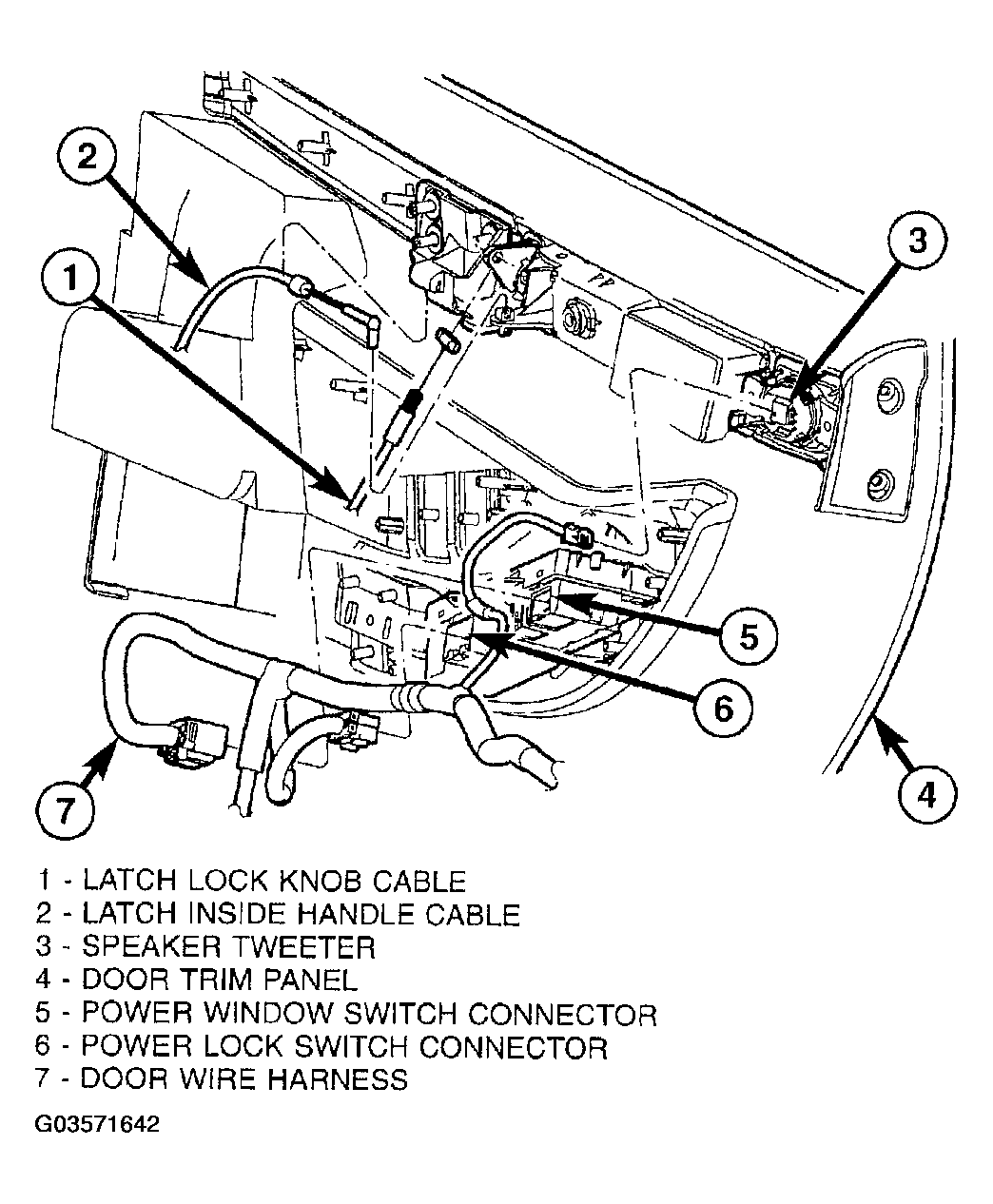

- Move trim panel away from door, and connect wire connectors to power door lock switch, mirror switch, and power window switch. (Fig 2
).
CAUTION: Do not allow door trim panel to hang by the wire connector or wiring.

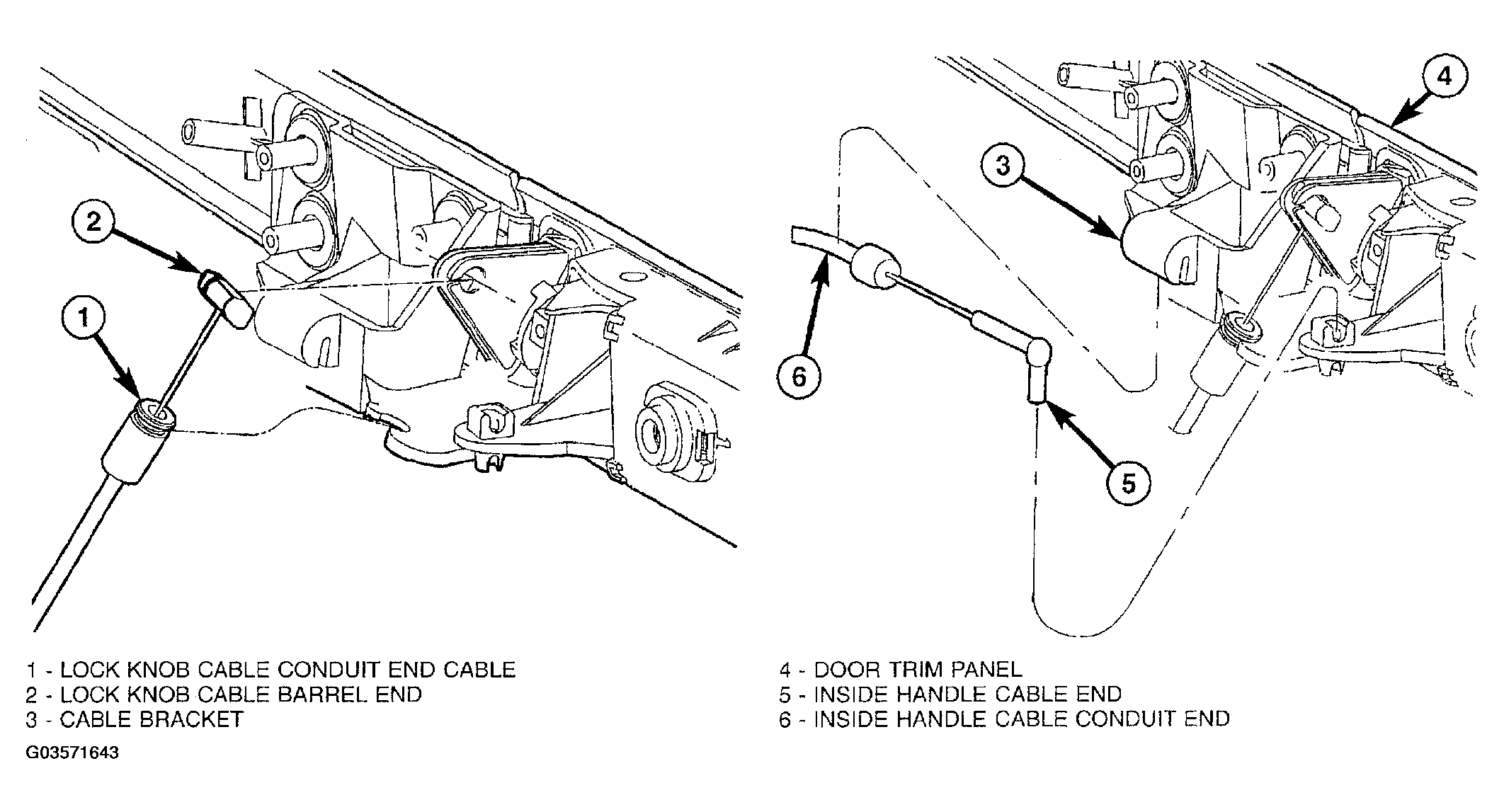

- Slide cable barrel end into lock knob and guide cable through slot (Fig 3 ). Connect lock knob conduit end to bracket. Ensure that lock knob cable did not get kinked.
- Connect conduit end into bracket and connect inside handle cable end clip.
- Connect trim panel to retainer channel in inner belt weatherstrip at top of door gently jiggling while lowering into position.

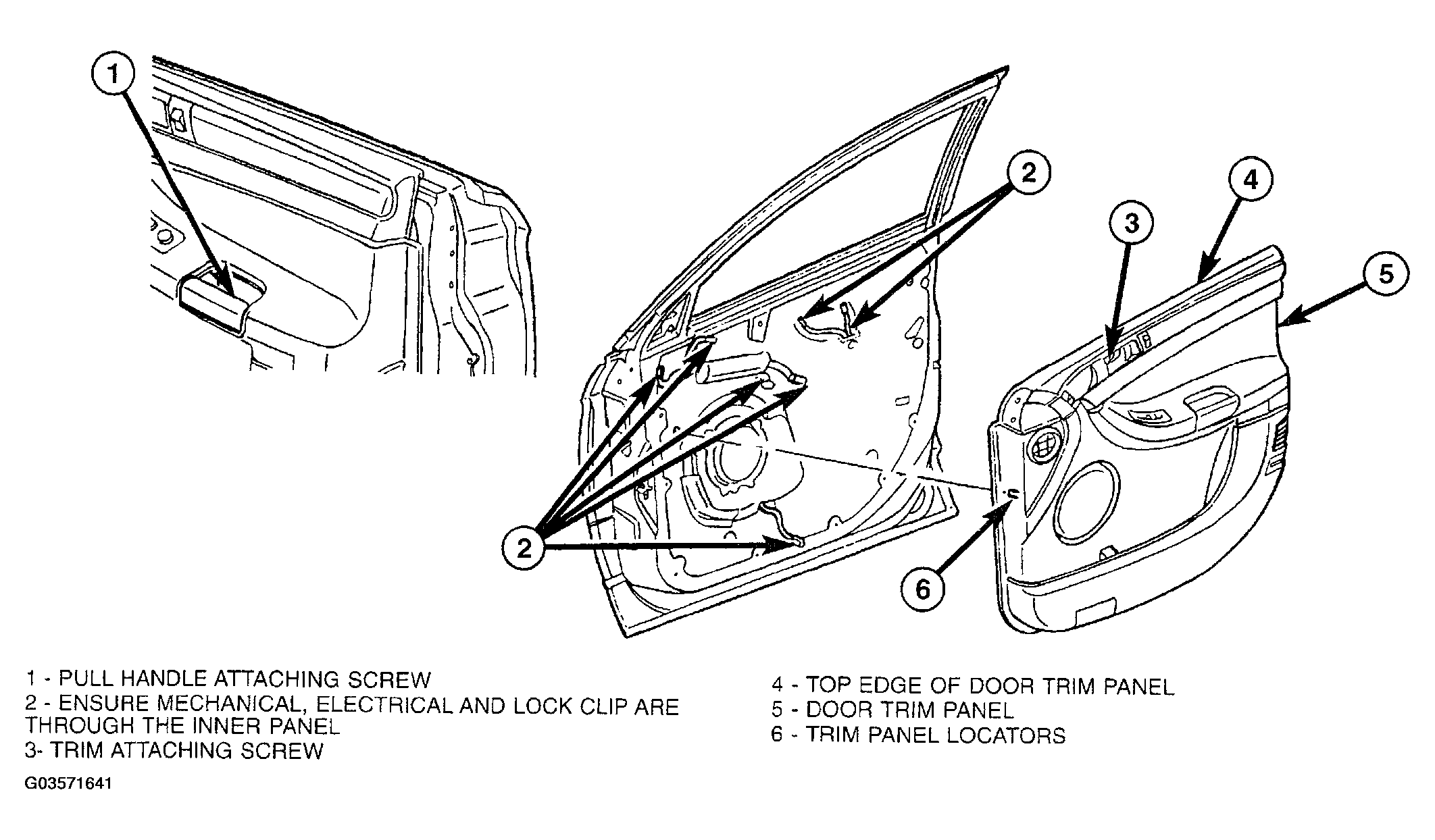

- Tilt trim panel outward to align locator pins into position on backside of trim panel.

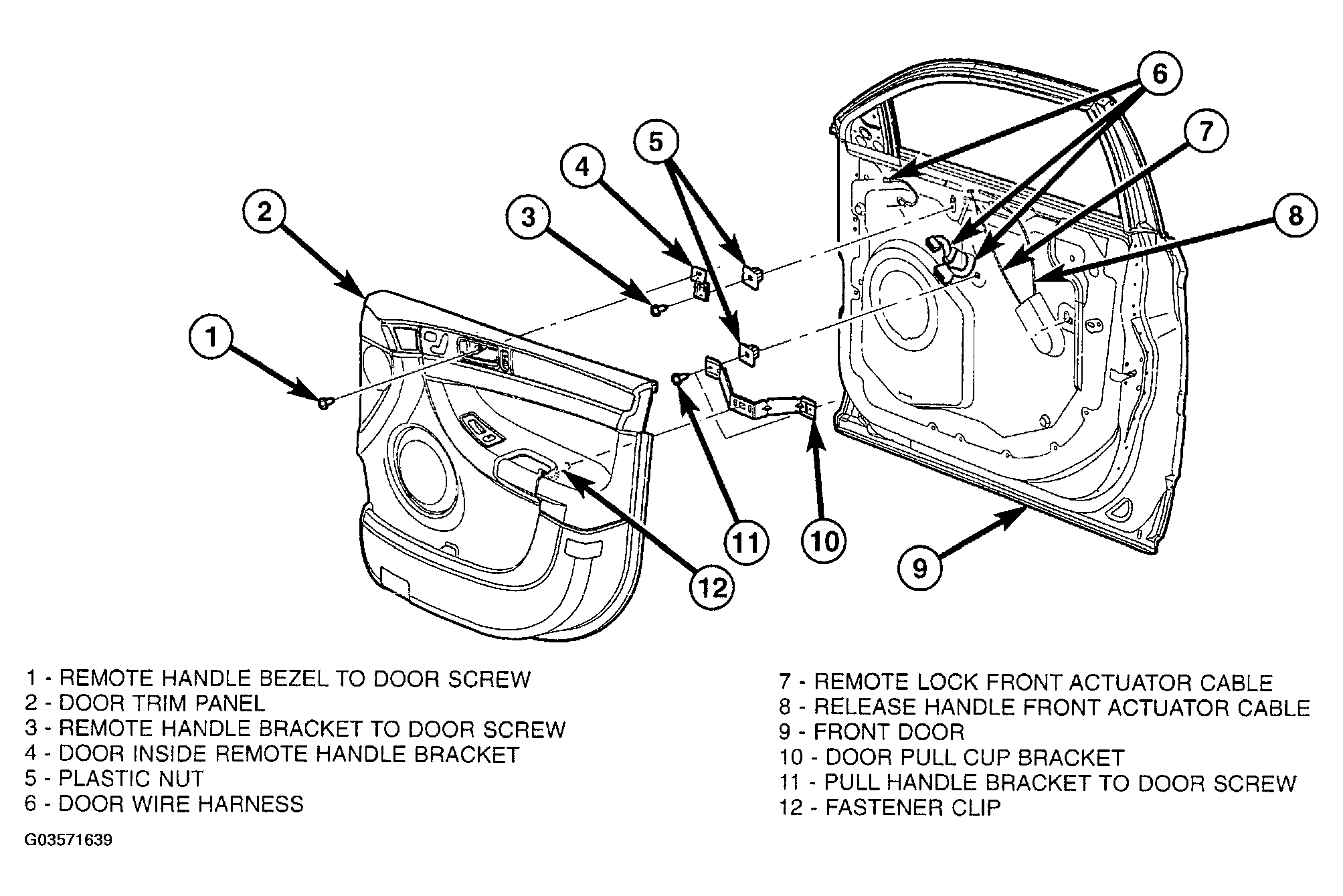

- Applying hand pressure engage push pin fasteners attaching trim panel to door around perimeter of trim panel (Fig 1 ).

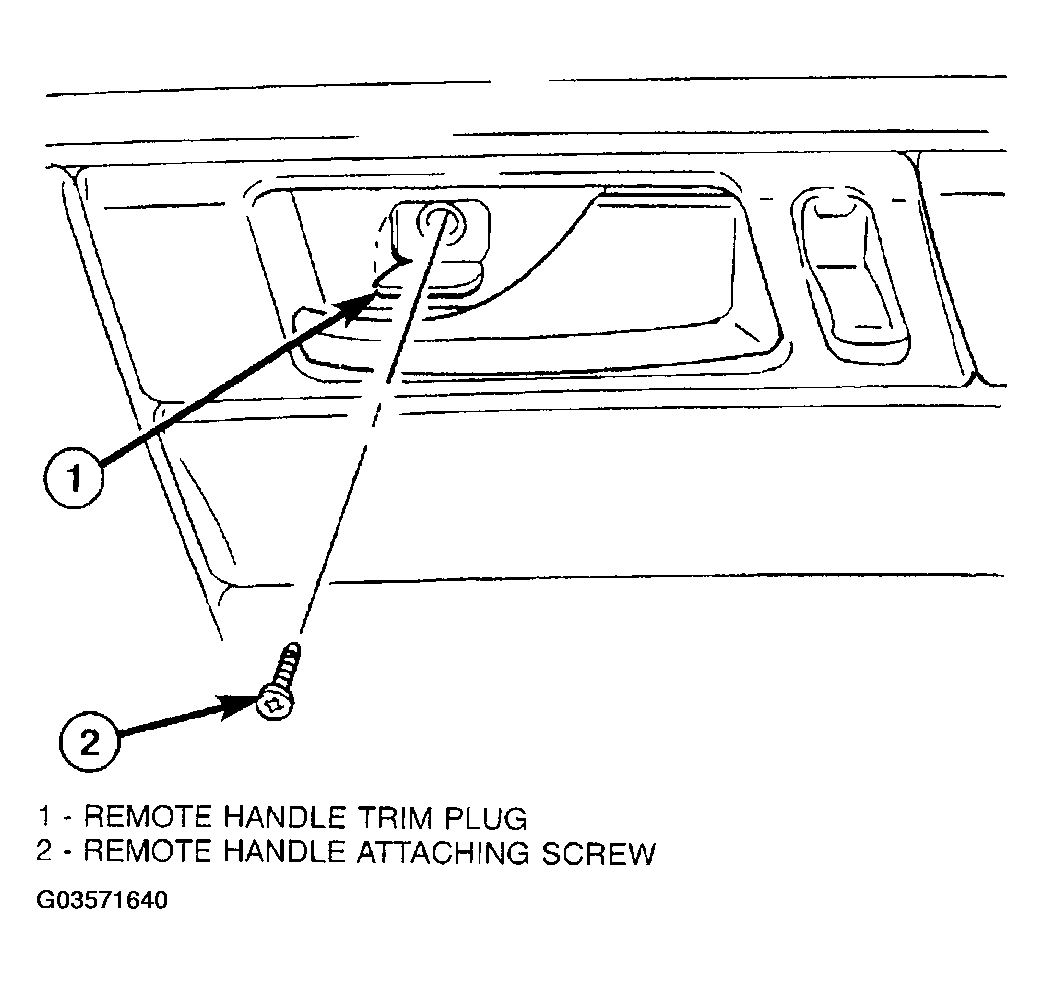

- Install screw behind inside remote handle and close remote handle trim plug (Figure ).
- Install screw inside arm rest pull cup and close remote handle trim plug (Figure ).
- Raise door glass.
- Close door.
