Window Regulator: Removal

  1. Remove door trim panel. (Refer to REMOVAL  ).
  2. Remove watershield. (Refer to REMOVAL  ).
  3. Remove inner belt molding. (Refer to FRONT INNER BELT MOLDING WEATHERSTRIP ).
  4. Remove door glass. (Refer to REMOVAL  ).

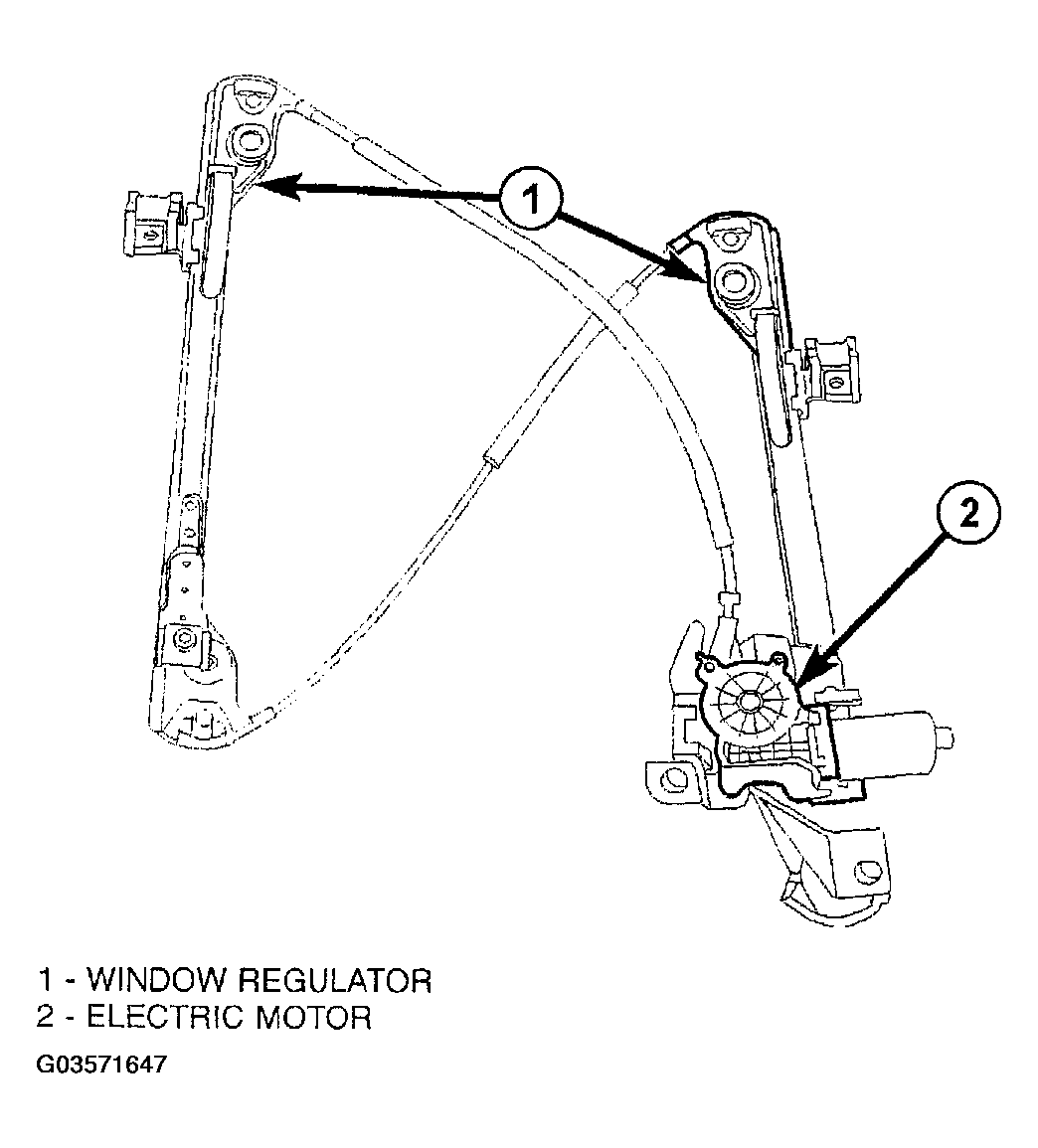

  5. Disconnect wire connector from power window motor (Figure ).
  6. Loosen screws attaching front and rear window guide rails to inner door panel (Figure ).
  7. Remove screw heads on guide rails from key hole slots in inner door panel.
  8. Loosen screws attaching motor/housing to inner door panel.
  9. Remove regulator from inner door panel.
  10. Extract rear guide rail through inner door panel rear access hole.
  11. Extract front guide rail through front access hole (Figure ).
