Wheel Speed Sensor Rear: Installation

  1. Apply bearing grease (supplied with part) to sensor head shaft and O-ring.
    CAUTION: Ensure that sensor mounting surface on bearing is clean before sensor installation.
  2. Push sensor head into mounting hole in hub and bearing and align mounting screw hole.
  3. Install NEW mounting screw (Fig 1 ). Tighten mounting screw to 20 N.m (15 ft. lbs.) torque.

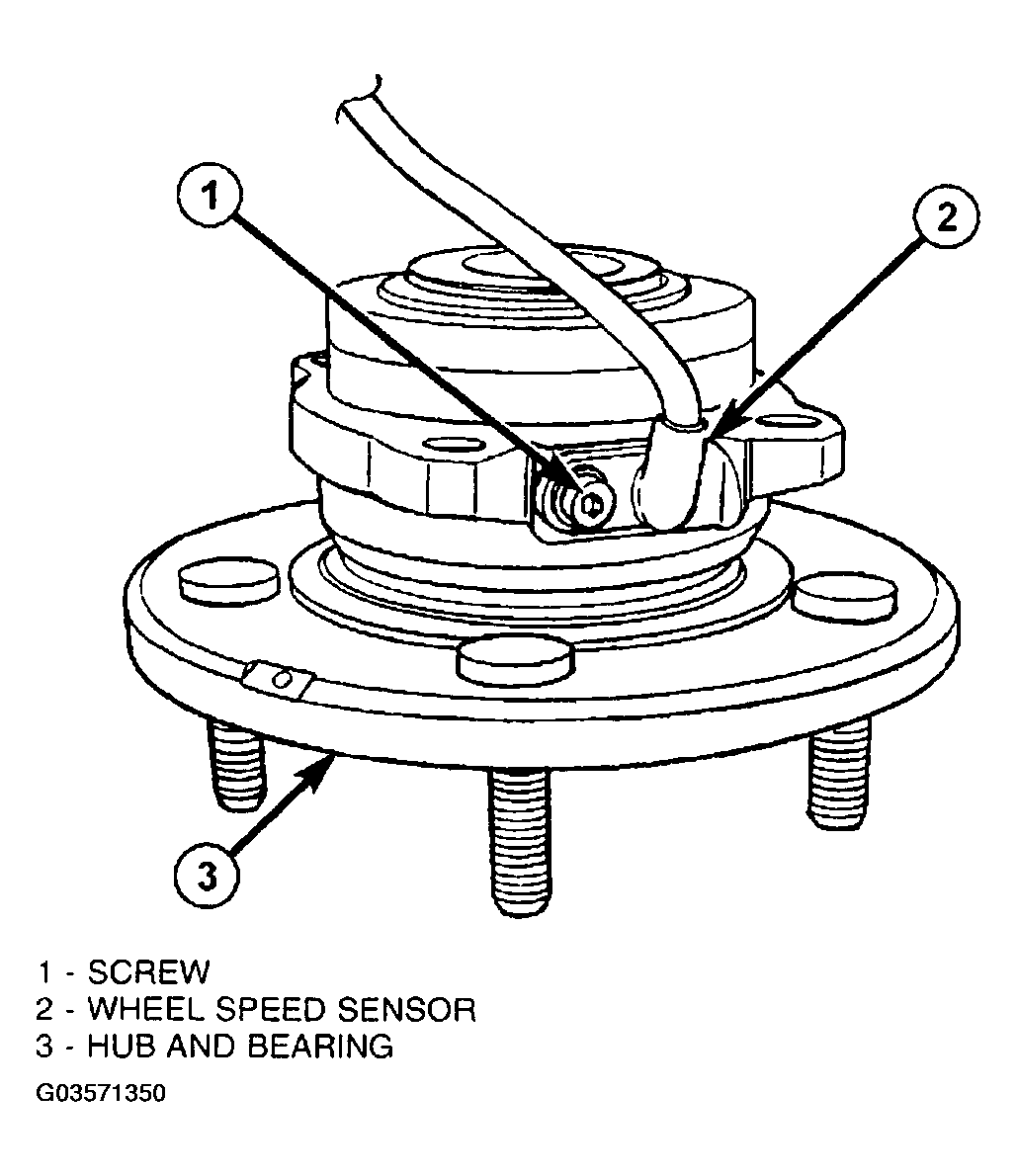

    Fig 1: Installing Rear Hub And Bearing With Wheel Speed Sensor
    G03571350Courtesy of DAIMLERCHRYSLER CORP.
  4. Install hub and bearing with wheel speed sensor as well as all components necessary to access it. (Refer to SUSPENSION REAR ).
  5. Road test vehicle to ensure proper operation of the base brakes and ABS.
