Power Outlet: Installation

  1. Install base mount ring.
  2. Connect the base wires.
  3. Firmly snap base into position inside of instrument panel.
  4. Connect the battery negative cable.

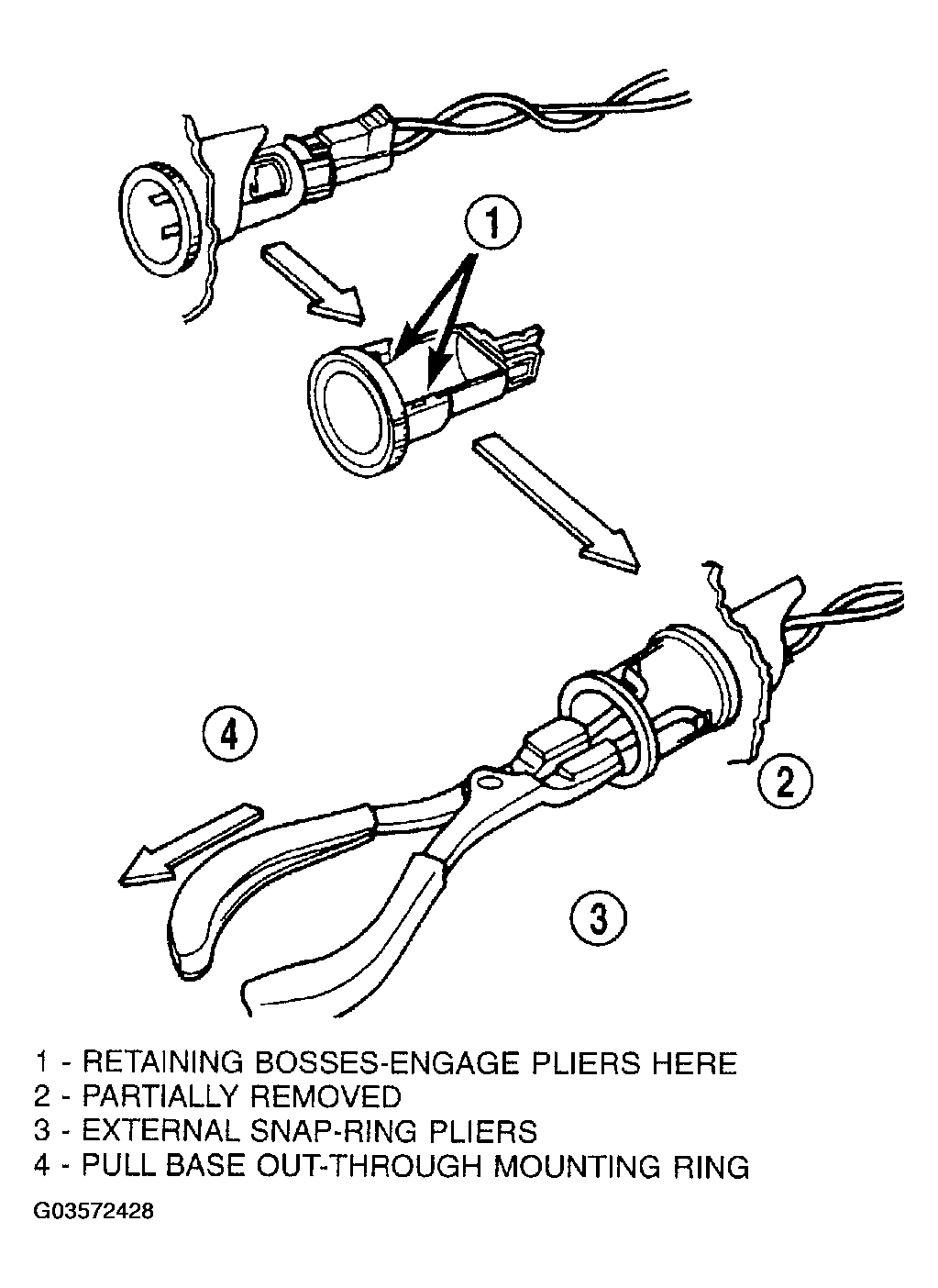

    Fig 1: Identifying Removing Cigar Lighter / Power Outlet Base
    G03572428Courtesy of DAIMLERCHRYSLER CORP.

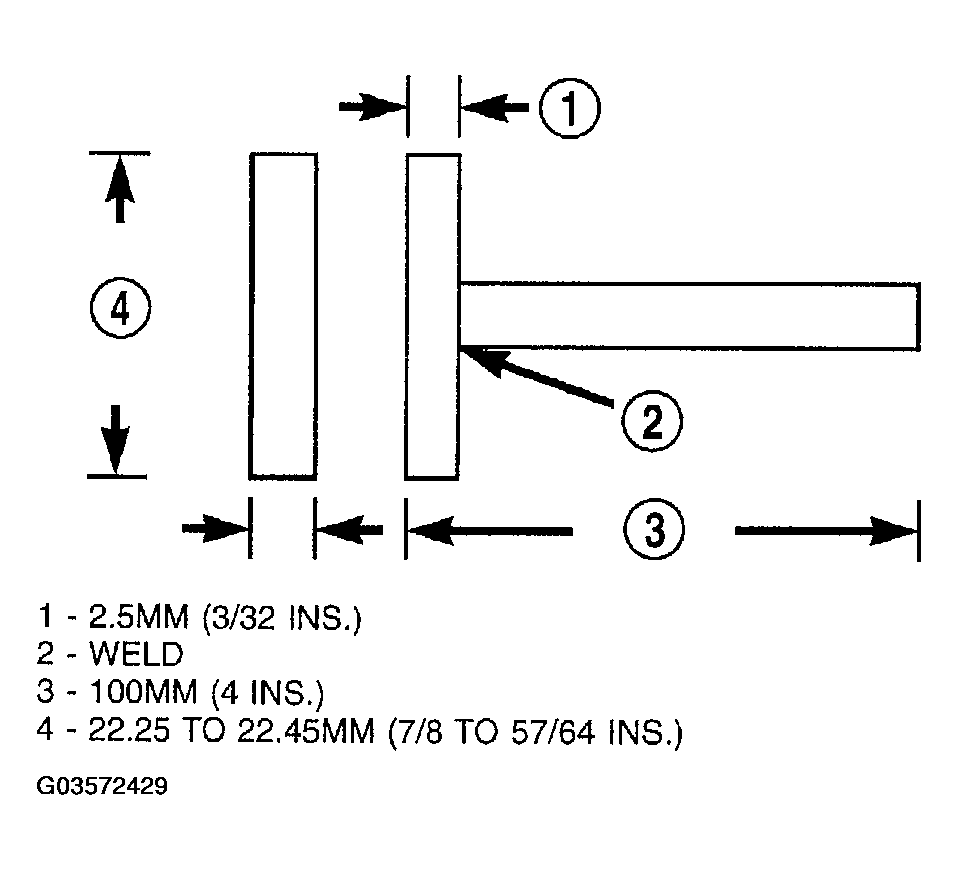

    Fig 2: Identifying Removing Tool For Cigar Lighter / Power Outlet
    G03572429Courtesy of DAIMLERCHRYSLER CORP.
