Battery System: THERMOWRAP: Description

A one-piece slip-on thermowrap unit shields the battery case from engine compartment heat. The thermowrap slips over the battery case (Fig 1 ) and acts like a protective jacket.

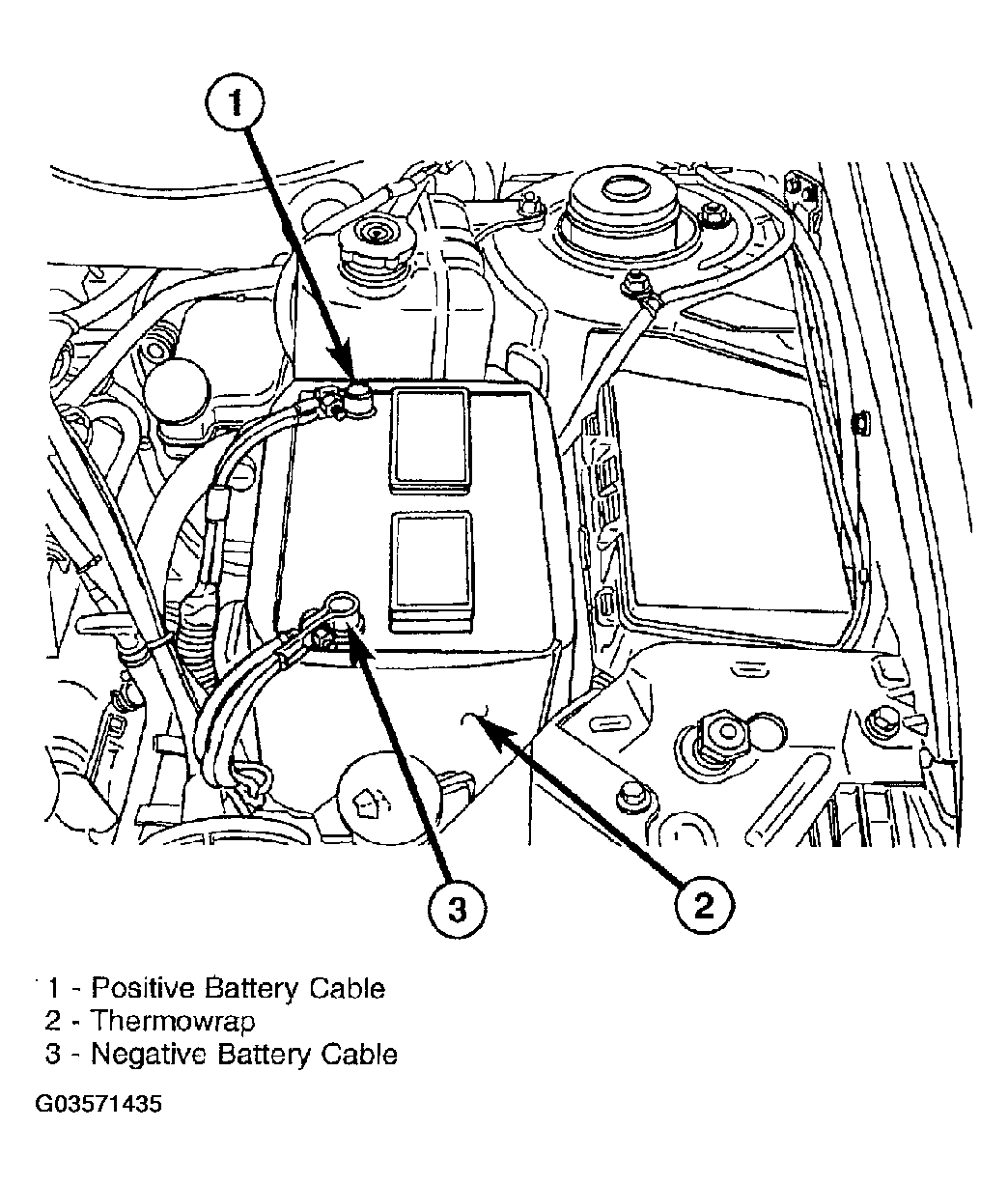

Fig 1: Identifying Thermowrap

Courtesy of DAIMLERCHRYSLER CORP.
