Starter Motor: Removal

Disconnect the negative battery cable.
Remove (Fig 1) and relocate (Fig 2) the upper radiator crossmember, (Refer to RADIATOR CROSSMEMBER ).

Fig 1: Identifying Upper Radiator Cross Member
Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Removing Upper Radiator Cross Member
Courtesy of DAIMLERCHRYSLER CORP.
Remove the radiator fan module (Fig 3) (Refer to RADIATOR FAN ).

Fig 3: Removing Fan Module
Courtesy of DAIMLERCHRYSLER CORP.
Remove the wiring harness clip from front mount.
Remove the coolant line clamp bolt (Fig 4).

Fig 4: Removing Coolant Line Clamp Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper nut from the front mount (Fig 5).

Fig 5: Removing Upper Nut From Front Rubber Mount
Courtesy of DAIMLERCHRYSLER CORP.
Remove the upper starter mounting bolt (Fig 6).

Fig 6: Removing Upper Starter Mounting Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the middle starter bolt (Fig 7).

Fig 7: Removing Middle Starter Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Raise vehicle and support.
Remove the lower front mount nut (Fig 8).

Fig 8: Identifying Front Rubber Mount
Courtesy of DAIMLERCHRYSLER CORP.
Raise and support engine (Fig 9).

Fig 9: Supporting Engine Using Suitable Tool
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower bracket bolt to transmission (Fig 10).

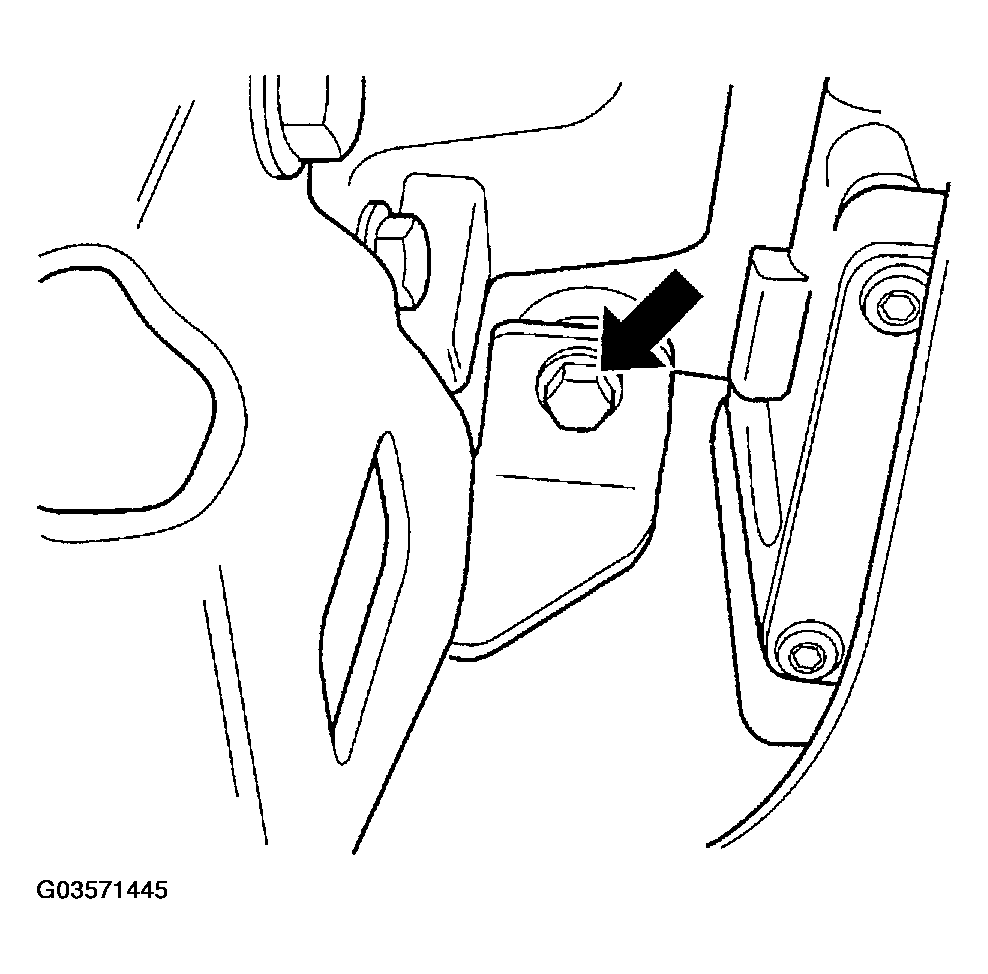

Fig 10: Removing Bracket Trans Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove the lower bracket bolt to engine block (Fig 11).

Fig 11: Removing Bracket Engine Block Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Relocate the front mount and bracket.
Disconnect the positive battery cable from starter
Disconnect the solenoid connector from starter.
Remove the lower starter bolt (Fig 12).

Fig 12: Removing Lower Starter Bolt
Courtesy of DAIMLERCHRYSLER CORP.
Remove starter from vehicle.
