Wiper Module-Rear - Natural 3 Way Connector End View

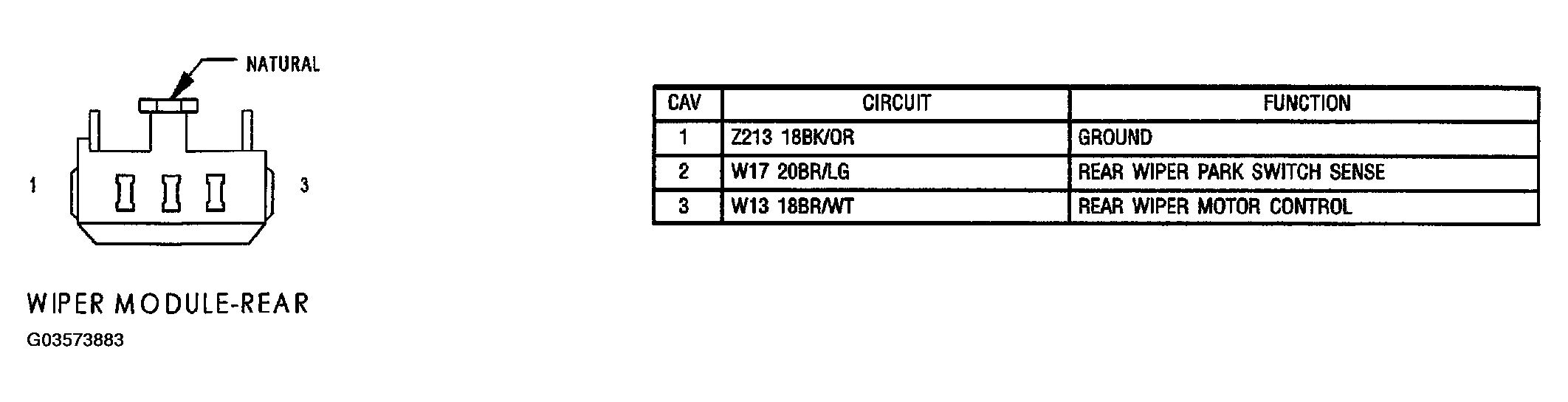

Fig 1: Rear Wiper Module Connector End View

G03573883

Courtesy of DAIMLERCHRYSLER CORP.
