Alignment Specifications

NOTE: All specifications are given in degrees. All wheel alignments are to be set with vehicle at its proper curb height.

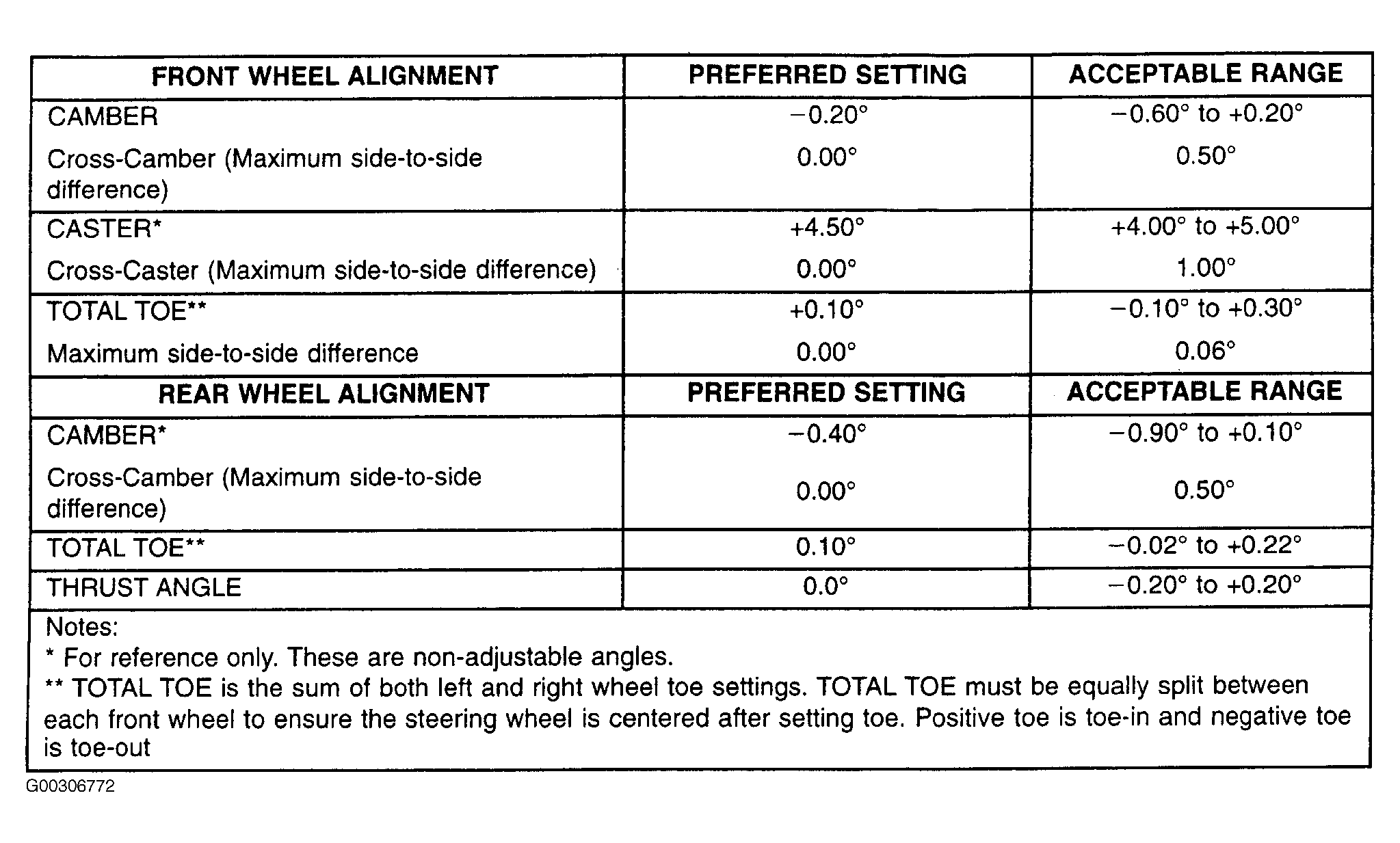

Fig 1: Wheel Alignment Specifications

Courtesy of CHRYSLER CORP.

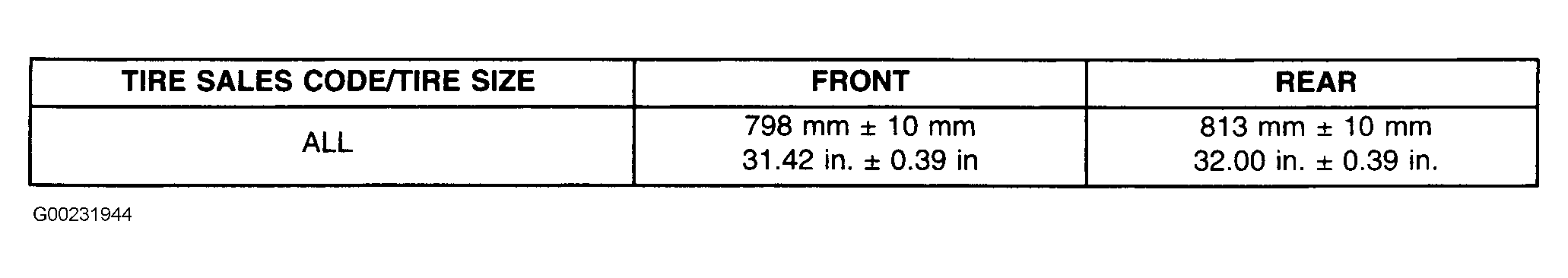

Fig 2: Curb Height Specifications

Courtesy of DAIMLERCHRYSLER CORPORATION
