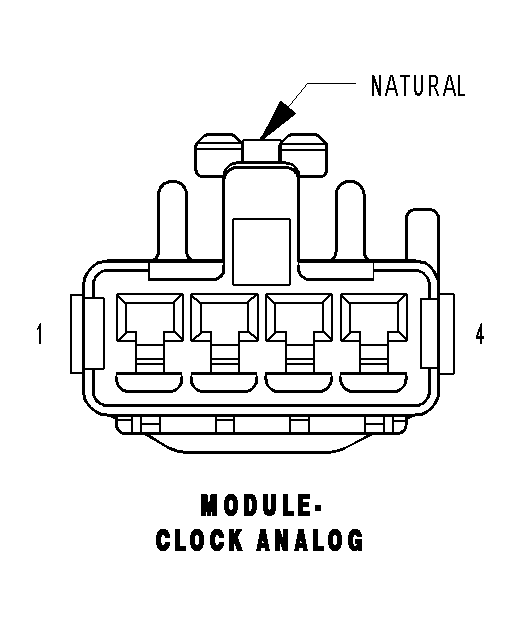

Clock Analog Module Connector End View

MODULE-CLOCK ANALOG - NATURAL 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A117 20RD/DG	FUSED B(+) (I.O.D.)
2	Z909 20BK/LG	GROUND
3	E12 20OR/GY	PANEL LAMPS DRIVER
4	-	-
