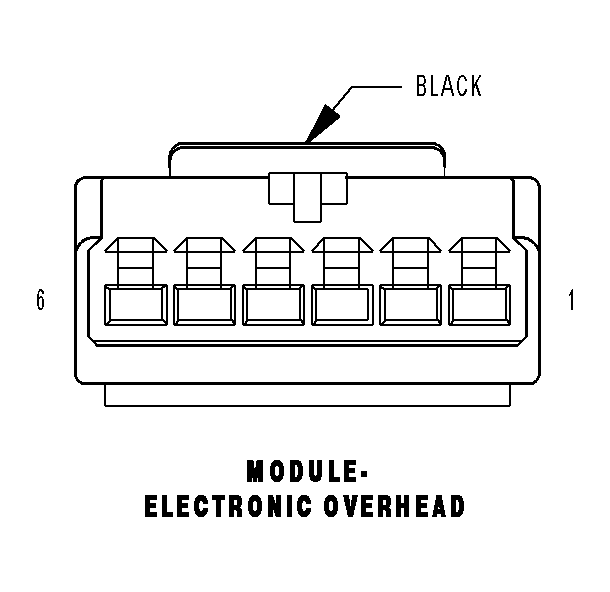

Electronic Overhead Module Connector End View

MODULE-ELECTRONIC OVERHEAD - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D55 20WT/OR	CAN B BUS (+)
2	D54 20WT	CAN B BUS (-)
3	A117 20RD/DG	FUSED B(+) (I.O.D.)
4	Z909 20BK/LG	GROUND
5	F880 20PK	FUSED ACCESSORY DELAY RELAY OUTPUT
6	-	-
