Negative - Engine Compartment

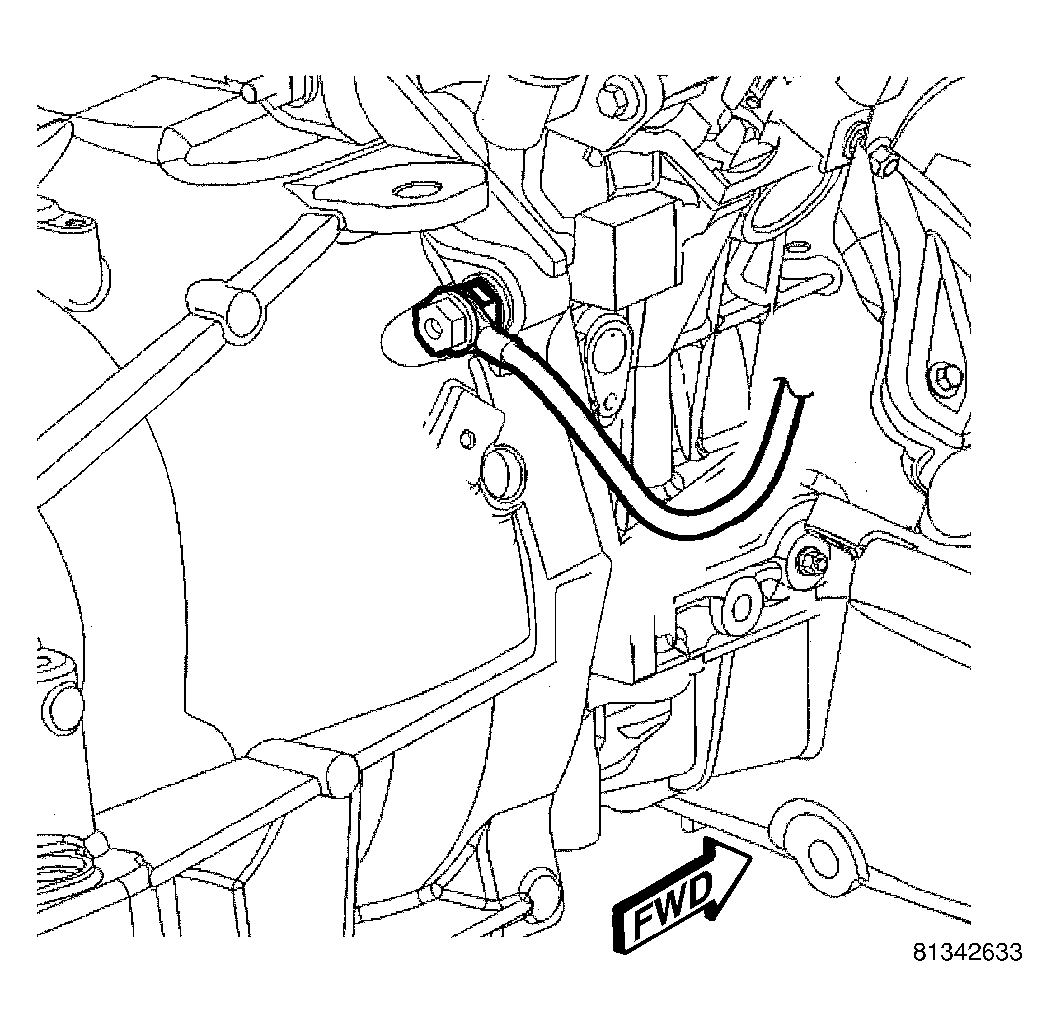

Fig 1: Fastener Securing Battery Negative Cable To Transmission Housing
GC0015615Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the battery negative cable in the engine compartment.
  2. Raise vehicle on hoist, (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE) .
  3. Install the fastener securing the battery negative cable to the transmission housing. Torque the bolt to 11 N.m (8 ft. lbs.).
  4. One at a time, install the battery cable retaining pushpins, fasteners and routing clips until the cable is installed exactly where it was in the vehicle.
  5. Lower vehicle.

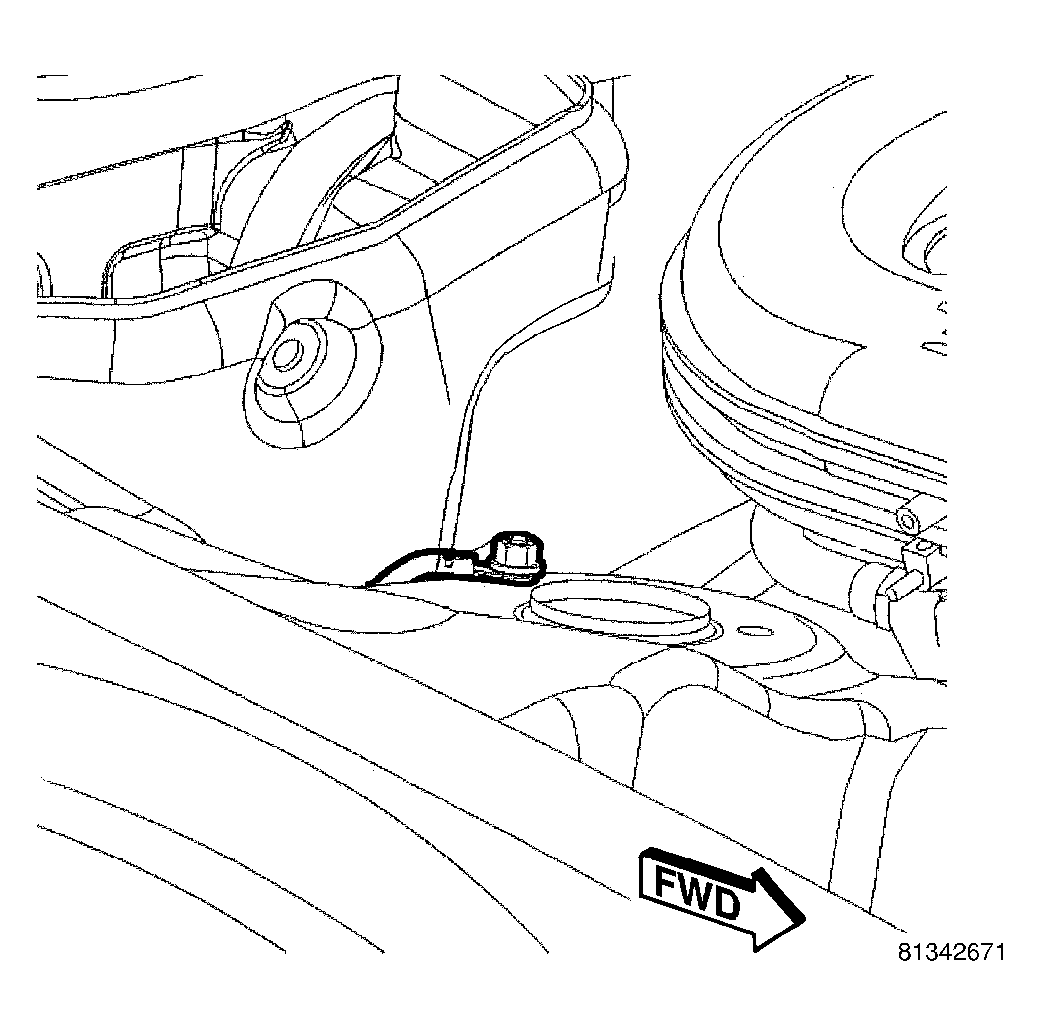

    Fig 2: Fastener Securing Battery Negative Cable To Right Front Strut Tower
    GC0015616Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the fastener securing the battery negative cable to the right front strut tower.
  7. Connect the battery negative cable.
  8. Install the spare tire cover.
