Starter Motor: Installation: 2.7L

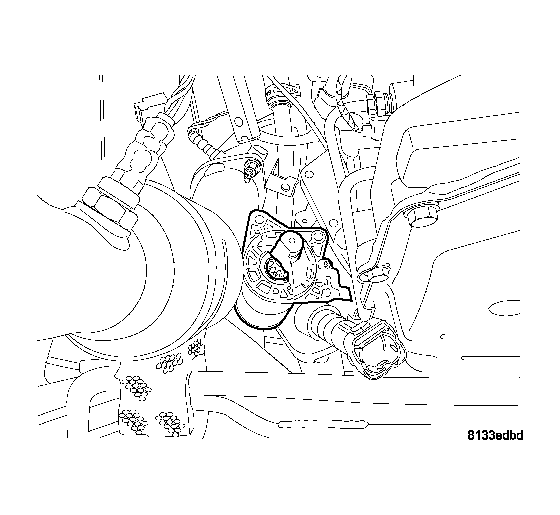

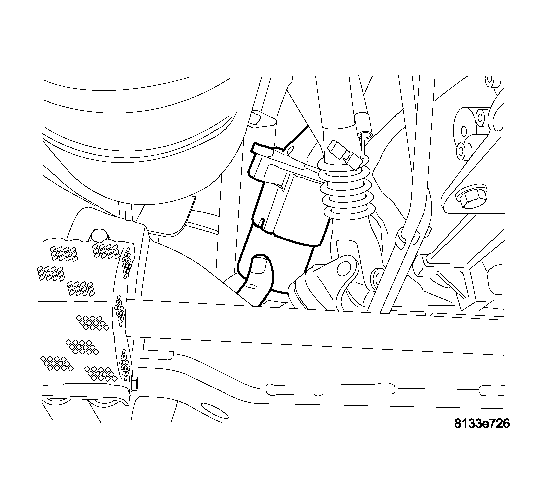

Fig 1: STARTER REMOVAL/INSTALL

Courtesy of DAIMLERCHRYSLER CORP.

Work starter up and pass the transmission and exhaust.

Fig 2: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Work starter up and pass the intermediate shafts.

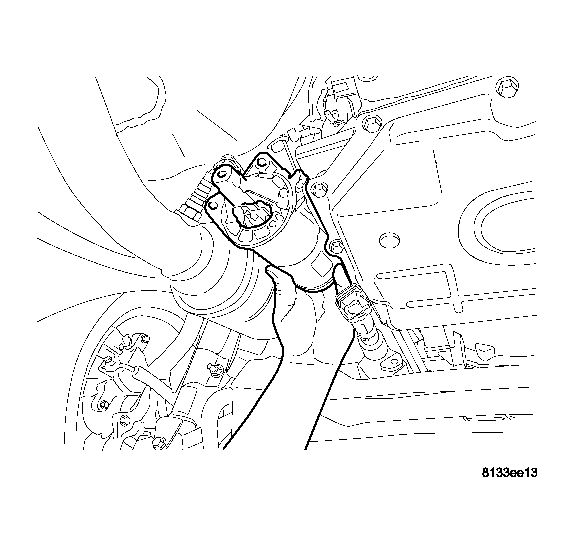

Fig 3: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Starter pass the intermediate shaft.

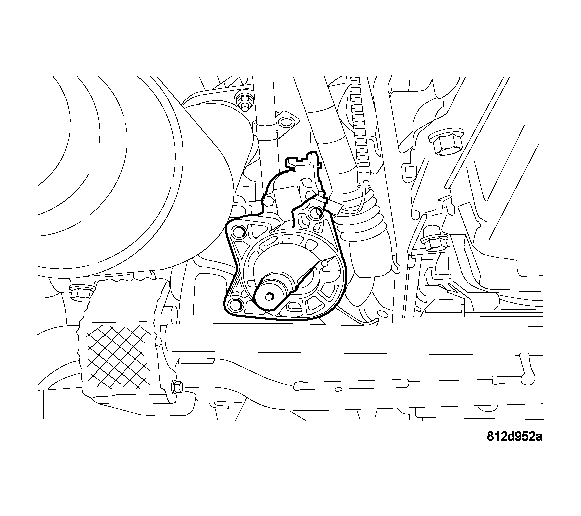

Fig 4: STARTER REMOVAL/INSTALL
Courtesy of DAIMLERCHRYSLER CORP.
Angle starter up toward engine.

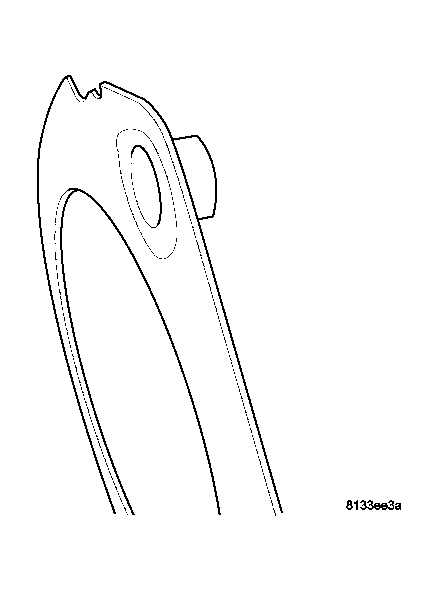

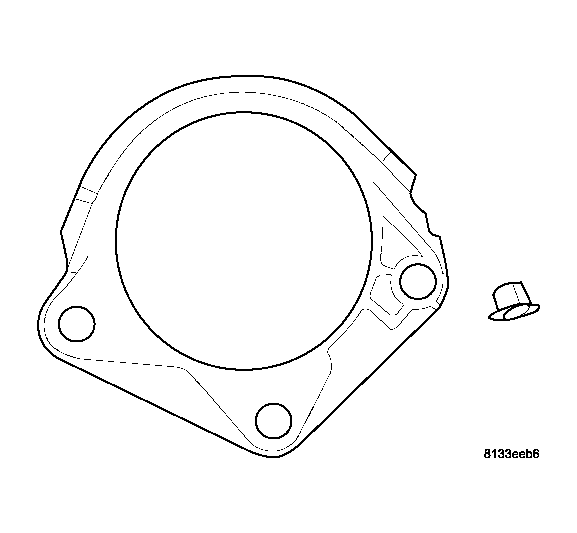

Fig 5: DUST SHIELD AND PLASTIC RETAINER
Courtesy of DAIMLERCHRYSLER CORP.
Install plastic retainer into starter dust shield. The dust shield has TOP marked on it and the plastic retainer goes in the hole.

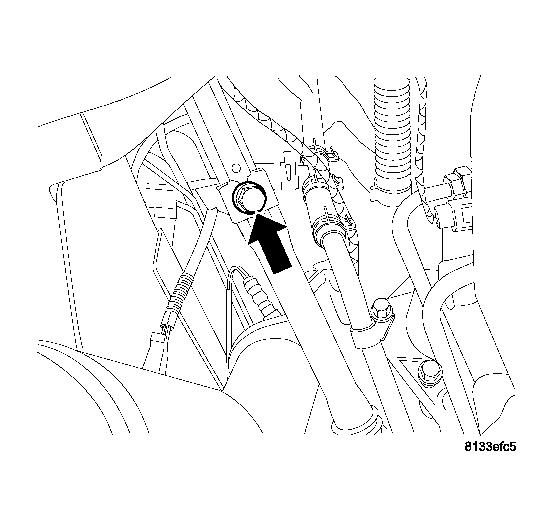

Fig 6: DUST SHIELD AND PLASTIC RETAINER
Courtesy of DAIMLERCHRYSLER CORP.
Plastic retainer installed.
Install dust shield to the engine block using the plastic retainer to hold dust shield in place.

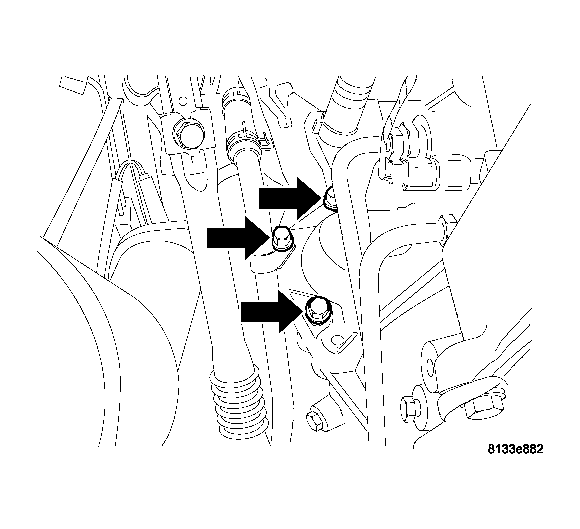

Fig 7: STARTER BOLTS
Courtesy of DAIMLERCHRYSLER CORP.
Install starter.
Install starter bolts.
Tighten bolts to 54.2 N.m (40 ft. lbs.).

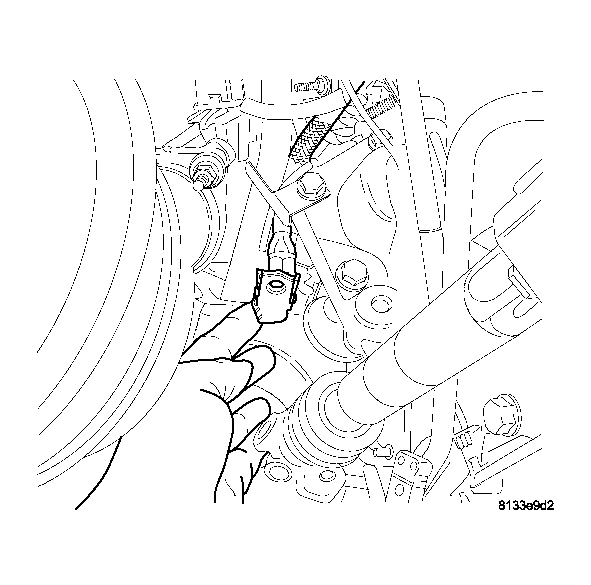

Fig 8: STARTER CABLE
Courtesy of DAIMLERCHRYSLER CORP.
Install electrical connection to starter.

Fig 9: STEERING SHAFT REMOVED
Courtesy of DAIMLERCHRYSLER CORP.
Match flats inside intermediate shaft with that in intermediate shaft extension, then slide intermediate shaft onto extension.

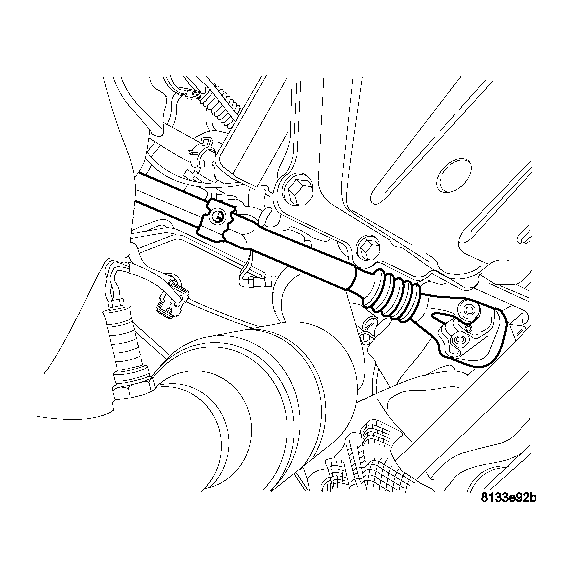

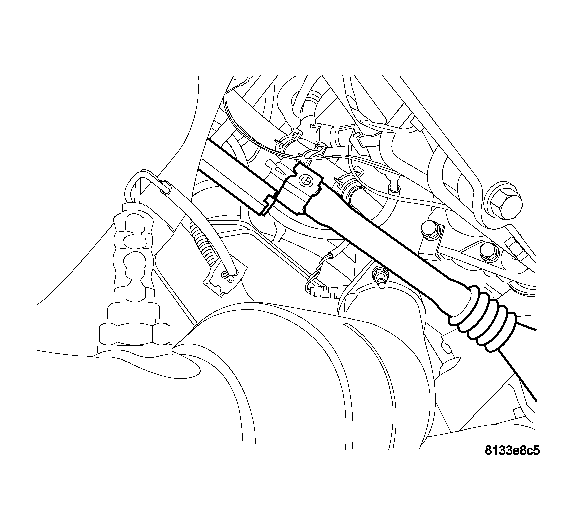

Fig 10: STEERING SHAFT CONNECTED
Courtesy of DAIMLERCHRYSLER CORP.
Aline the hole in the shafts.

Fig 11: STEERING SHAFT CENTER BOLT
Courtesy of DAIMLERCHRYSLER CORP.
Install pinch bolt fastening intermediate shaft to intermediate shaft extension.
Tighten pinch bolt to 43 N.m (32 ft. lbs.).
Install the underbody splash shield.
Lower vehicle.
Remove the steering wheel holder.
Connect negative battery cable.
