Exhaust System: Muffler: Description

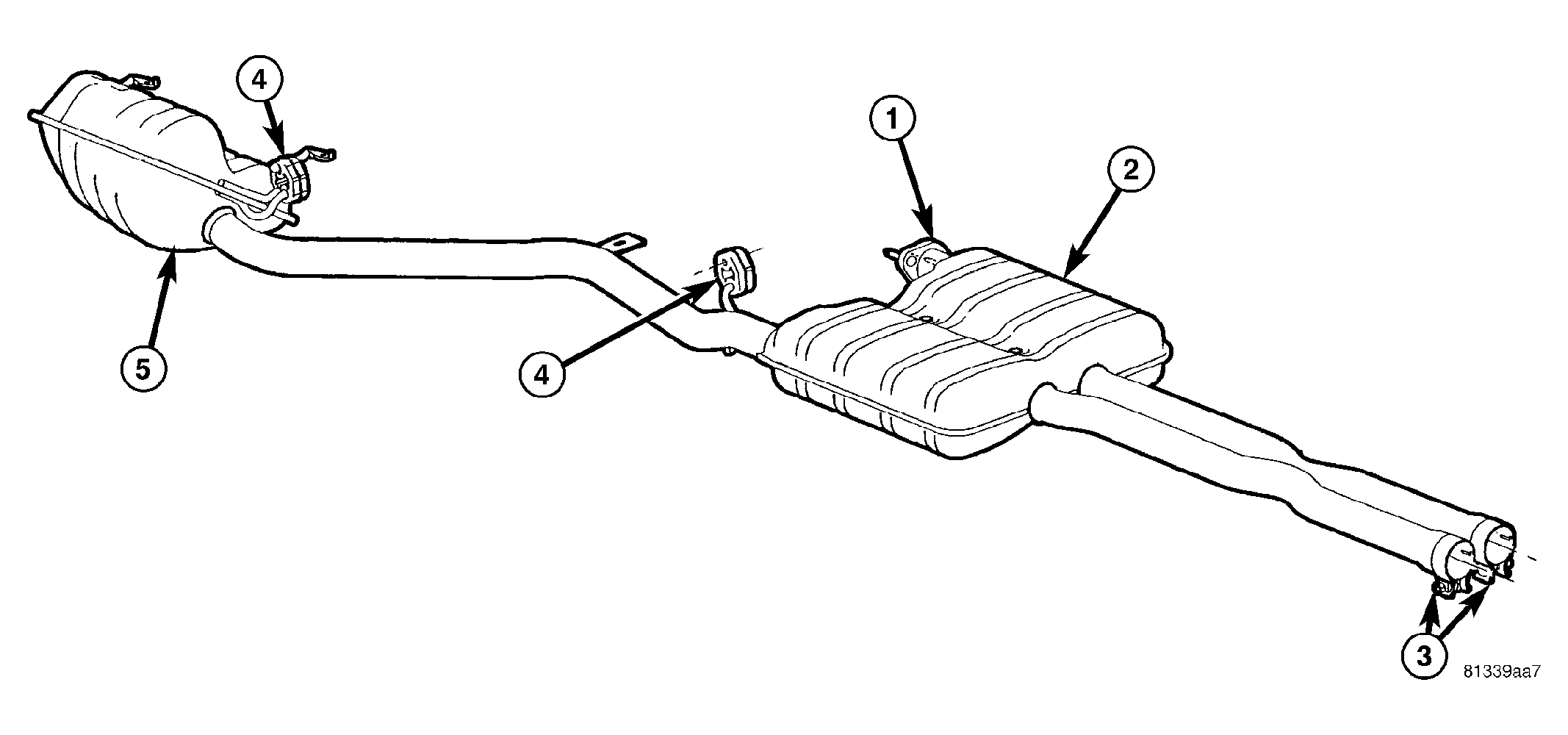

Fig 1: Exhaust Pipe Assembly
GC0012943Courtesy of DAIMLERCHRYSLER CORP.
1 - BALL FLANGE
2 - FRONT EXHAUST PIPE MUFFLER AND RESONATOR ASSEMBLY
3 - BAND CLAMPS
4 - ISOLATOR
5 - RH REAR RESONATOR AND TAILPIPE ASSEMBLY

The 5.7L RH muffler and tailpipe assembly consists of:

  1. Front exhaust pipe and muffler (2) and resonator (5)
  2. Ball flange (1)
  3. Isolators (4)
  4. Band clamps (3)

The muffler and resonator assembly is serviced as an assembly.

The 2.7L/3.5L exhaust pipe assembly consists of:

  1. Muffler and resonator assembly module
  2. Isolators

The muffler and resonator assembly is serviced as an assembly.
