Fuel Delivery: Tank-Fuel: Installation

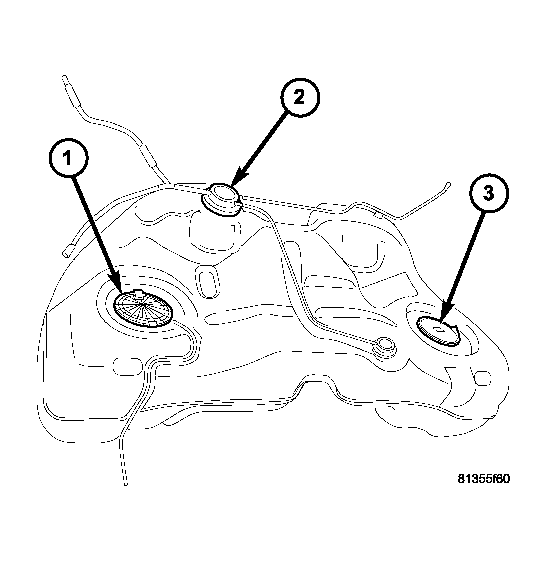

Fig 1: FUEL TANK ASSEMBLY
GC0013077Courtesy of DAIMLERCHRYSLER CORP.
1 - Right Side Module
2 - Control Valve
3 - Left Side Module (Fuel Pump Module)
  1. Support fuel tank with transmission jack.

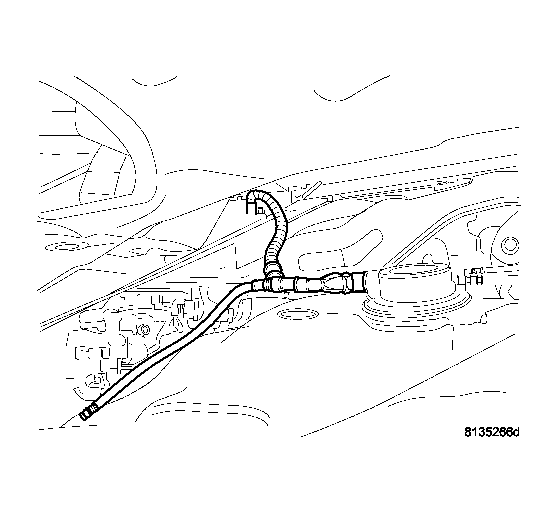

    Fig 2: TANK VENT LINE ROUTING
    GC0013076Courtesy of DAIMLERCHRYSLER CORP.
  2. Raise tank and push filler tube vent line through bracket.

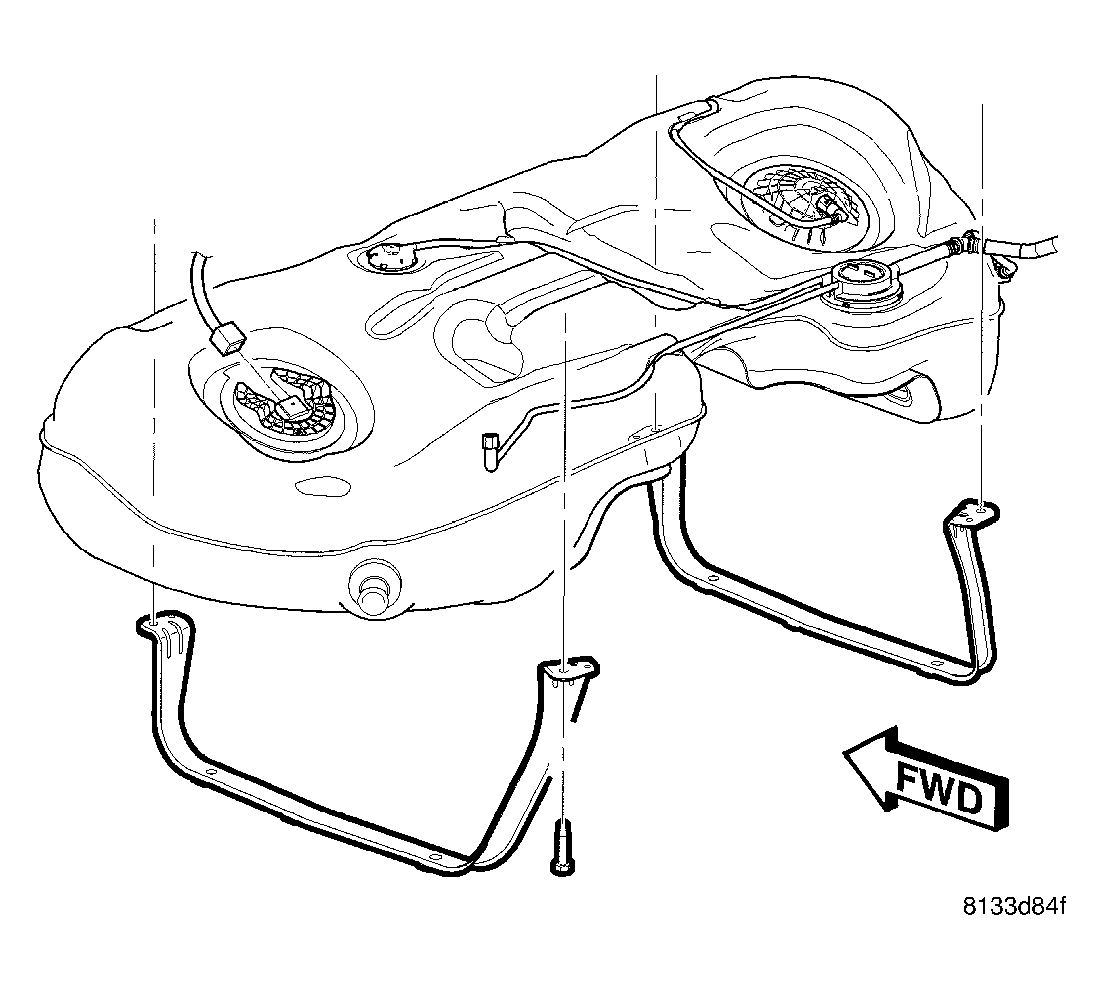

    Fig 3: TANK STRAPS
    GC0013072Courtesy of DAIMLERCHRYSLER CORP.
  3. Fuel tank strap bolt locations.

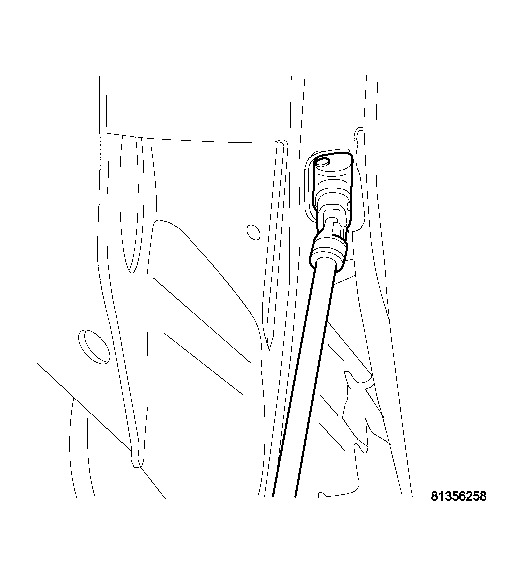

    Fig 4: TANK STRAP BOLTS
    GC0013086Courtesy of DAIMLERCHRYSLER CORP.
  4. Install bolt for fuel tank strap and tighten.

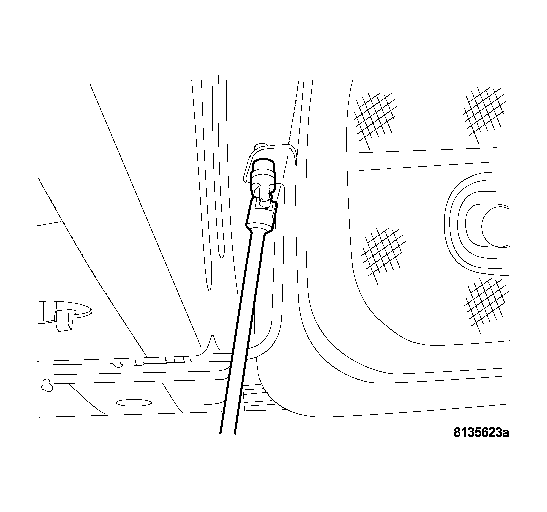

    Fig 5: TANK STRAP BOLTS
    GC0013085Courtesy of DAIMLERCHRYSLER CORP.
  5. Install bolt for fuel tank strap and tighten.

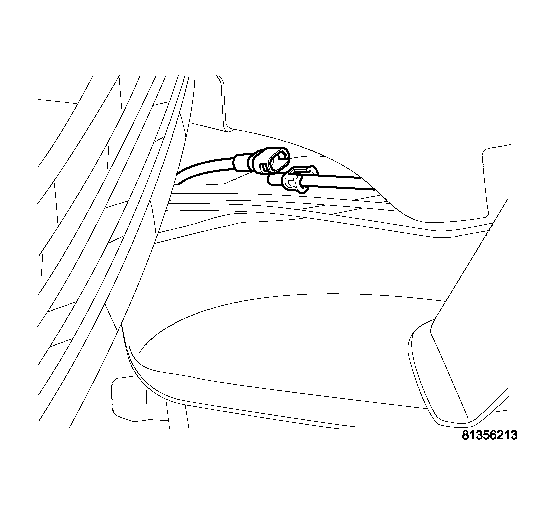

    Fig 6: VAPOR CONNECTION ON TANK
    GC0013084Courtesy of DAIMLERCHRYSLER CORP.
  6. Connect vapor line.

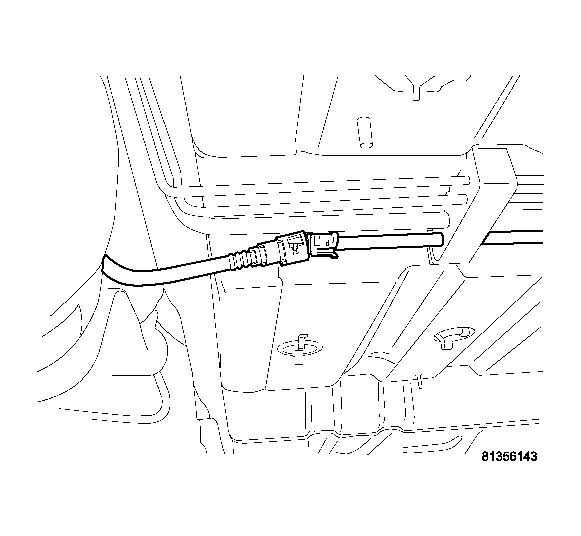

    Fig 7: FUEL LINE DISCONNECTED
    GC0013083Courtesy of DAIMLERCHRYSLER CORP.
  7. Connect the fuel supply line.

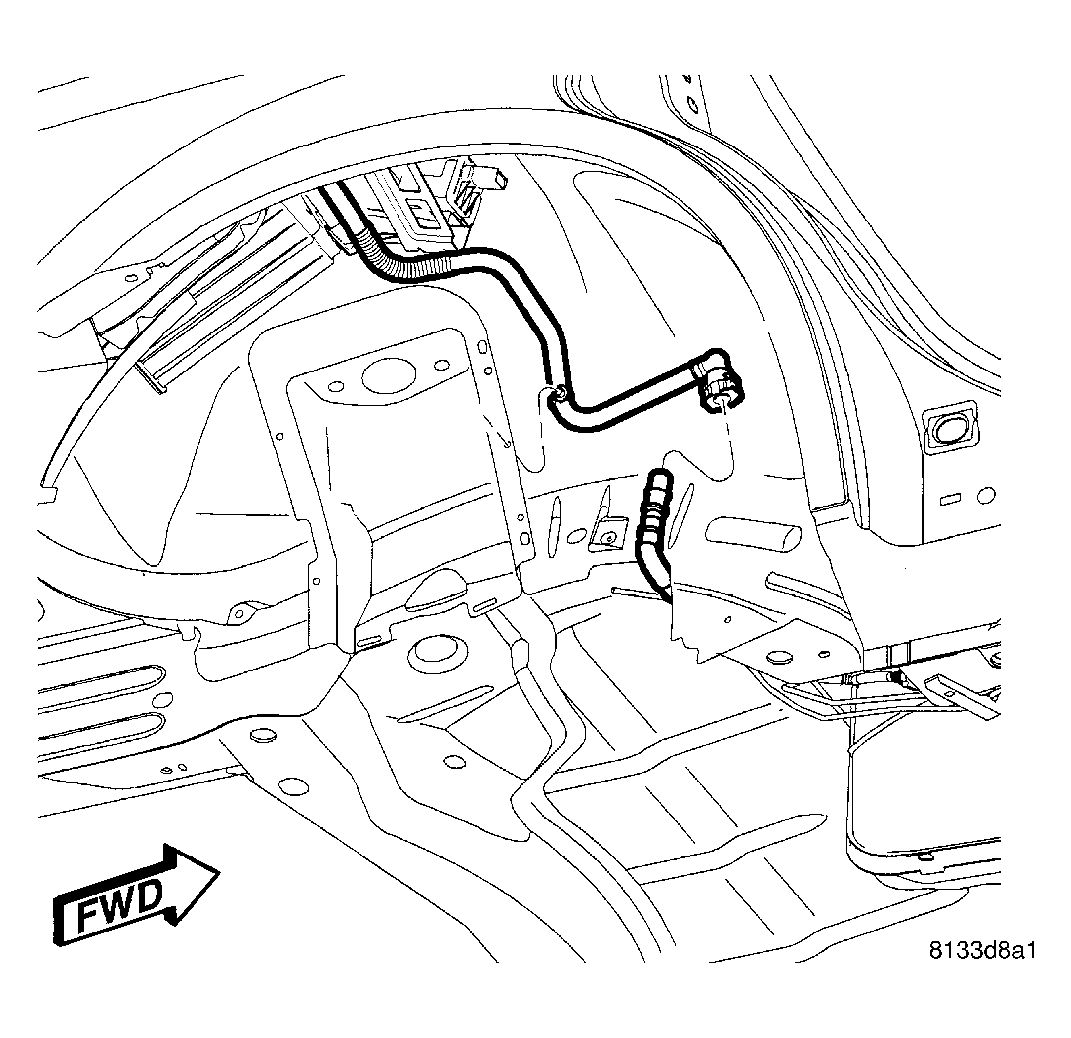

    Fig 8: EVAP LINE
    GC0013073Courtesy of DAIMLERCHRYSLER CORP.
  8. Connect the EVAP line in the right rear wheel well.
  9. Install the drive shaft, (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT - INSTALLATION)
  10. Install the exhaust system,EXHAUST SYSTEM

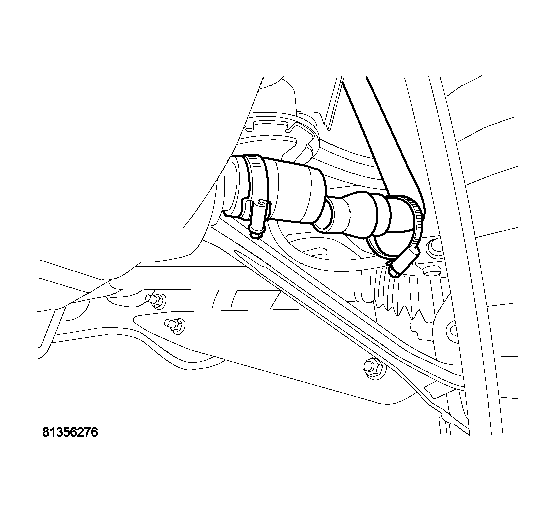

    Fig 9: FILLER TUBE DISCONNECTED
    GC0013087Courtesy of DAIMLERCHRYSLER CORP.
  11. Install metal filler tube to rubber tube on fuel tank.

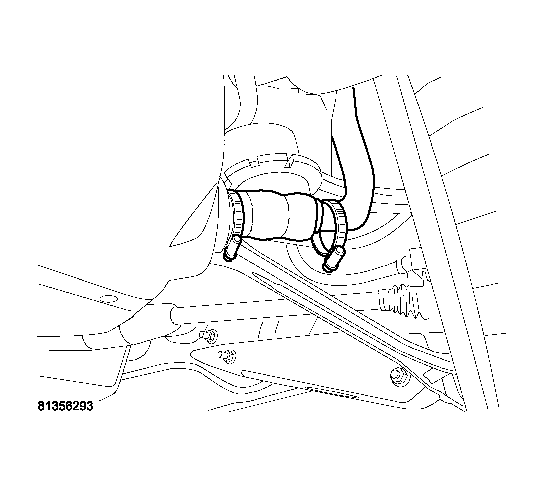

    Fig 10: FILLER TUBE CLAMP REMOVED
    GC0013088Courtesy of DAIMLERCHRYSLER CORP.
  12. Install clamp to filler tube and tighten

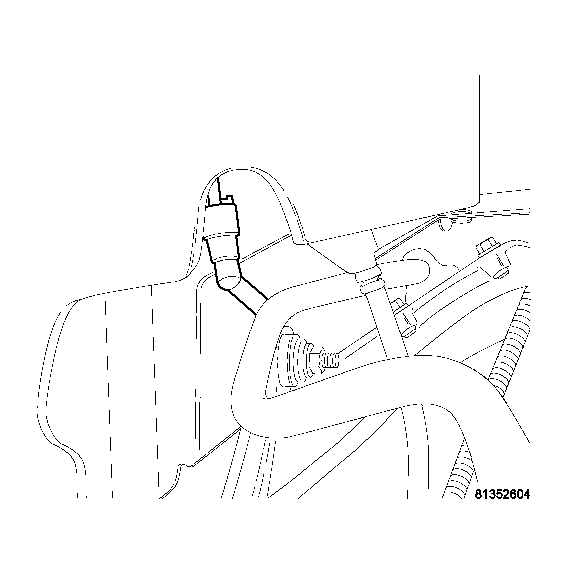

    Fig 11: VENT LINE
    GC0013074Courtesy of DAIMLERCHRYSLER CORP.
  13. Connect the filler tube vent line.

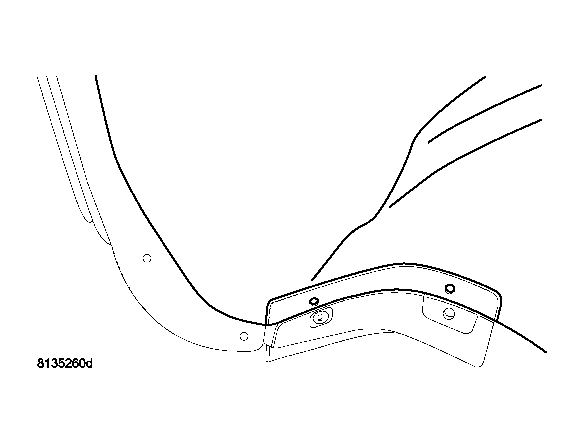

    Fig 12: SPLASH SHIELD
    GC0013075Courtesy of DAIMLERCHRYSLER CORP.
  14. Install the inner splash shield.

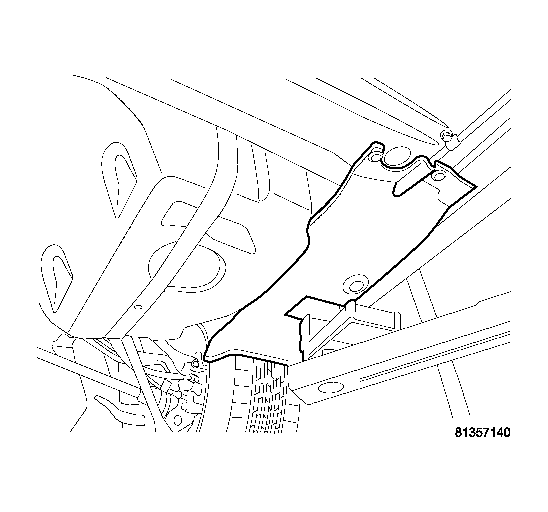

    Fig 13: SPLASH SHIELD DR SIDE
    GC0013090Courtesy of DAIMLERCHRYSLER CORP.
  15. Install the left underbody splash shield.

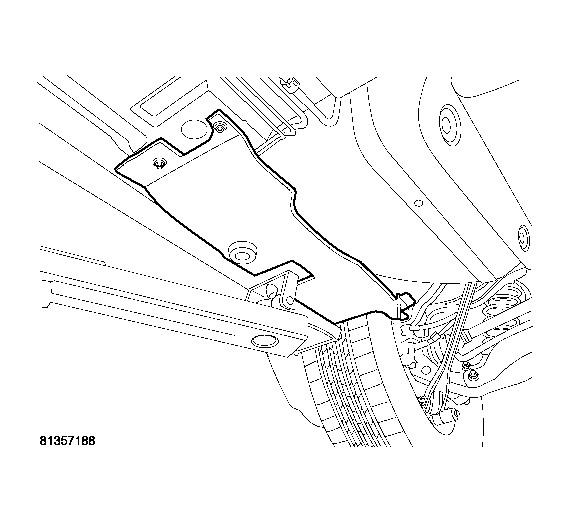

    Fig 14: SPLASH SHIELD PASS SIDE
    GC0013091Courtesy of DAIMLERCHRYSLER CORP.
  16. Install the right underbody splash shield.
  17. Install left rear tire.
  18. Lower vehicle.
    Fig 15: LEFT SIDE MODULE ORIENTATION
    GC0013034Courtesy of DAIMLERCHRYSLER CORP.
  19. Install module and align marks on the module for proper orientation.
    Fig 16: TOOL 9430 LEFT SIDE MODULE
    GC0013036Courtesy of DAIMLERCHRYSLER CORP.
  20. Install module lock-ring.
  21. Use special tool #9340 to tighten left side module lock ring.
  22. Connect the electrical connector to left side module and install plastic access cover.
    Fig 17: RIGHT SIDE MODULE ORIENTATION
    GC0013045Courtesy of DAIMLERCHRYSLER CORP.
  23. Install module and align marks on the module for proper orientation.
    Fig 18: TOOL 9430 RIGHT SIDE MODULE
    GC0013047Courtesy of DAIMLERCHRYSLER CORP.
  24. Install module lock-ring.
  25. Use special tool #9340 to tighten right side module lock ring.
  26. Connect the fuel supply line to module.
    Fig 19: ACCESS COVER RIGHT SIDE MODULE
    GC0013044Courtesy of DAIMLERCHRYSLER CORP.
  27. Install plastic access covers to floor pan right side.
    Fig 20: FOAM PAD UNDER SEAT
    GC0013033Courtesy of DAIMLERCHRYSLER CORP.
  28. Fold the foam pad covering access cover for modules back into place.
    Fig 21: REAR SEAT UP
    GC0013029Courtesy of DAIMLERCHRYSLER CORP.
  29. Install rear lower seat cushion
    Fig 22: REAR SEAT
    GC0013028Courtesy of DAIMLERCHRYSLER CORP.
  30. Rear lower seat cushion installed.
    Fig 23: DRAINING FUEL
    GC0013027Courtesy of DAIMLERCHRYSLER CORP.
  31. Fill fuel tank.
  32. Connect negative battery cable.
  33. Fill fuel tank. Use the scan tool to pressurize the fuel system. Check for leaks.
