Sensor-Inlet Air Temperature: Installation: 2.7L

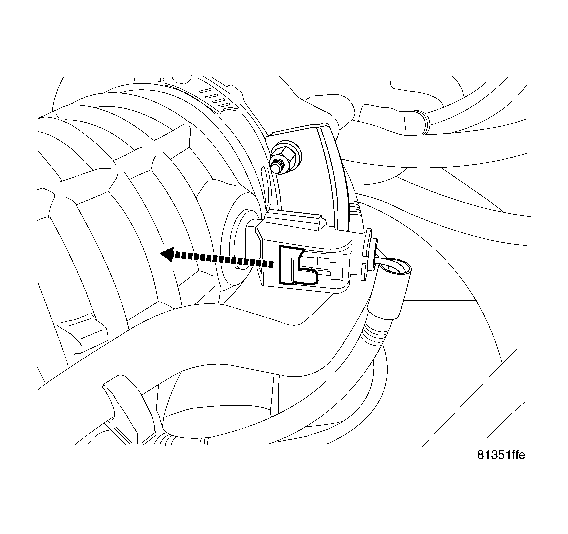

Fig 1: SENSOR ORIENTATION

Courtesy of DAIMLERCHRYSLER CORP.

1. Install sensor. Rotate for proper orientation.

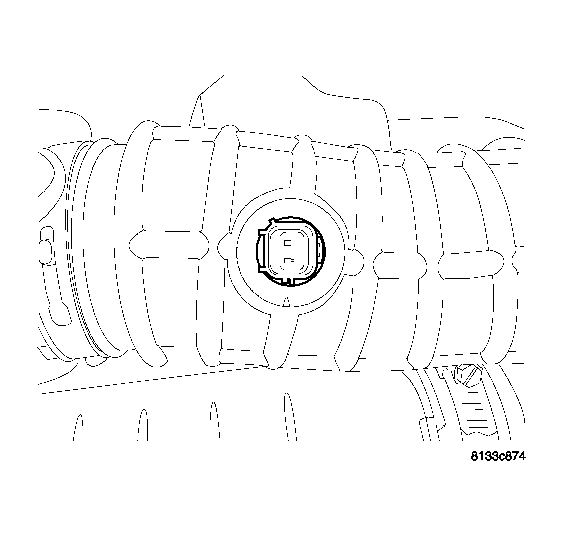

   Fig 2: SENSOR INSTALLED

   Courtesy of DAIMLERCHRYSLER CORP.
2. Proper orientation of sensor.

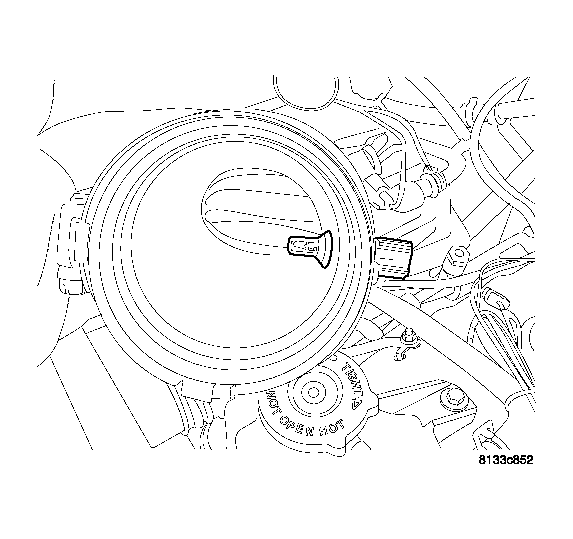

   Fig 3: LOCKED CONNECTOR

   Courtesy of DAIMLERCHRYSLER CORP.
3. Install electrical connector and lock.
4. Connect negative battery cable.
