Sensor-Camshaft Position: Removal: 2.7L

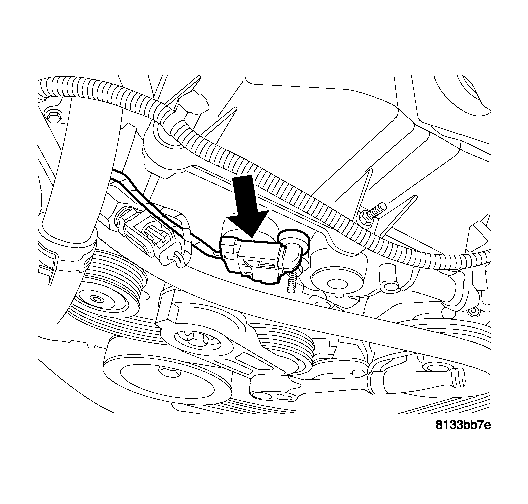

Fig 1: CAMSHAFT POSITION SENSOR
GC0015972Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect negative battery cable.
  2. Unlock and disconnect electrical connector.
    Fig 2: CAMSHAFT POSITION SENSOR REMOVAL/INSTALLATION
    GC0015973Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove mounting bolt.
  4. Remove sensor.
