Sensor-Camshaft Position: Removal: 3.5L

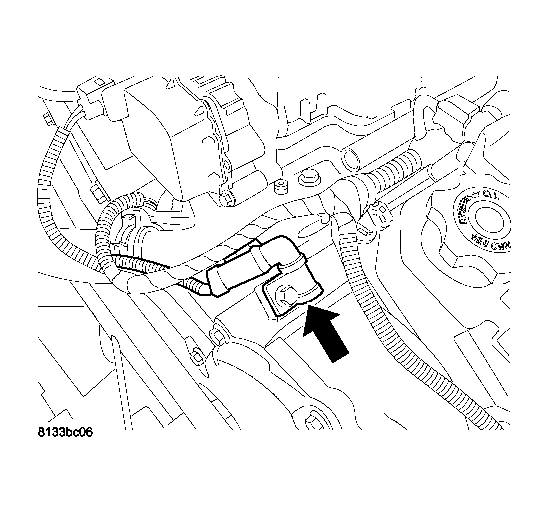

Fig 1: CAMSHAFT POSITION SENSOR
GC0015974Courtesy of DAIMLERCHRYSLER CORP.
  1. Camshaft Position Sensor location.
  2. Disconnect negative battery cable.

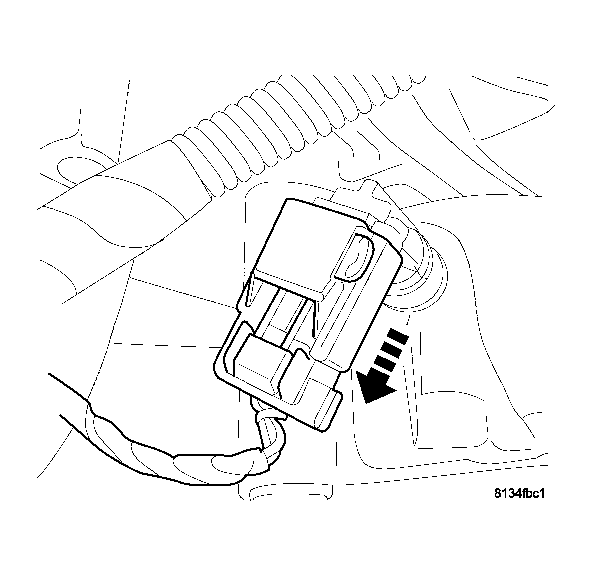

    Fig 2: CONNECTOR REMOVAL
    GC0015977Courtesy of DAIMLERCHRYSLER CORP.
  3. Unlock electrical connector.
  4. Remove electrical connector.

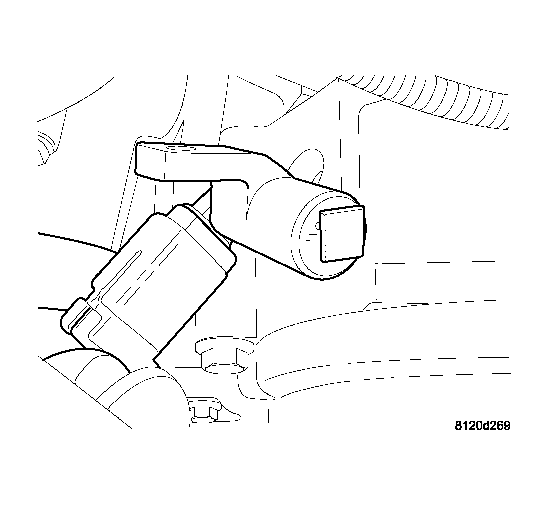

    Fig 3: CAMSHAFT POSITION SENSOR SPACER
    GC0015975Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove mounting bolt.
  6. Remove sensor.
