Controller Antilock Brake: Description

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

The Controler Antilock Brake (CAB) is mounted to the Hydraulic Control Unit (HCU) and operates the ABS system (Fig 1).

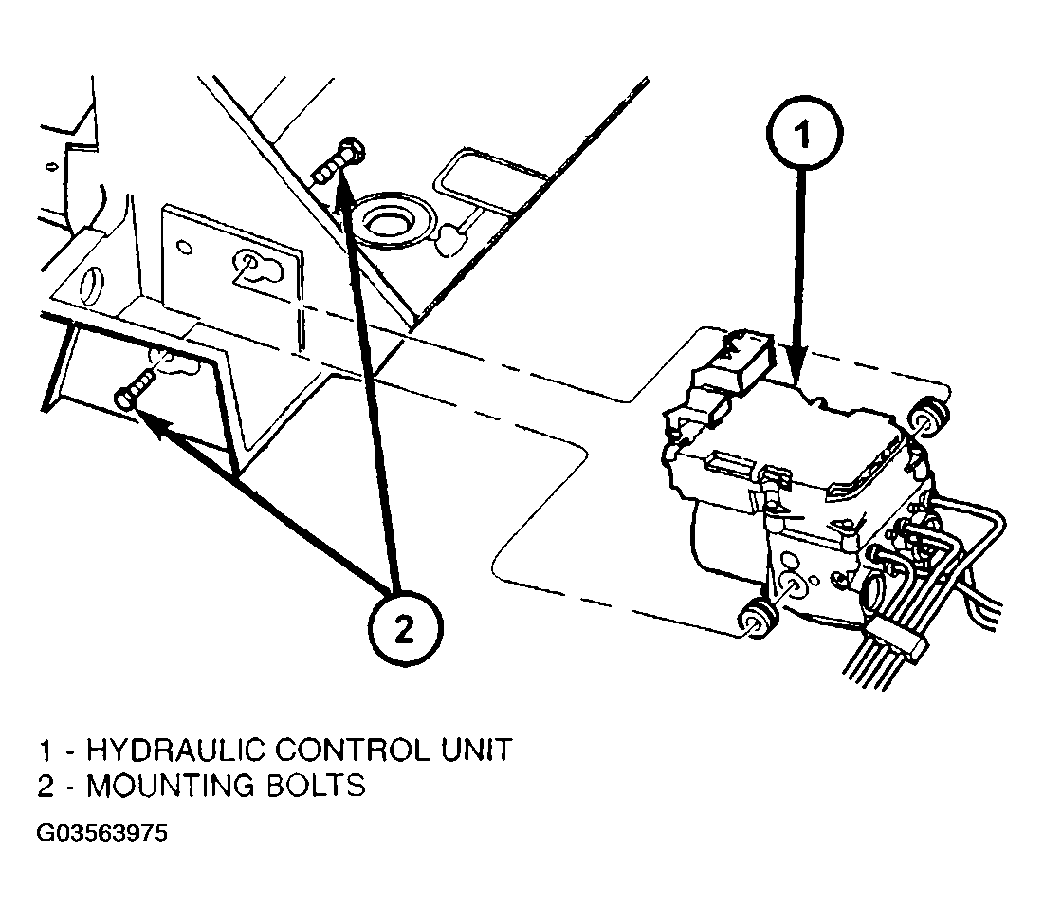

Fig 1: Identifying Hydraulic Control Unit
G03563975Courtesy of DAIMLERCHRYSLER CORP.
