Push-Button Starter Switch: Installation

WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position switch (Fig 1) into instrument panel opening.

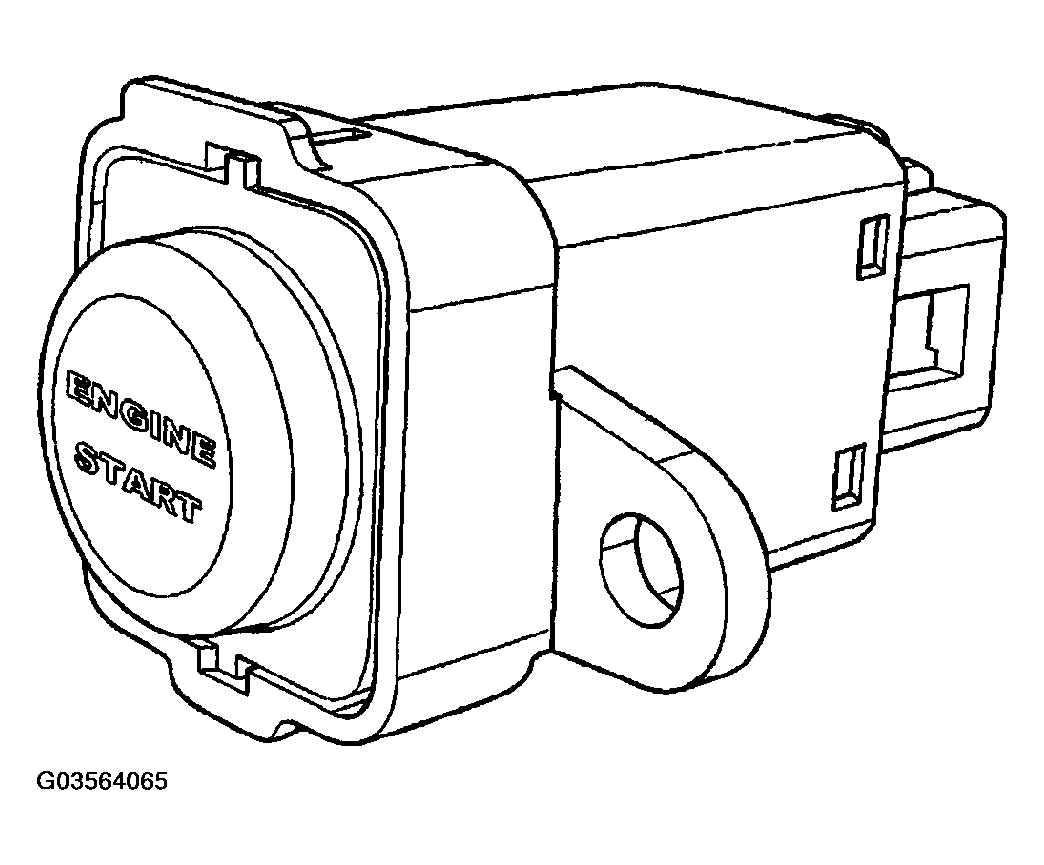

    Fig 1: Identifying Push-Button Starter
    G03564065Courtesy of DAIMLERCHRYSLER CORP.
  2. Install and tighten two switch retaining screws.
  3. Install electrical connector to back of switch.
  4. Install plastic panel below push-button switch.
