Section 331 (Speed Control): Switch: Installation

WARNING: This page is about a different car, the 2005 Dodge Pickup and 2005 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

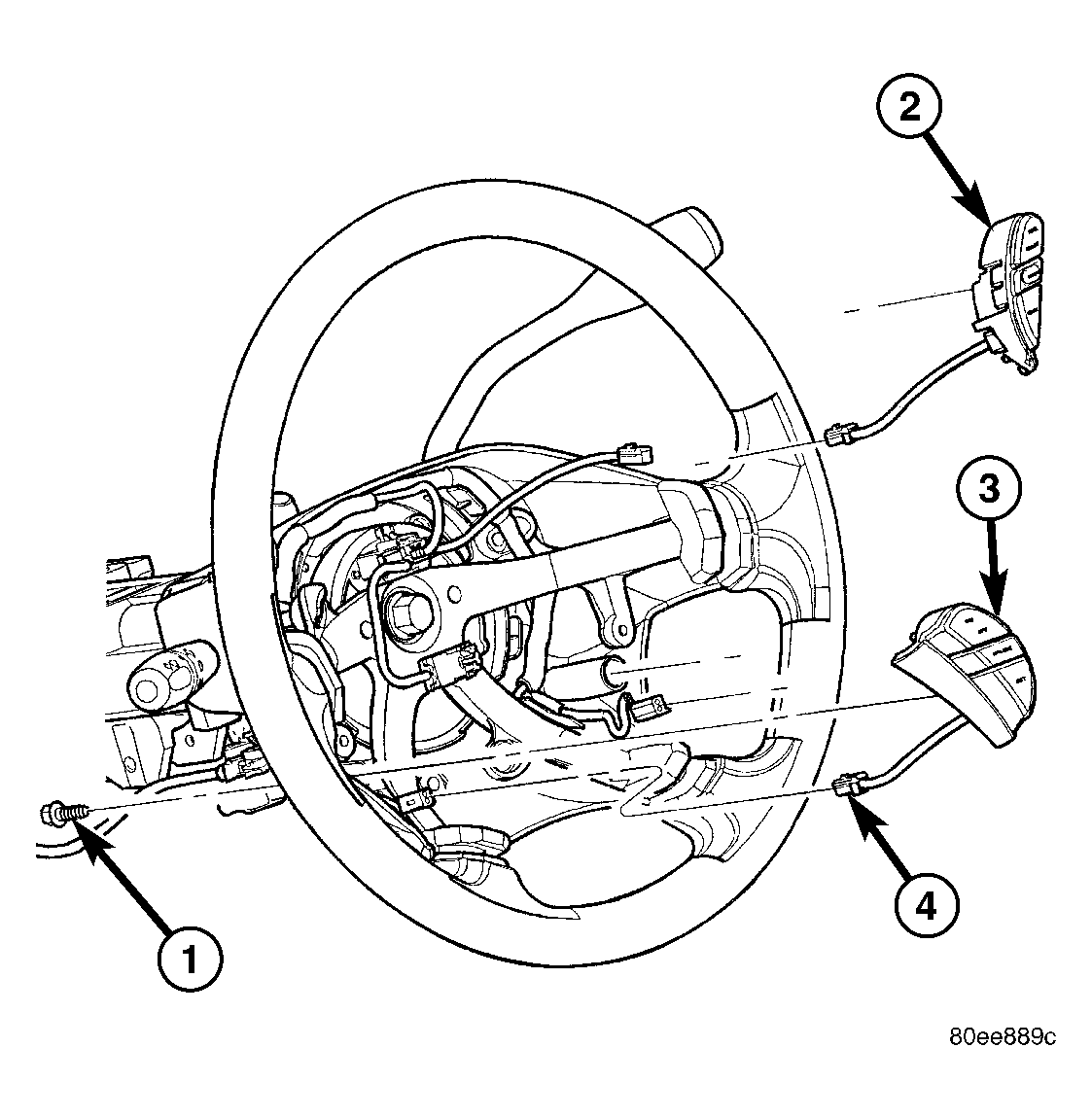

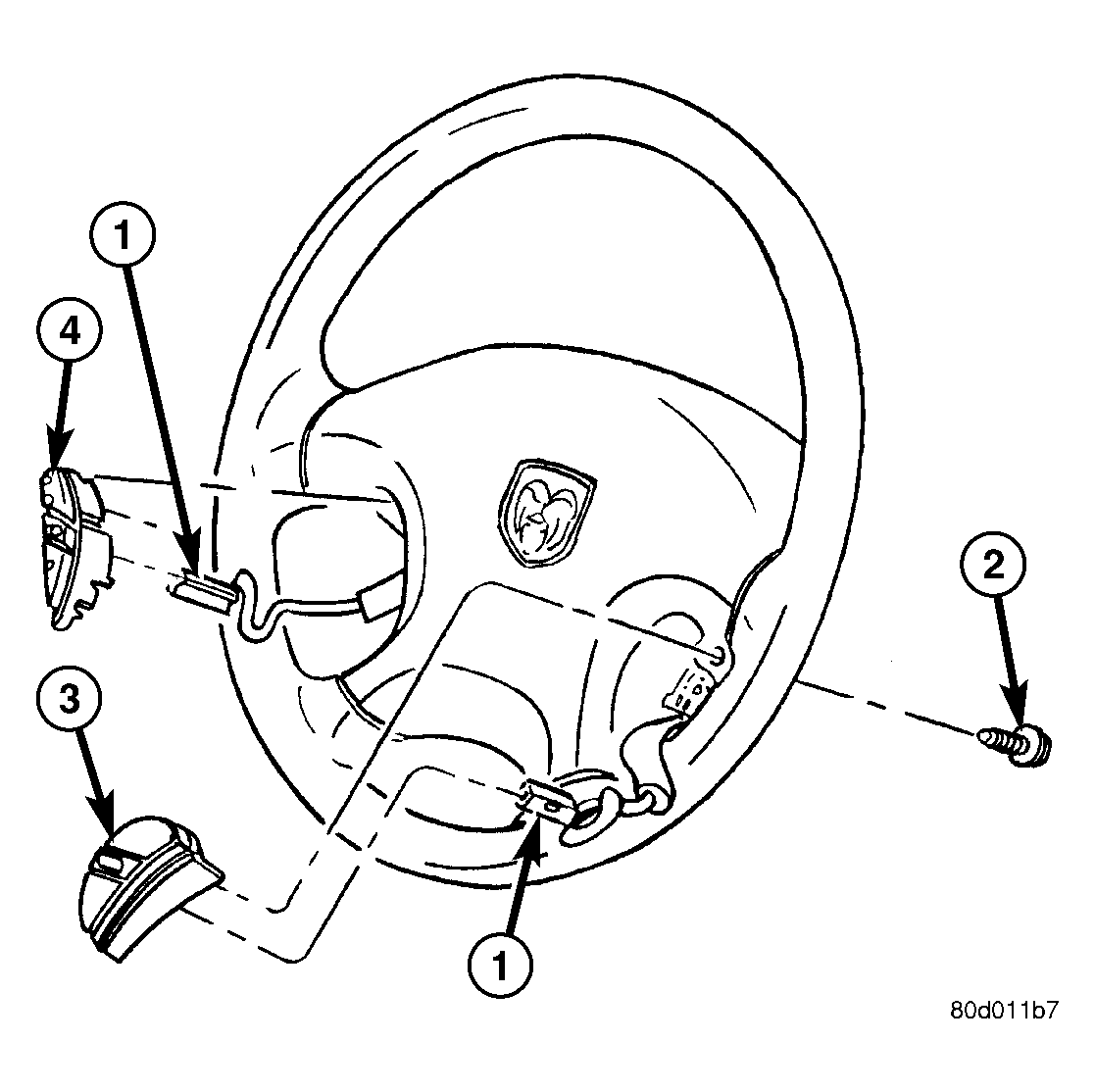

  1. Plug electrical connector into switch. See Figure, or connect pigtail wire harness to steering wheel wire harness. See Figure. Be sure wires are not pinched.
  2. Position switch to steering wheel.
  3. Install switch mounting screw and tighten. Refer to SPECIFICATIONS .
