Servo-Speed Control: Installation

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

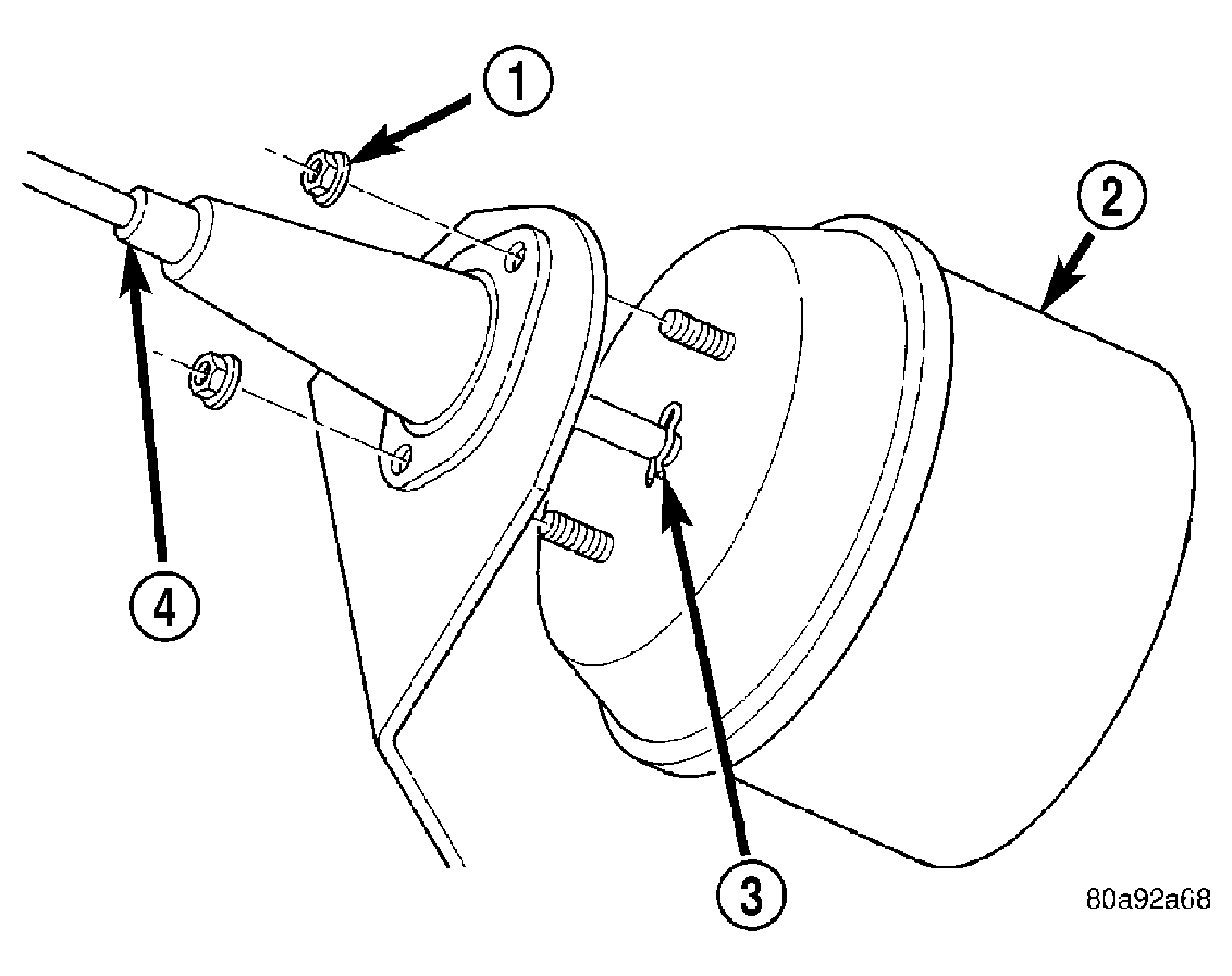

Fig 1: SERVO CABLE CLIP REMOVE/INSTALL - TYPICAL
GC0009179Courtesy of DAIMLERCHRYSLER CORP.
  1. Position servo (2) to mounting bracket.
  2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3).
  3. Insert servo mounting studs through holes in servo mounting bracket.
  4. Install two servo-to-mounting bracket nuts (1) and tighten. Refer to SPECIFICATIONS .

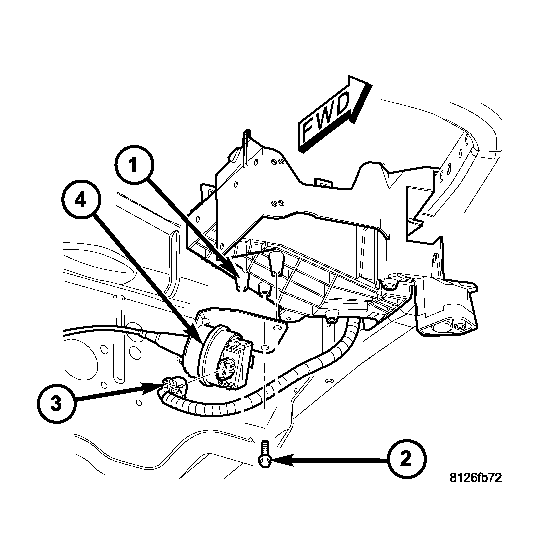

    Fig 2: SPEED CONTROL SERVO LOCATION
    GC0010424Courtesy of DAIMLERCHRYSLER CORP.
  5. Position servo assembly (4) to correct mounting lugs on bottom of PDC (1) and install 3 screws. Tighten 3 screws. Refer to SPECIFICATIONS .
  6. Connect vacuum line at servo.
  7. Connect electrical connector at servo.
  8. Connect servo cable to throttle body. Refer to INSTALLATION .
  9. Connect negative battery cable to battery.
  10. Before starting engine, operate accelerator pedal to check for any binding.
