Switch-Speed Control: Removal

WARNING: This page is about a different car, the 2005 Dodge Durango. However, it is still accessible from the selected car via links, so may be relevant.

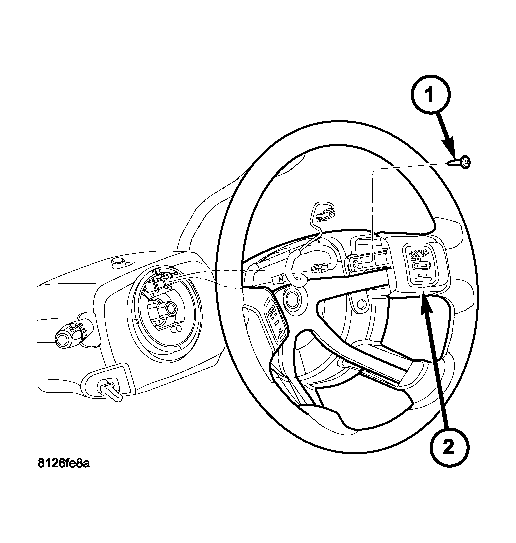

Fig 1: SPEED CONTROL SWITCH
GC0010425Courtesy of DAIMLERCHRYSLER CORP.
WARNING: BEFORE ATTEMPTING TO DIAGNOSE, REMOVE OR INSTALL ANY AIRBAG SYSTEM OR RELATED STEERING WHEEL AND STEERING COLUMN COMPONENTS YOU MUST FIRST DISCONNECT AND ISOLATE THE NEGATIVE (GROUND) BATTERY CABLE. WAIT 2 MINUTES FOR SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Disconnect and isolate negative battery cable from battery.
  2. Remove airbag module. Refer to RESTRAINTS - SERVICE INFORMATION .
  3. Unplug electrical connector.
  4. Remove speed control switch mounting screw (1) and remove switch from steering wheel.
