Window Motor: Installation

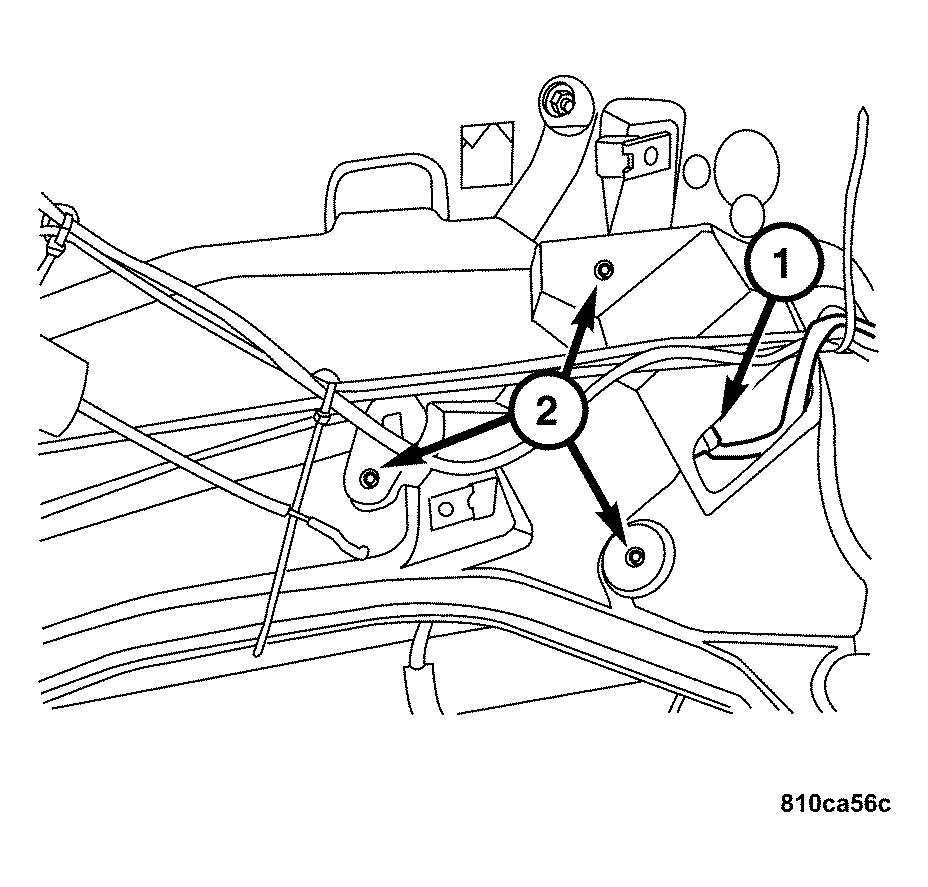

Fig 1: Identifying Power Window Motor Harness Connector & Attaching Rivets
GC0035569Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Insure the original mounting hole pattern is used when installing the power window motor.
NOTE: Before installing, lightly grease the gear on the power window motor.
  1. Position the power window motor into the door.
  2. Install the three power window motor attaching rivets (2).
  3. Connect the power window motor harness connector (1).

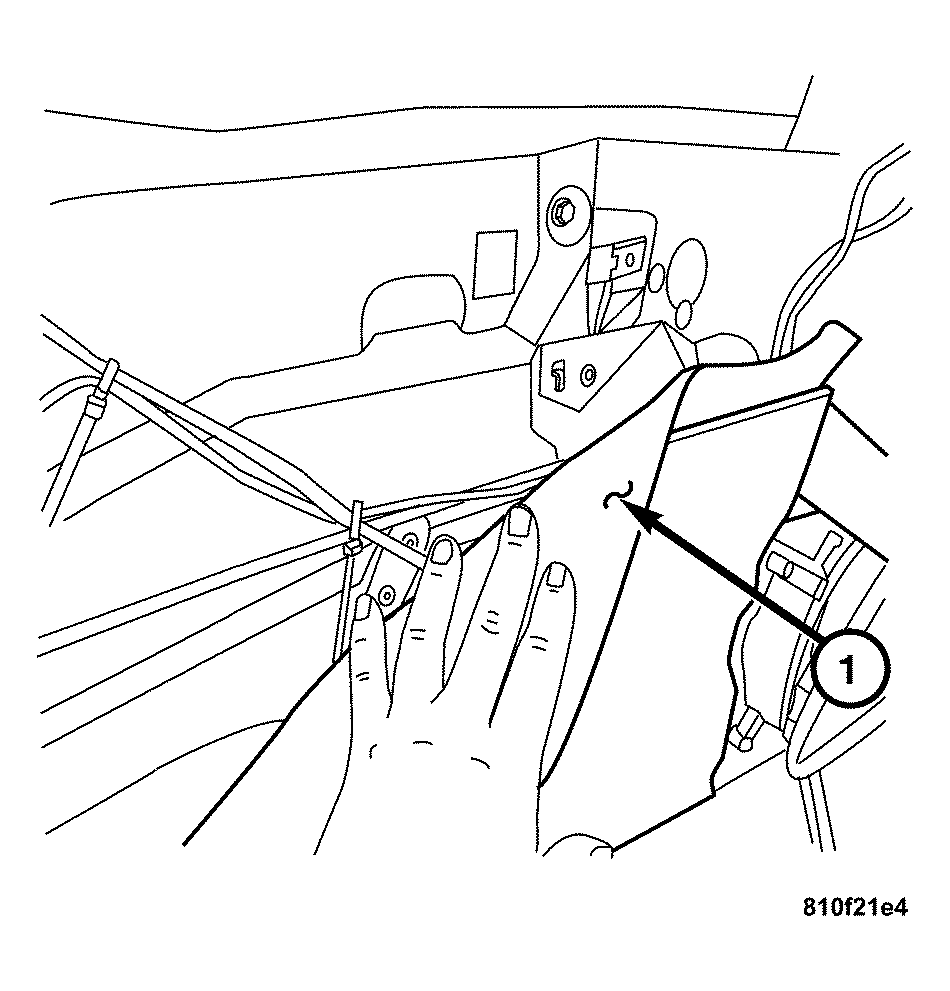

    Fig 2: Removing/Installing Door Watershield
    GC0035467Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the door watershield (1).
  5. Install the door interior trim panel. (Refer to BODY/DOOR - FRONT/TRIM PANEL - INSTALLATION) .
  6. Connect the negative battery cable.
