Body Control Module Connector End View (C1)

BODY CONTROL MODULE C1 - BLACK 2 WAY

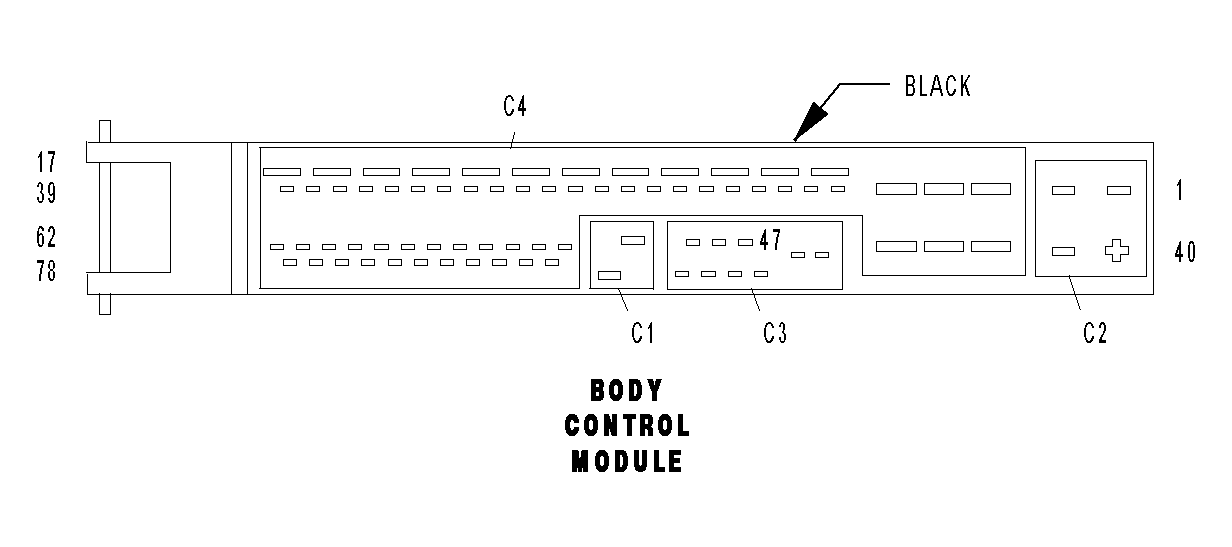

GCZH580020Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
50 20RD 12 VOLT SUPPLY
67 20BR CONTROL MODULE COOLING FAN CONTROL
