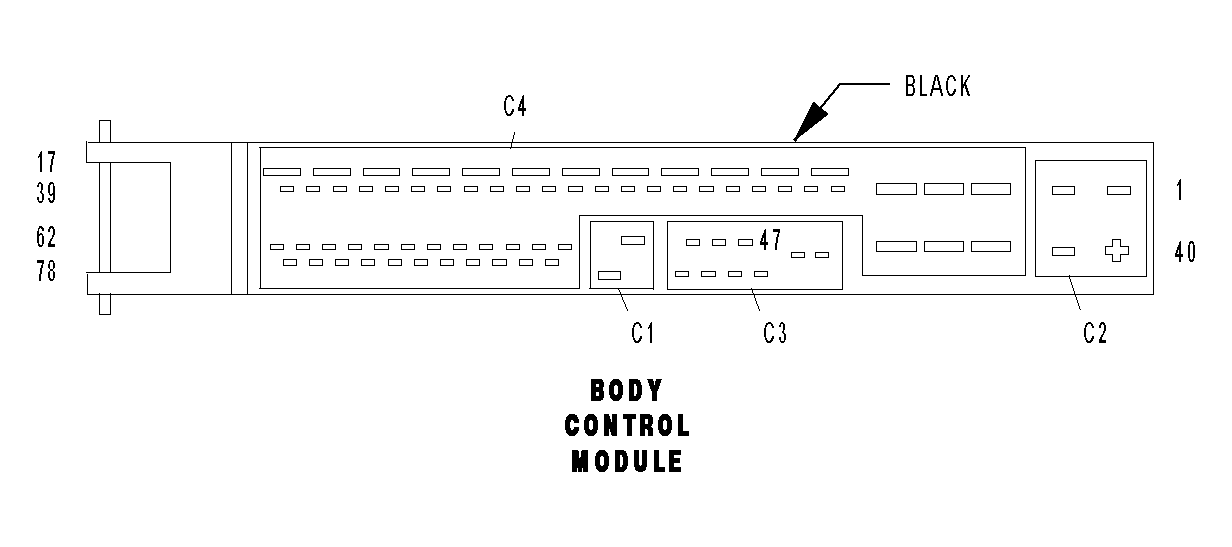

Body Control Module Connector End View (C2)

BODY CONTROL MODULE C2 - BLACK 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	14RD	WIPER LOW SPEED CONTROL
2	14DG	WIPER HIGH SPEED CONTROL
40	14WT	WIPER PARK SWITCH SENSE
41	14BK	12 VOLT SUPPLY
