Electronic Stability Program Off Switch Connector End View

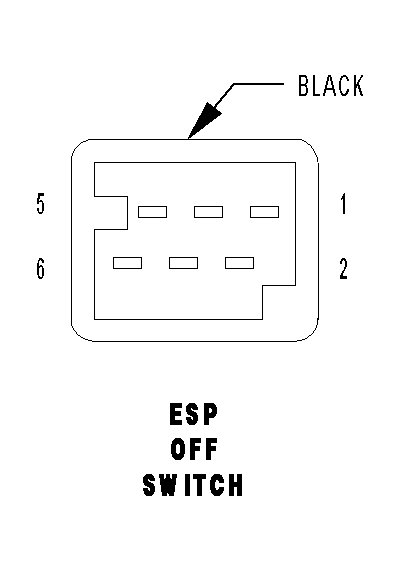

ESP OFF SWITCH - BLACK 6 WAY

GCZH580106Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 - -
2 20BK/BL ESP OFF SWITCH SENSE
3 - -
4 - -
5 - -
6 - -
