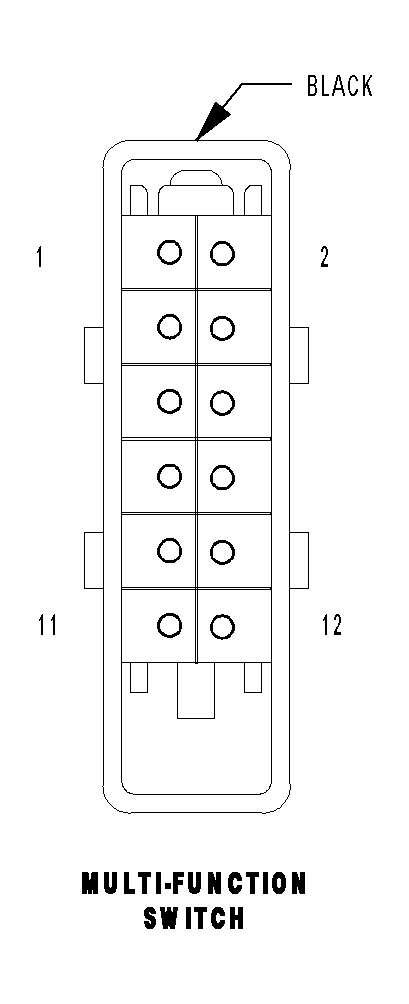

Multifunction Switch Connector End View
MULTI-FUNCTION SWITCH - BLACK 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | 16WT/YL | HEADLAMP SUPPLY |
| 2 | 16WT | HEADLAMP HIGH BEAM SUPPLY |
| 3 | - | - |
| 4 | 18BK/BL | TURN SIGNAL MONITORED GROUND |
| 5 | - | - |
| 6 | - | - |
| 7 | 18BL | WIPER SWITCH MUX |
| 8 | 16GY | WASHER PUMP MOTOR CONTROL |
| 8 | 18GY | WASHER PUMP MOTOR CONTROL |
| 9 | 18BK/DG | RIGHT TURN SIGNAL OUTPUT |
| 10 | 18BK/WT | LEFT TURN SIGNAL OUTPUT |
| 11 | 16BK/YL/DG | FUSED IGNITION SWITCH OUTPUT |
| 12 | - | - |
