Pulse Module B Connector End View

PULSE MODULE B - BLACK 2 WAY

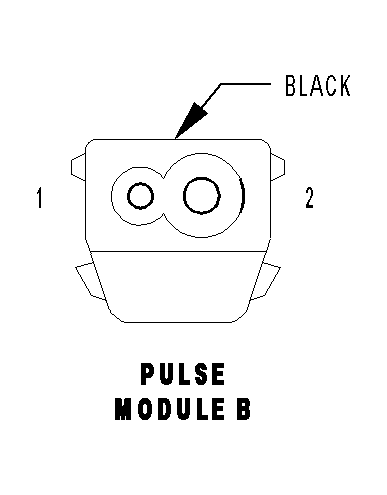

GCZH580195Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 16VT (A/T) FUSED IGNITION SWITCH OUTPUT
1 20VT (M/T) CLUTCH INTERLOCK SWITCH OUTPUT
2 14PK/RD FUSED IGNITION SWITCH OUTPUT
