Relay Control Module C Connector End View

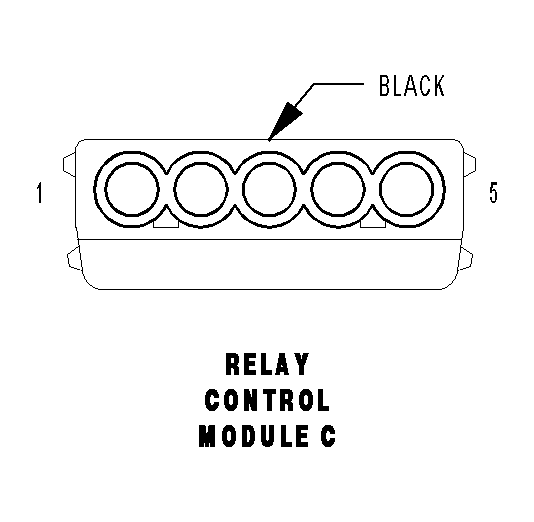

RELAY CONTROL MODULE C - BLACK 5 WAY

GCZH580210Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 - -
2 - -
3 - -
4 18RD/YL TRACTION SYSTEM RELAY OUTPUT
5 18RD/DG TRACTION SYSTEM RELAY OUTPUT
