Relay Control Module D Connector End View

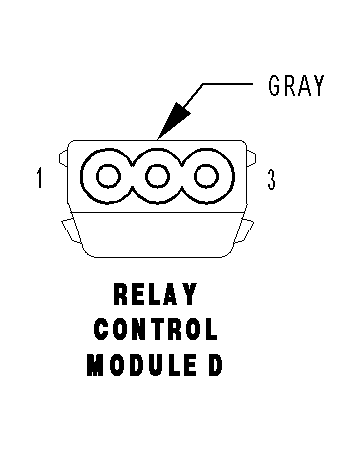

RELAY CONTROL MODULE D - GRAY 3 WAY

GCZH580211Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 20YL HORN RELAY CONTROL
2 18PK/RD FUSED IGNITION SWITCH OUTPUT
3 - -
