Sentry Key Remote Entry Module Connector End View (C2)

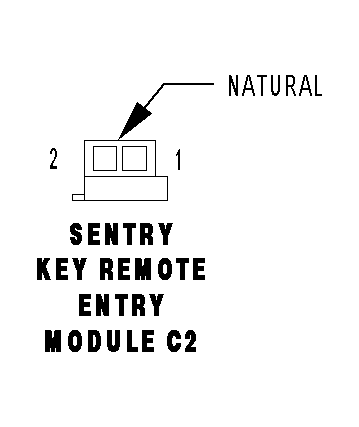

SENTRY KEY REMOTE ENTRY MODULE C2 - NATURAL 2 WAY

GCZH580237Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 22DG CAN C BUS (-)
2 22WT CAN C BUS (+)
